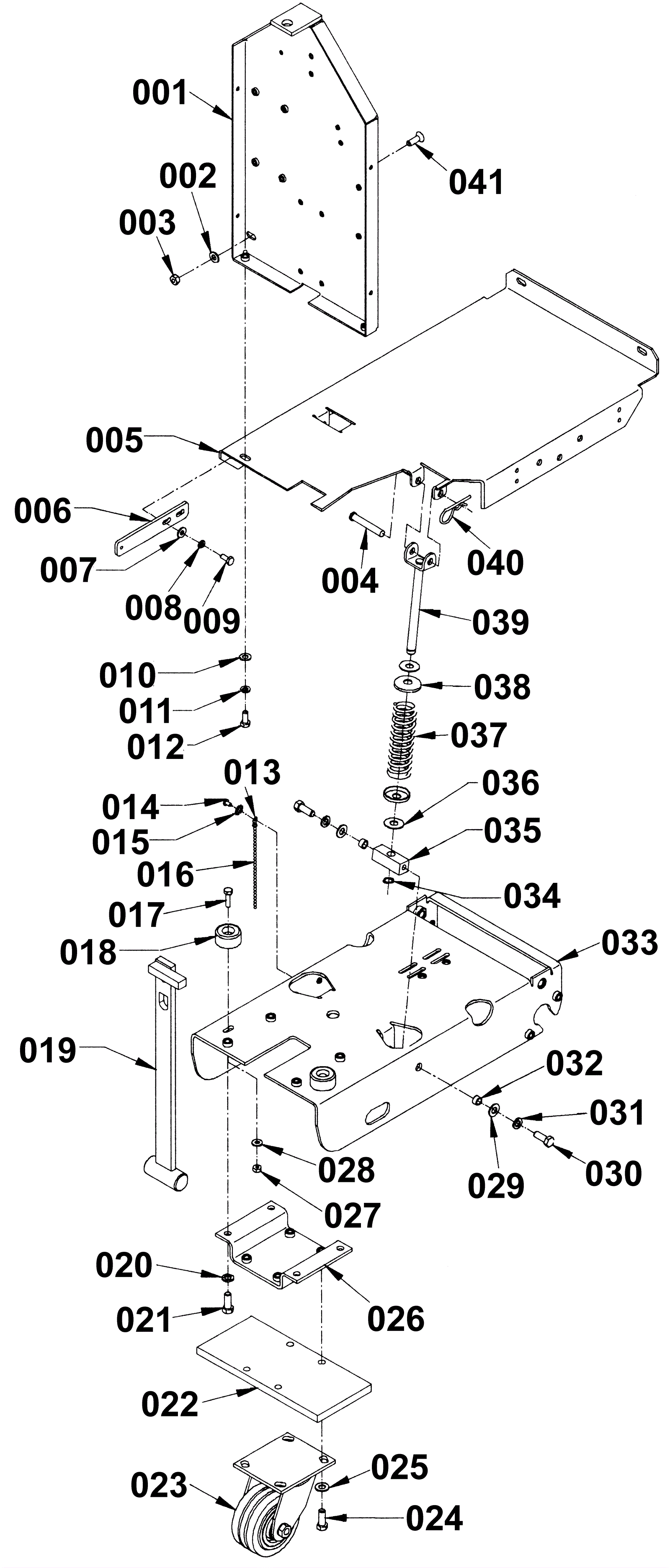

Base Assembly

#PartDescription ReqNotesAvailability
001 164-6461 Frame weldment (OBSOLETE) 1
002 999-0024 Washer 5/16 flat stainless steel 2
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
004 164-9023 Clevis pin 2 (onboard charger models)
005 164-6423 Base plate 1
006 164-7910 Hinge plate (OBSOLETE) 2 (onboard charger models)
007 999-0123 Washer 1/4 SAE flat zinc plated 4 (onboard charger models)
008 999-0060 Washer 1/4 split lock plain finish 4 (onboard charger models)
009 999-0017 Washer 1/4 external star lock 4 (onboard charger models)
010 999-0024 Washer 5/16 flat stainless steel 2
011 999-0028 Washer 5/16 split lock plain finish 2
012 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
013 164-1502 End coupling 1
014 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel 1
015 999-0311 Washer #10 external star lock zinc plated 1
016 164-1503 8 inch round bead chain 1 ft
017 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
018 164-0969 Rubber stop 2
019 164-6282 Catch assembly 1
020 999-0034 Washer 3/8 split lock plain finish 4
021 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4
022 164-6457 Caster block 1
023a 991-2006 Caster wheel assembly (red) 1
023b 991-2008 4 inch caster wheel with bearings (red) 1
024a 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 4 (onboard charger models)
024b 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4 (non onboard charger models)
025a 999-0034 Washer 3/8 split lock plain finish 4 (onboard charger models)
025b 164-0941 Washer 13/32 x 13/16 4 (non onboard charger models)
026 164-6429 Caster wheel mount (OBSOLETE) 1
027 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
028 999-0123 Washer 1/4 SAE flat zinc plated 2
029 164-0941 Washer 13/32 x 13/16 4 (onboard charger models)
030 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4 (onboard charger models)
031 999-0034 Washer 3/8 split lock plain finish 4 (onboard charger models)
032 164-0151 Spacer 4 (onboard charger models)
033 164-6430 Frame 1
034 164-0106 Retaining ring 2 (onboard charger models)
035 164-7991 Pivot 2 (onboard charger models)
036 164-5168 Flat nylon washer 4 (onboard charger models)
037 164-7912 Compression spring 2 (onboard charger models)
038 164-2915 Spring guard 4 (onboard charger models)
039 164-7911 Spring guide 2 (onboard charger models)
040 164-1508 Cotter hair pin 2 (onboard charger models)
041 999-0536 Screw 5/16-18 x 1 flat head socket plain finish 2
