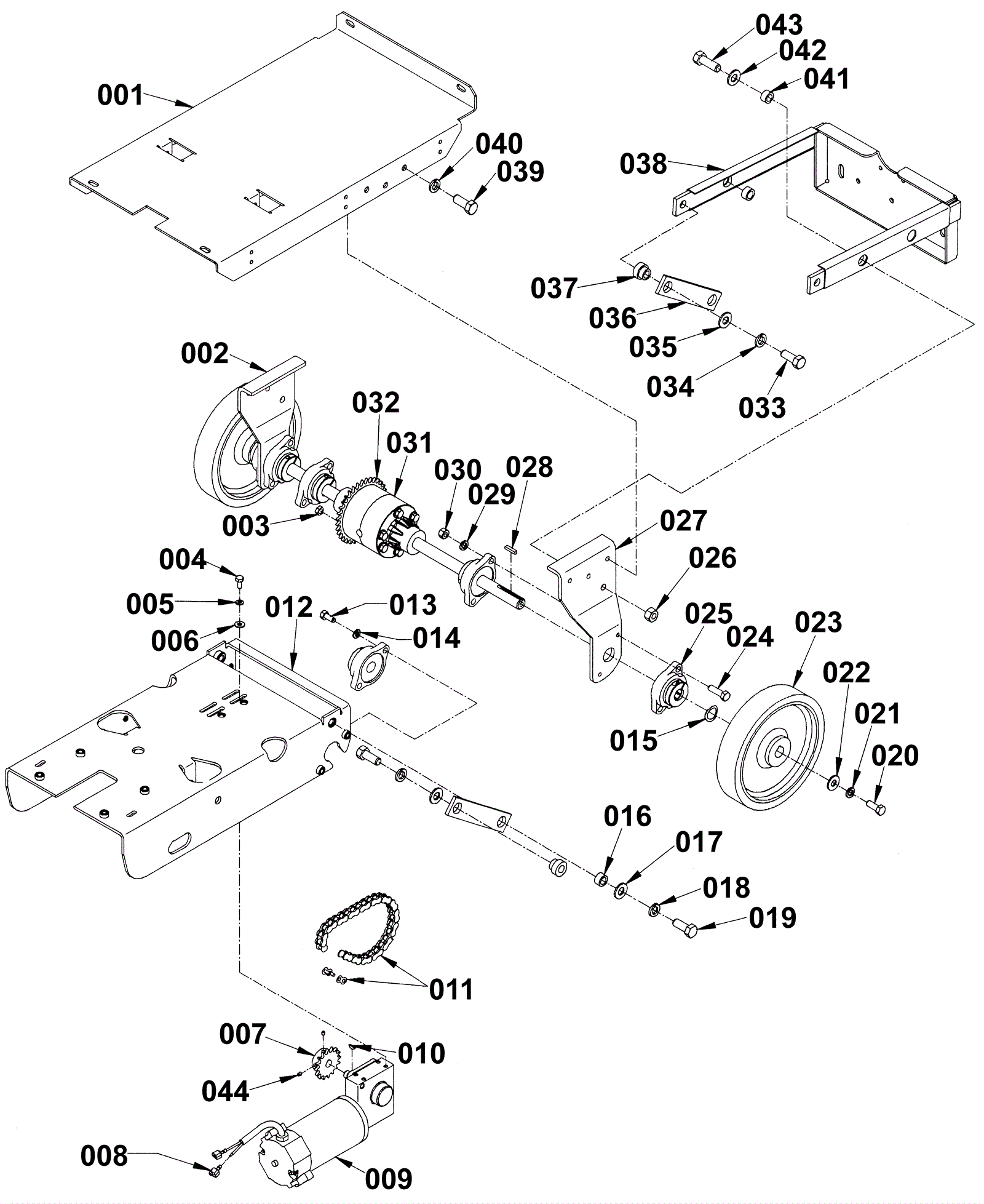

Drive Assembly

#PartDescription ReqNotesAvailability
001 164-6423 Base plate 1
002 164-6440 Base leg charger WD-left (OBSOLETE) 1
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 4
004 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
005 999-0060 Washer 1/4 split lock plain finish 4
006 999-0123 Washer 1/4 SAE flat zinc plated 4
007 164-6463 Sprocket (40BS12H) 1 (includes 044)
008 164-4644 Female terminal 2 (onboard charger models)
008b 164-0553 Male push on coupler 2 (non onboard charger models)
009 164-1577 36V drive motor 1
010a 164-7913 Woodruff key 1 (onboard charger models)
010b 164-6780 Steel woodruff key 1/8 x 1/2 (pkg of 2) 1 (non onboard charger models)
011a 991-0101 Chain (sold by the link) 1
011b 991-0103 Master link 1
011c 164-6464 #40 roller chain-33 link-no master 1
012 164-6430 Frame 1
013a 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4 (onboard charger models)
013b 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 4 (non onboard charger models)
014 999-0034 Washer 3/8 split lock plain finish 4
015a 164-3117 Curved spring washer 2 (onboard charger models)
015b 164-6822 Washer 3/4 x 1 1/4 x 23/32 thick flat (OBSOLETE) 2 (non onboard charger models)
016 164-0841 Bushing 2
017 999-0114 Washer 1/2 SAE flat 2
018 999-0126 Washer 1/2 split lock 2
019 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
020 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
021 999-0028 Washer 5/16 split lock plain finish 2
022 999-0033 Washer 7/16 SAE flat 2
023 164-1579 9 inch drive wheel (traction driven only) 2
024a 164-7914 Screw 3/8-16 x 1 3/4 socket cap 4 (onboard charger models)
024b 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 4 (non onboard charger models)
025 164-1580 Pillow block bearing with grip-it bearing ring 6
026 999-0118 Nut 1/2-13 nylon insert lock zinc plated 2
027 164-1639 Battery box 1
028a 164-7915 Square key 2 (onboard charger models)
028b 164-0059 Square keyway 2 (non onboard charger models)
029 999-0034 Washer 3/8 split lock plain finish 4
030 999-0247 Nut 3/8-16 hex jam plain finish 4
031 164-6426 Differential-short 1
032 164-6462 Sprocket (40A26) 1
033 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
034 999-0126 Washer 1/2 split lock 2
035 999-0114 Washer 1/2 SAE flat 2
036 164-6281 Lifting arm 2
037 164-3770 Spacer 2
038 164-3052 Pivot weldment 1
039 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 6
040 999-0034 Washer 3/8 split lock plain finish 6
041 164-0841 Bushing 2
042 999-0114 Washer 1/2 SAE flat 2
043 999-0200 Bolt 1/2-13 x 1 1/4 hex head 2
044a 999-0095 Screw 1/4-20 x 3/8 cup point socket set alloy plain finish 2 (onboard charger models)
044b 999-0448 Screw 10-24 x 1/4 cup point socket set alloy plain finish 2 (non onboard charger models)
