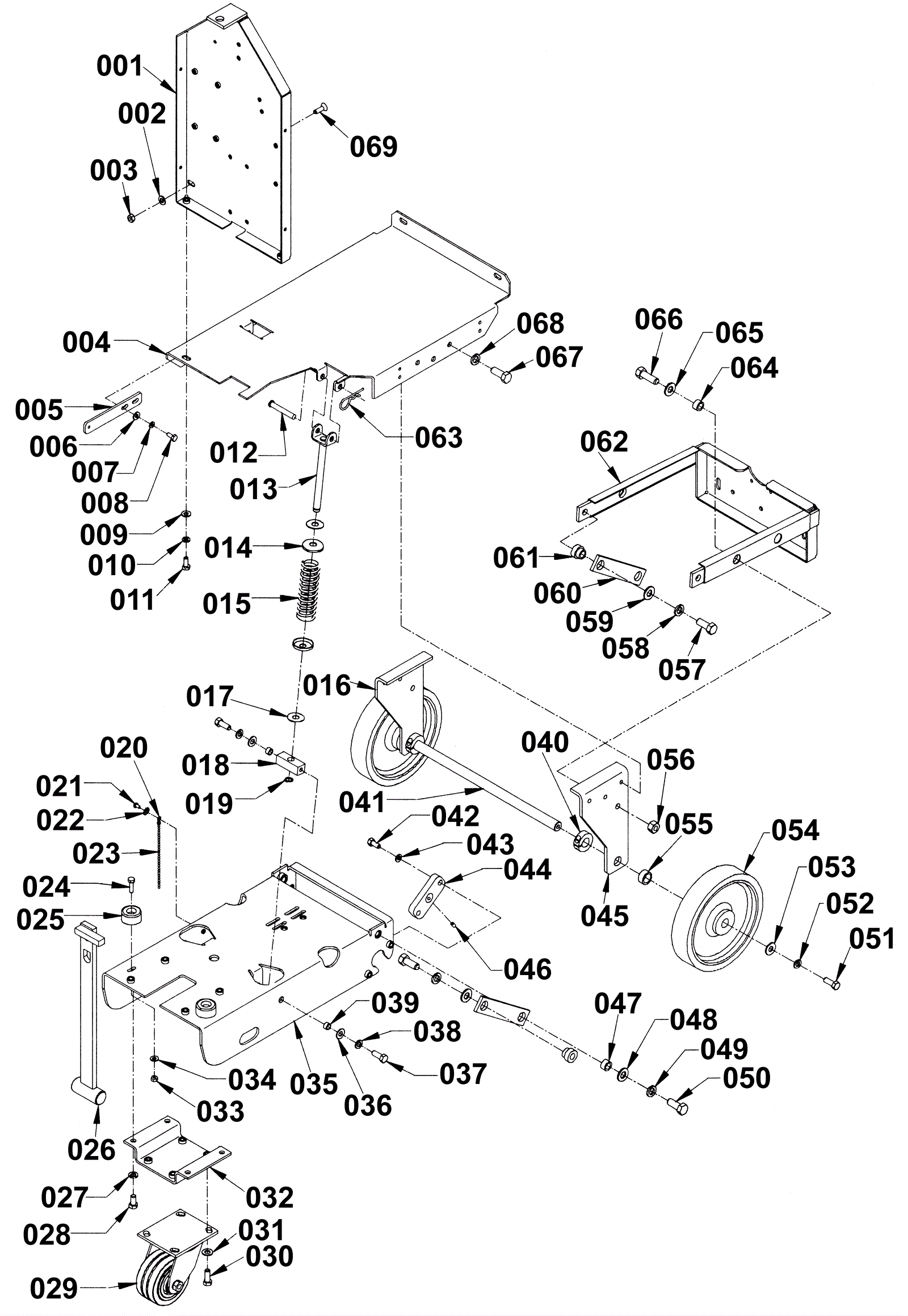

CHARGER 2025AB Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 164-6461 Frame weldment (OBSOLETE) $190.47 1 usually ships 18-33 days
002 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
003 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
004 164-6423 Base plate $140.25 1 usually ships 1-5 days
005 164-7910 Hinge plate (OBSOLETE) $24.98 2 (onboard charger models) usually ships 1-5 days
006 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 (onboard charger models) ships same day
007 999-0060 Washer 1/4 split lock plain finish $0.99 4 (onboard charger models) ships same day
008 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 (onboard charger models) ships same day
009 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
010 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
011 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
012 164-9023 Clevis pin $2.77 2 (onboard charger models) usually ships 18-33 days
013 164-7911 Spring guide $41.58 2 (onboard charger models) usually ships 1-5 days
014 164-2915 Spring guard $10.75 4 (onboard charger models) usually ships 18-33 days
015 164-7912 Compression spring $12.27 2 (onboard charger models) usually ships 1-5 days
016 164-6438 Left bracket $45.16 1 usually ships 1-5 days
017 164-5168 Flat nylon washer $2.71 4 (onboard charger models) ships same day
018 164-7991 Pivot $30.70 2 (onboard charger models) usually ships 18-33 days
019 164-0106 Retaining ring $2.96 1 (onboard charger models) ships same day
020 164-1502 End coupling $2.57 1 usually ships 1-5 days
021 999-0645 Screw 10-24 x 3/8 round head phillips stainless steel $0.99 1 ships same day
022 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
023 164-1503 8 inch round bead chain $3.04 1 ft usually ships 1-5 days
024 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
025 164-0969 Rubber stop $5.50 2 usually ships 1-5 days
026 164-6282 Catch assembly $199.82 1 usually ships 18-33 days
027 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
028 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
029a 991-2006 Caster wheel assembly (red) $65.16 1 ships same day
029b 991-2008 4 inch caster wheel with bearings (red) $32.84 1 ships same day
030 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
031 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
032 164-6429 Caster wheel mount (OBSOLETE) $47.14 1 usually ships 1-5 days
033 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
034 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
035 164-6430 Frame $201.30 1 usually ships 18-33 days
036 164-0941 Washer 13/32 x 13/16 $5.89 4 (onboard charger models) ships same day
037 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 (onboard charger models) ships same day
038 999-0034 Washer 3/8 split lock plain finish $1.82 4 (onboard charger models) ships same day
039 164-0151 Spacer $3.70 4 (onboard charger models) usually ships 18-33 days
040 164-6273 Shaft collar $17.00 2 (onboard charger models) usually ships 18-33 days
041 164-3046 Axle $68.92 1 usually ships 1-5 days
042 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
043 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
044 164-6441 Axle block $41.36 2 usually ships 1-5 days
045 164-6437 Right bracket $45.16 1 usually ships 1-5 days
046 999-0448 Screw 10-24 x 1/4 cup point socket set alloy plain finish $0.99 2 ships same day
047 164-0841 Bushing $5.50 2 usually ships 18-33 days
048 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
049 999-0126 Washer 1/2 split lock $1.28 2 ships same day
050 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 2 ships same day
051 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 ships same day
052 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
053 164-0941 Washer 13/32 x 13/16 $5.89 2 ships same day
054a 164-0029 8 inch wheel with bearings $281.33 2 ships same day
054b 991-9191 8"x1 5/8" RUBBER WHEEL W/3/4 BRGS $69.49 2 (NON-OEM) usually ships 14-21 days
055 164-3044 Wheel spacer $9.90 2 usually ships 18-33 days
056 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
057 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 2 ships same day
058 999-0126 Washer 1/2 split lock $1.28 2 ships same day
059 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
060 164-6281 Lifting arm $56.43 2 usually ships 1-5 days
061 164-3770 Spacer $17.33 2 usually ships 1-5 days
062 164-3052 Pivot weldment $193.22 1 usually ships 1-5 days
063 164-1508 Cotter hair pin $1.72 2 (onboard charger models) usually ships 18-33 days
064 164-0841 Bushing $5.50 2 usually ships 18-33 days
065 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
066 999-0200 Bolt 1/2-13 x 1 1/4 hex head $3.45 2 ships same day
067 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 6 ships same day
068 999-0034 Washer 3/8 split lock plain finish $1.82 6 ships same day
069 999-0536 Screw 5/16-18 x 1 flat head socket plain finish $0.99 4 ships same day
