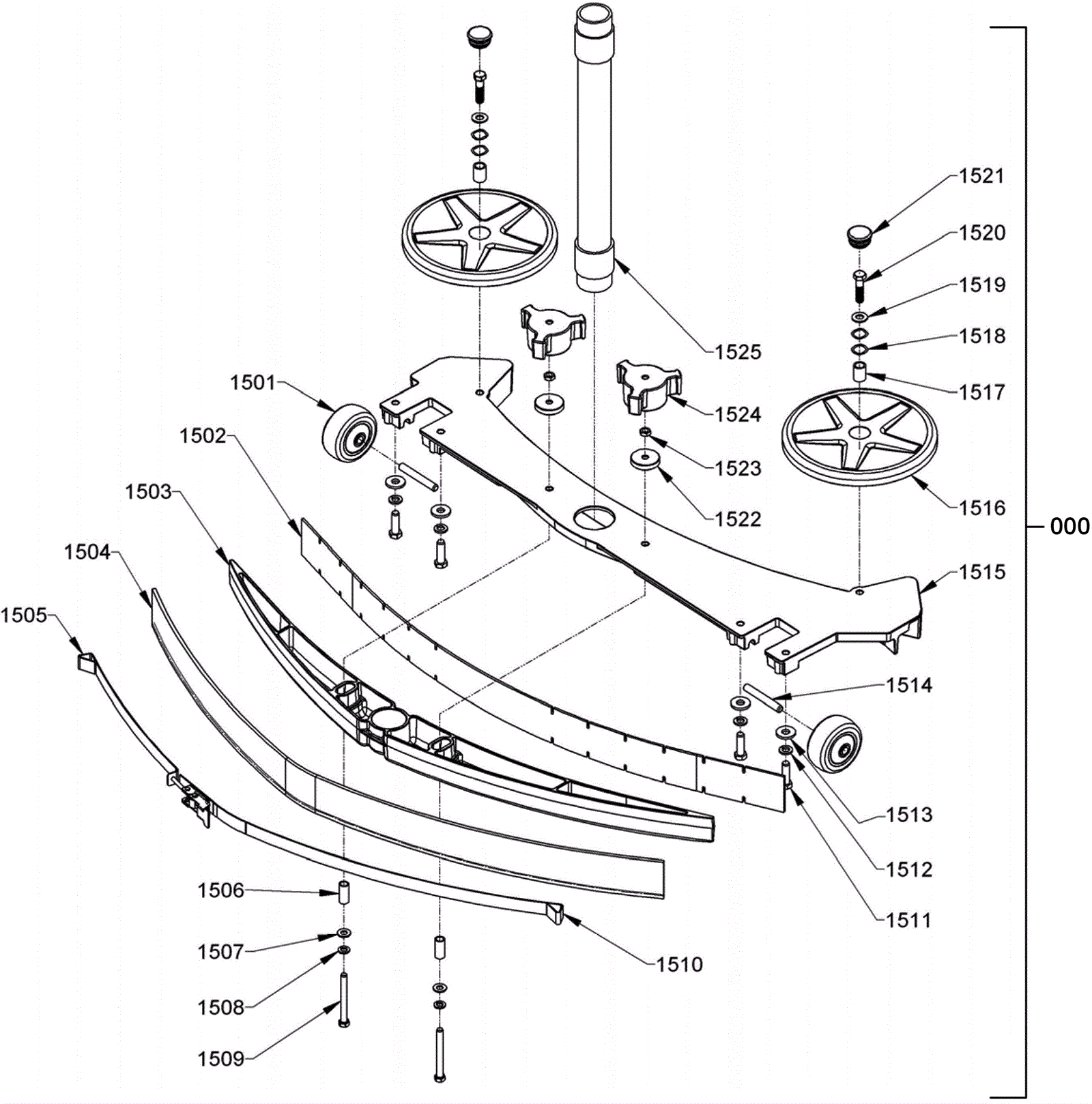

| # | Part | Description | Price | Req | Notes | Availability |
|---|
000 |
264-0275
|
Complete squeegee assembly |
Call for price
|
1 |
(includes 1501-1524) |
usually ships 17-22 days |
1501 |
164-9910
|
Wheel assembly |
$13.02
|
2 |
|
usually ships 17-22 days |
1502 |
164-8743
|
Squeegee blade front 36 inch linard |
$46.35
|
1 |
|
usually ships 17-22 days |
1503 |
264-0276
|
Squeegee insert |
$121.92
|
1 |
|
usually ships 17-22 days |
1504a |
164-8744
|
Squeegee blade rear 38.6 inch linatex |
$73.92
|
1 |
|
usually ships 17-22 days |
1504b |
164-8745
|
Squeegee blade rear 38.6 inch urethane |
$148.92
|
1 |
(optional urethane material) |
usually ships 17-22 days |
1505 |
264-0277
|
Hook side squeegee strap |
$55.08
|
1 |
|
usually ships 17-22 days |
1506 |
264-0278
|
Spacer |
$6.28
|
2 |
|
usually ships 17-22 days |
1507 |
164-9775
|
Washer (pkg of 10) |
$9.63
|
2 |
|
usually ships 17-22 days |
1508 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
2 |
|
ships same day |
1509 |
999-1132
|
Bolt 5/16-18 x 3 hex head stainless steel |
$2.19
|
2 |
|
ships same day |
1510 |
264-0279
|
Latch side squeegee strap |
$220.21
|
1 |
|
usually ships 17-22 days |
1511 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
$1.21
|
4 |
|
ships same day |
1512 |
999-0034
|
Washer 3/8 split lock plain finish |
$1.82
|
4 |
|
ships same day |
1513 |
999-0033
|
Washer 7/16 SAE flat |
$0.99
|
4 |
|
ships same day |
1514 |
264-0280
|
Squeegee wheel axle |
$2.70
|
2 |
|
usually ships 17-22 days |
1515 |
264-0281
|
Squeegee housing |
$148.41
|
1 |
|
usually ships 17-22 days |
1516 |
264-1001
|
Squeegee bumper wheel |
$13.02
|
2 |
|
usually ships 17-22 days |
1517 |
264-0282
|
Bumper wheel bushing |
$4.36
|
2 |
|
usually ships 17-22 days |
1518 |
264-0283
|
Screw wave washer |
$2.39
|
4 |
|
usually ships 17-22 days |
1519 |
164-0941
|
Washer 13/32 x 13/16 |
$7.38
|
2 |
|
ships same day |
1520 |
999-0350
|
Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
1521 |
264-0284
|
Hole plug |
$2.70
|
2 |
|
usually ships 17-22 days |
1522 |
264-0285
|
Squeegee mount bobbin |
$10.33
|
2 |
|
usually ships 17-22 days |
1523 |
999-1019
|
Nut 5/16-18 hex jam stainless steel |
$0.99
|
2 |
|
ships same day |
1524 |
264-0286
|
Squeegee knob |
$14.95
|
2 |
|
usually ships 17-22 days |
1525 |
164-9474
|
17 inch hose with cuff |
$37.55
|
1 |
|
usually ships 17-22 days |
