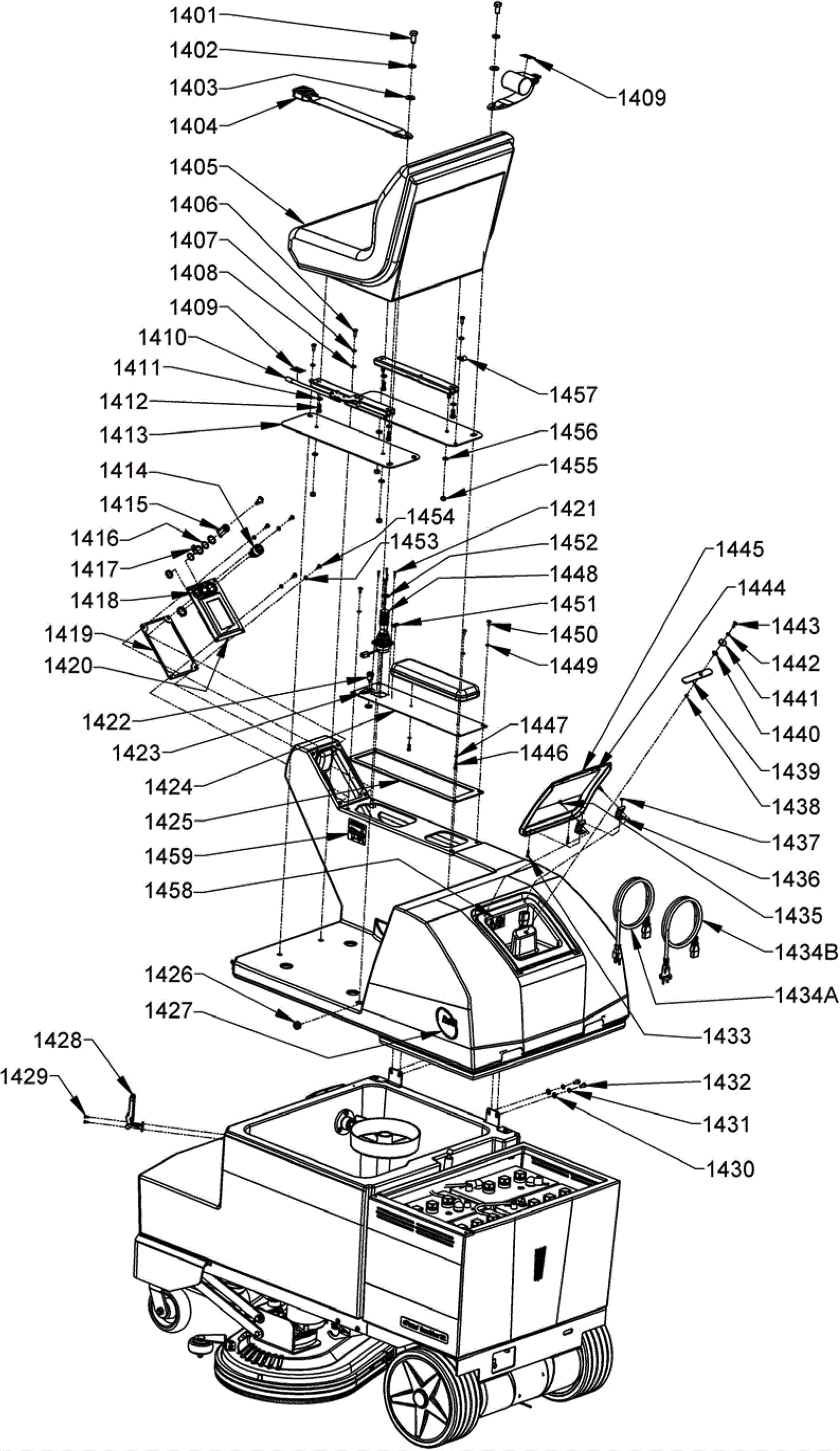

eForce Scrubber Upper Body Assembly

#PartDescriptionPriceReqNotesAvailability
1401 999-0561 Bolt 1/2-13 x 1 hex head stainless steel $3.28 2 ships same day
1402 164-9071 Lock washer (pkg of 5) $5.89 2 usually ships 18-33 days
1403 164-9072 Flat washer (pkg of 5) $6.33 2 usually ships 18-33 days
1404 164-6893 Seat belt $74.03 1 usually ships 18-33 days
1405a 164-1630 Seat $463.93 1 usually ships 18-33 days
1405b 164-9268 Seat switch twist mount $68.04 1 usually ships 18-33 days
1406 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
1407 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
1408 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
1409 164-6892 Seat belt touch point decal $8.42 1 usually ships 18-33 days
1410 164-6894 Seat slide adjustment kit $194.21 1 (includes 1412) usually ships 18-33 days
1411 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
1412 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 4 ships same day
1413 264-0257 Seat mounting plate Call for price 2 usually ships 1-5 days
1414 164-6878 Emergency stop switch $113.38 1 usually ships 18-33 days
1415a 164-1660 Key switch and key $28.47 1 ships same day
1415b 164-7987 Key (set of 2) $21.77 1 usually ships 18-33 days
1416 264-0258 Key switch gasket Call for price 2 usually ships 1-5 days
1417 264-0259 Key switch cover Call for price 1 usually ships 1-5 days
1418 164-6879 ON/OFF decal $17.93 1 usually ships 18-33 days
1419 264-0260 Touch screen plate gasket Call for price 1 usually ships 1-5 days
1420 164-7818 Touch pad control assembly $725.40 1 usually ships 18-33 days
1421 164-6891 Screw #4 x 3/8 pan head phillips (pkg of 10) $5.89 4 usually ships 18-33 days
1422 264-0261 Momentary switch Call for price 1 usually ships 1-5 days
1423 264-0262 Maximum output button decal Call for price 1 usually ships 1-5 days
1424 164-6875 Joystick and arm rest plate $38.45 1 usually ships 18-33 days
1425 264-0263 Joystick and arm rest plate gasket Call for price 1 usually ships 1-5 days
1426 264-0264 Thick panel grommet Call for price 1 usually ships 1-5 days
1427 164-9776 NSS logo decal $23.38 2 usually ships 18-33 days
1428 164-6302 Latch with keeper $58.15 1 usually ships 18-33 days
1429 164-5039 Screw (pkg of 3) $5.89 2 ships same day
1430 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
1431 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
1432 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
1433 264-0265 Grip pop rivet Call for price 2 usually ships 1-5 days
1434a 164-6477 Onboard charger extension cord $27.67 1 usually ships 18-33 days
1434b 164-9043 240V onboard charger cord $74.26 1 ships same day
1435 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 2 ships same day
1436 164-9865 Strap $5.50 2 usually ships 18-33 days
1437 164-6785 Washer 5/32 x 1/2 steel zinc plated $5.89 2 usually ships 18-33 days
1438 264-0266 Screw #10 nylon spacer (pkg of 5) Call for price 1 usually ships 1-5 days
1439 264-0267 Cord wrap Call for price 1 usually ships 1-5 days
1440 264-0268 Wave washer (pkg of 2) Call for price 1 usually ships 1-5 days
1441 264-0269 Washer #10 oversized flat (pkg od 2) Call for price 1 usually ships 1-5 days
1442 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
1443 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 1 ships same day
1444 264-0270 Open top charging decal Call for price 1 usually ships 1-5 days
1445 264-0271 Trunk lid Call for price 1 usually ships 1-5 days
1446 999-0057 Screw 10-32 x 5/8 round head slotted zinc plated $0.99 2 ships same day
1447 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
1448 164-6877 Joystick $810.59 1 usually ships 18-33 days
1449 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
1450 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 4 ships same day
1451 264-0272 Maximum incline decal Call for price 1 usually ships 1-5 days
1452 164-6876 Small touch point decal $10.01 1 usually ships 18-33 days
1453 999-0311 Washer #10 external star lock zinc plated $0.99 4 ships same day
1454 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 4 ships same day
1455 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
1456 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
1457 164-3243 P clamp $3.96 1 usually ships 1-5 days
1458 264-0273 No liquids caution decal Call for price 1 usually ships 1-5 days
1459 164-6888 Use handle decal Call for price 1 usually ships 18-33 days
N/S 264-0274 Joystick with decal kit Call for price 1 (includes 1448, 1452) usually ships 1-5 days
