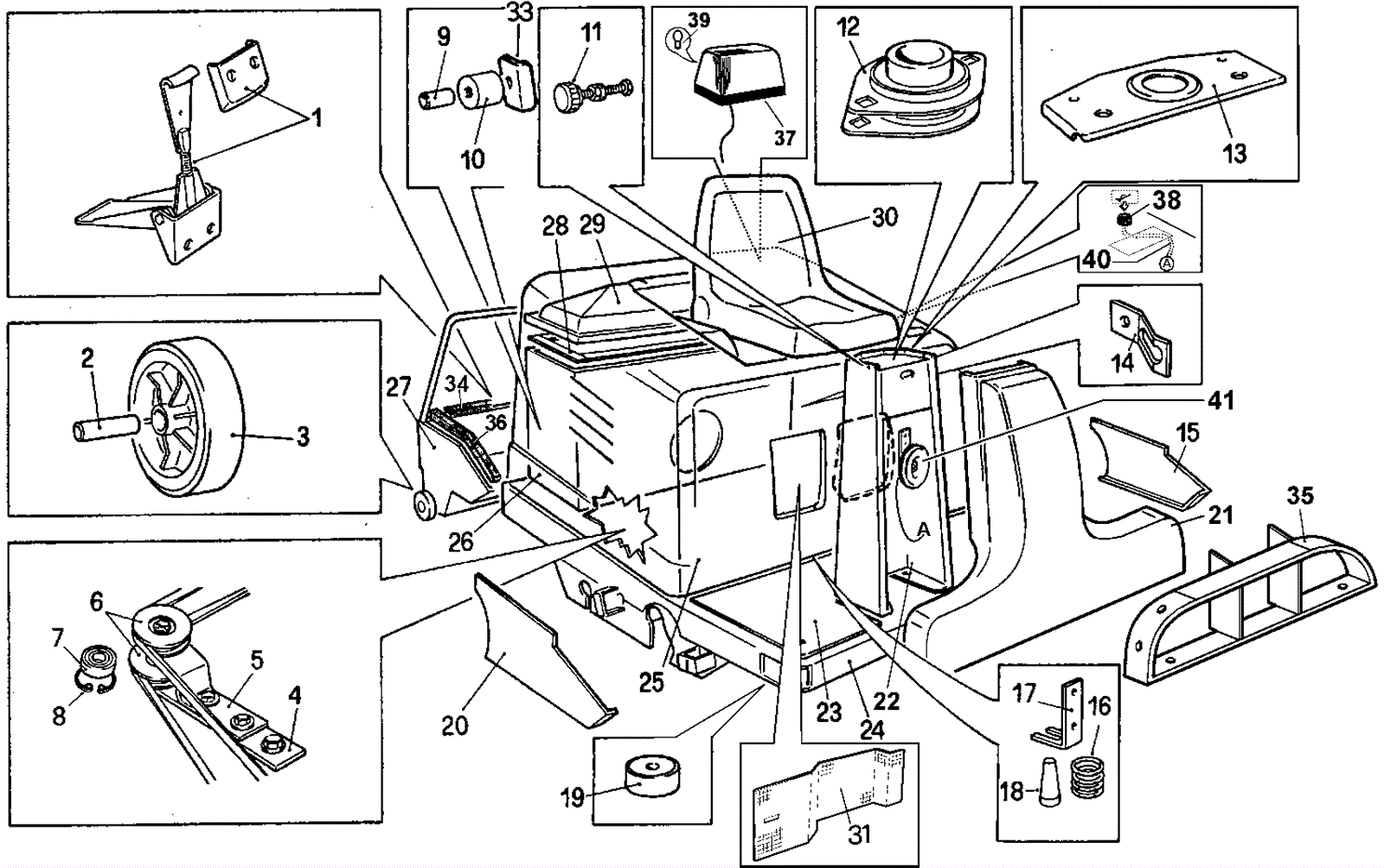

MANTA RS36 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 164-5363 Lever lock $142.25 1 usually ships 1-5 days
2 164-5364 Wheel spacer $50.59 2 usually ships 1-5 days
3 164-5365 Wheel $15.00 2 usually ships 1-5 days
4 164-5366 Belt tightener short plate (OBSOLETE) $103.02 1 usually ships 1-5 days
5 164-5367 Belt tightener short plate (OBSOLETE) $117.59 1 usually ships 1-5 days
6 164-5368 Pulley $87.77 2 usually ships 1-5 days
7 164-5369 Ball bearing $53.85 2 usually ships 1-5 days
8 164-5370 Stopping ring (OBSOLETE) $3.96 2 usually ships 1-5 days
9 N/A Not available Call for price 2 (bushing) usually ships 3-26 days
10 N/A Not available Call for price 2 (spacer) usually ships 3-26 days
11 164-5372 Knob Call for price 2 usually ships 1-5 days
12 164-5373 Support $56.16 1 usually ships 1-5 days
13 164-5374 Dashboard Call for price 1 usually ships 1-5 days
14 164-5375 Plate $42.05 2 usually ships 1-5 days
15 164-5376 Left cover Call for price 1 usually ships 1-5 days
16 164-5377 Spring $13.97 1 usually ships 1-5 days
17 164-5378 Angular- plate $42.00 1 usually ships 1-5 days
18 164-5379 Spring pin $36.10 1 usually ships 1-5 days
19 164-5380 Roller- bumper Call for price 2 usually ships 1-5 days
20 164-5381 Right cover (OBSOLETE) $77.28 1 usually ships 1-5 days
21 164-5382 Cover Call for price 1 usually ships 1-5 days
22 164-5383 Support steering wheel Call for price 1 usually ships 1-5 days
23 164-5384 Mat Call for price 1 usually ships 1-5 days
24 164-5385 Chassis Call for price 1 usually ships 1-5 days
25 164-5386 Motor hood $2,616.15 1 usually ships 1-5 days
26 164-5387 Filter compartment $944.61 1 usually ships 1-5 days
27 164-5388 Hopper $1,251.47 1 usually ships 1-5 days
28 164-5389 Band $80.20 84 in usually ships 1-5 days
29 164-5390 Filter cover (OBSOLETE) $208.12 1 usually ships 1-5 days
30 164-5391 Seat $542.18 1 usually ships 1-5 days
31 164-5392 Right protection guard $72.22 1 usually ships 1-5 days
33 164-5394 Reinforcement pulley Call for price 2 usually ships 1-5 days
34 164-5588 28 inch long gasket (OBSOLETE) $5.50 2 usually ships 1-5 days
35 164-5395 Cover support Call for price 1 usually ships 1-5 days
36 164-5589 20 inch long gasket (OBSOLETE) $4.22 2 usually ships 1-5 days
37 164-5578 Revolving light with buzzer & horn $513.92 1 usually ships 1-5 days
38 164-5580 Horn button $63.54 1 usually ships 1-5 days
39 164-5590 Bulb 24 volt-10 watts $31.75 1 usually ships 1-5 days
40 164-5556 Wiring-horn (OBSOLETE) $70.02 1 usually ships 1-5 days
41 164-5555 Horn Call for price 1 usually ships 1-5 days
