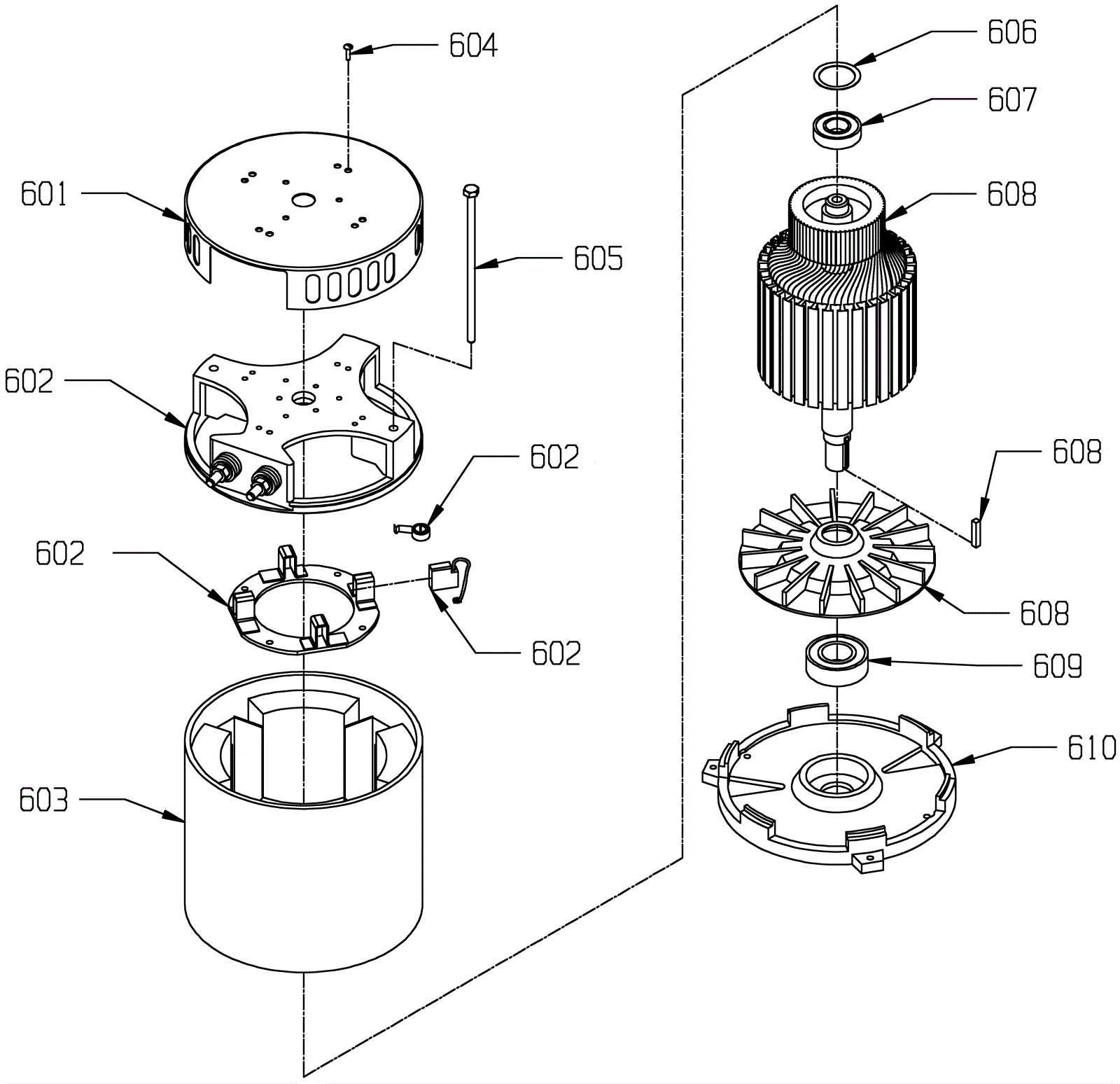

CHARGER 2716AB Motor Assembly

#PartDescriptionPriceReqNotesAvailability
601a 164-5309 Commutator bracket cover $89.10 1 usually ships 1-5 days
601b 164-6406 Commutator bracket assembly $392.76 1 (includes 602a thru 602d) usually ships 1-5 days
602a 164-6407 Commutator bracket $108.19 1 usually ships 8-23 days
602b 164-6413 Brush board assembly $288.92 1 usually ships 8-23 days
602c 164-6412 Spring $15.13 2 usually ships 8-23 days
602d 164-1560 Carbon brush (sold individually) $40.59 2 ships same day
603 164-6416 Stator frame assembly with magnets $403.26 1 usually ships 1-5 days
604 999-0572 Screw 10-24 x 1/2 pan head self-tapping zinc $0.99 4 ships same day
605 164-6415 Bolt 1/4-20 x 9 hex head thru (OBSOELTE) $3.10 2 usually ships 8-23 days
606 164-5310 Washer helical $5.08 1 usually ships 1-5 days
607 164-5291 Top end bearing $51.48 1 usually ships 8-23 days
608a 164-6417 Armature $1,023.33 1 (includes 608b, 608c) usually ships 1-5 days
608b 164-1326 Square keyway $5.89 1 ships same day
608c 164-6410 Aluminum fan $251.30 1 usually ships 1-5 days
609 164-5290 Bottom bearing $51.48 1 usually ships 8-23 days
610 164-6408 Bearing bracket $90.31 1 usually ships 1-5 days
N/S 164-6472 36V brush motor $1,176.12 1 (includes 601a, 601b, 602a, 602b, 602c, 602d) usually ships 8-23 days
