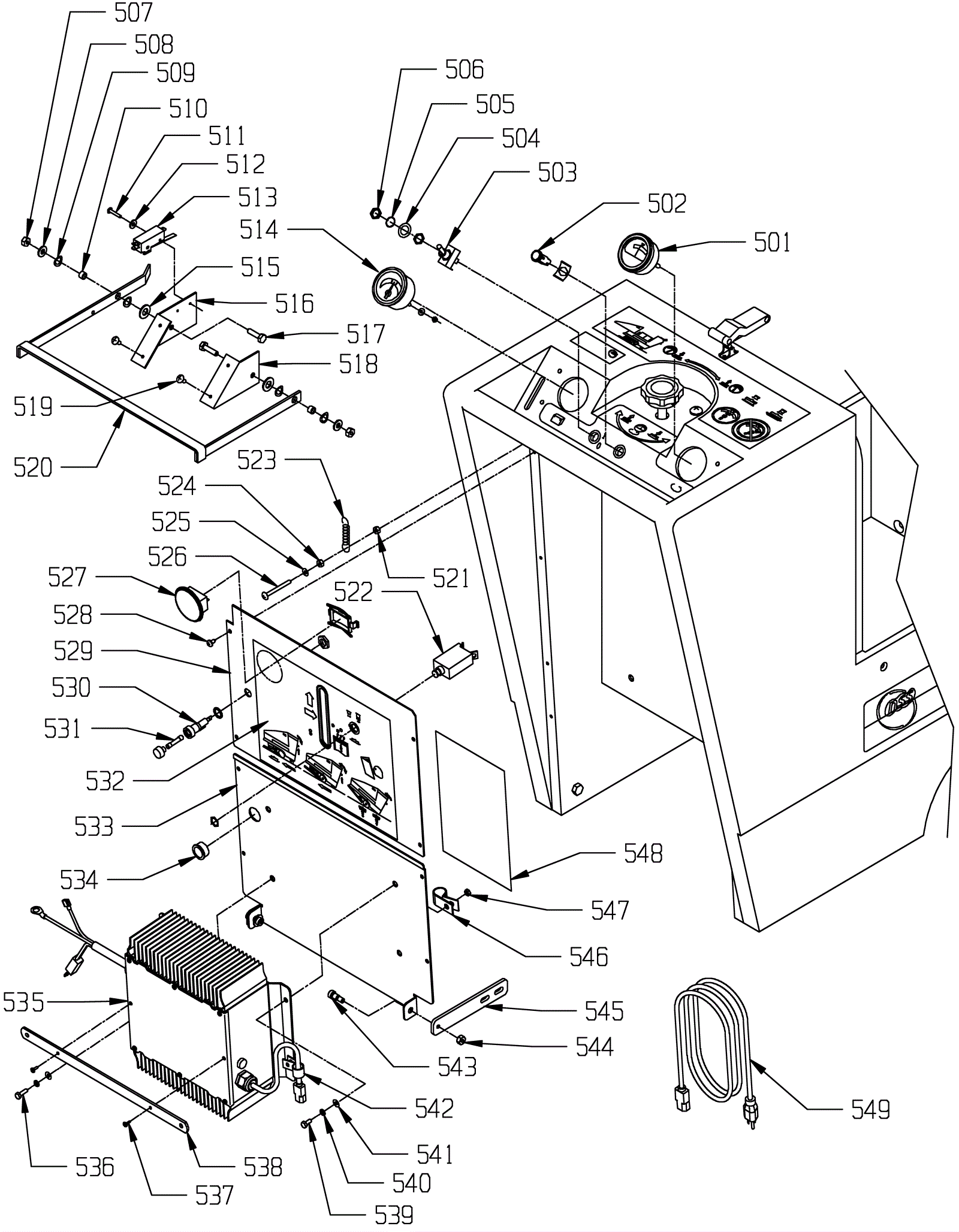

CHARGER 2716AB Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
501 164-0024 RPM meter $128.54 1 usually ships 1-5 days
502 164-0283 Indicator light with clip (green) $22.50 1 usually ships 8-23 days
503 164-0023 Toggle switch $19.97 1 ships same day
504 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
505 999-0260 Washer 1/2 internal starlock $0.99 1 ships same day
506 999-0186 Nut 5/8-11 nylon insert lock zinc plated $1.12 1 ships same day
507 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
508 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
509 164-0137 Washer 3/8 spring $5.89 4 usually ships 8-23 days
510 164-0136 Bushing $2.75 2 ships same day
511 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 2 ships same day
512 999-0364 Washer #6 internal star lock zinc plated $0.99 2 ships same day
513 164-0026 Snap switch $30.64 1 usually ships 8-23 days
514 164-0022 Battery meter $120.95 1 usually ships 1-5 days
515 164-0941 Washer 13/32 x 13/16 $5.89 2 ships same day
516 164-3764 Left switch plate (OBSOLETE) $14.52 1 usually ships 1-5 days
517 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
518 164-3765 Right switch plate (OBSOLETE) $15.24 1 usually ships 1-5 days
519 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 4 ships same day
520 164-3089 Handle $53.79 1 usually ships 1-5 days
521 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
522 991-1615 90amp circuit breaker $145.41 1 ships same day
523 164-0981 Spring $5.61 1 usually ships 8-23 days
524 999-0004 Nut 10-24 k-lock zinc plated $0.99 1 ships same day
525 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
526 999-0642 Screw 10-24 x 1 3/4 round head phillips stainless steel $0.99 1 ships same day
527 164-1451 Hour meter $114.59 1 usually ships 8-23 days
528 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 8 ships same day
529 164-7918 Upper rear panel $43.12 1 usually ships 1-5 days
530 164-1328 Fuse holder with nut and washer $15.79 1 ships same day
531 164-6480 4amp fuse $21.82 1 ships same day
532 164-6389 Pad position decal (OBSOLETE) $16.17 1 usually ships 1-5 days
533 164-7919 Lower rear panel $64.52 1 usually ships 1-5 days
534 164-1673 Snap bushing $2.70 1 ships same day
535 164-6476 36V onboard battery charger (OBSOLETE) $868.02 1 usually ships 1-5 days
536 999-1382 Screw 1/4-20 x 1 truss head phillips $1.16 1 ships same day
537 164-9112 Screw M3-.5 x 19mm pan head phillips (pkg of 5) $12.43 2 usually ships 1-5 days
538 164-9113 Cord wrap $25.08 1 usually ships 8-23 days
539 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 3 ships same day
540 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
541 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
542 164-3243 P clamp $3.96 1 usually ships 1-5 days
543 164-1171 Bolt 5/16 x 3/8 socket head shoulder $11.22 2 usually ships 8-23 days
544 164-6796 Nut 1/4-20 hex thin with nylok insert $6.34 2 usually ships 8-23 days
545 164-7910 Hinge plate (OBSOLETE) $24.98 2 usually ships 1-5 days
546 164-9118 P clamp $11.99 1 usually ships 11-24 days
547 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
548 164-7920 Wiring decal (OBSOLETE) $6.71 1 usually ships 1-5 days
549a 164-6477 Onboard charger extension cord $27.67 1 ships same day
