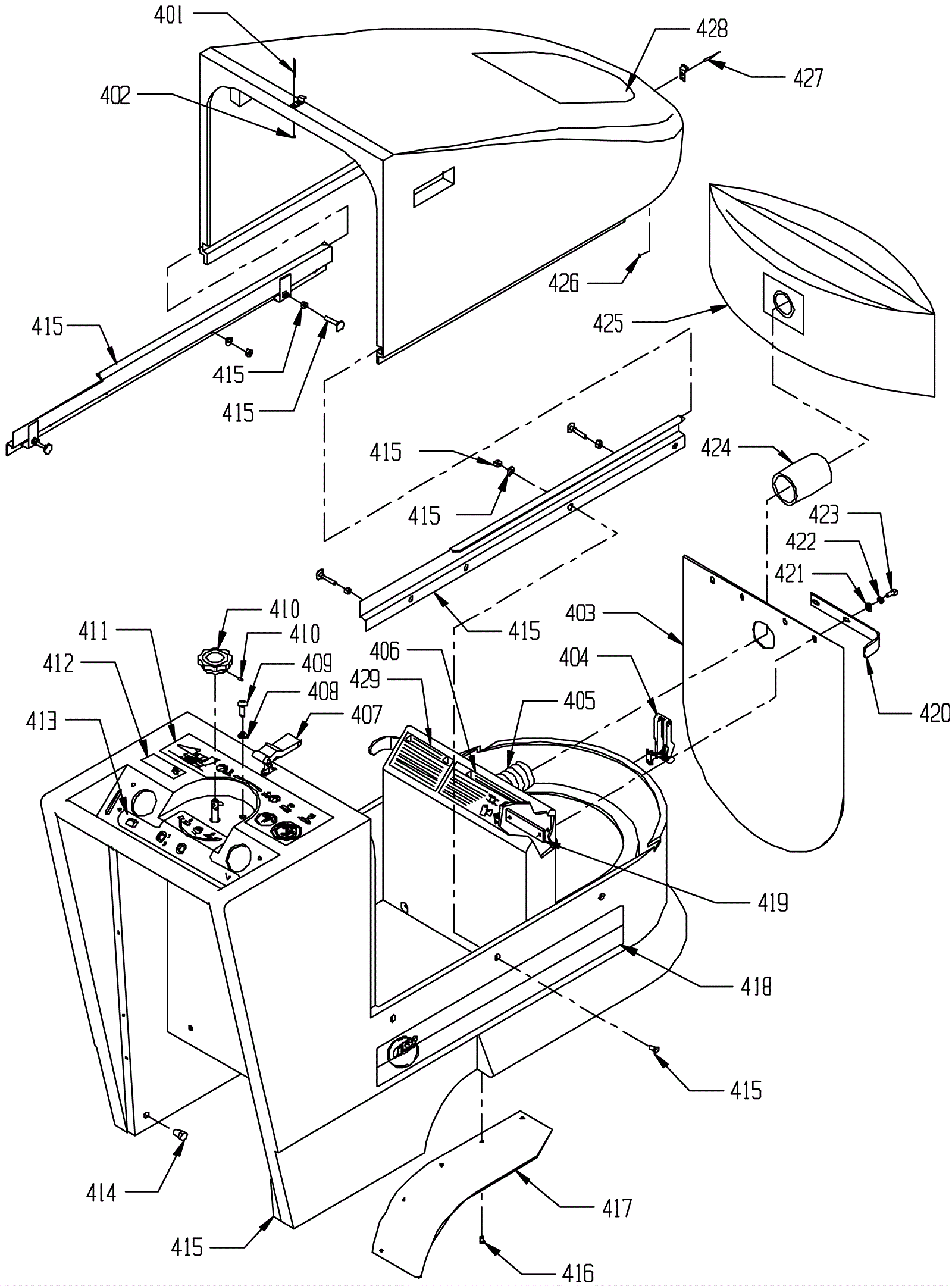

CHARGER 2716AB Housing Assembly

#PartDescriptionPriceReqNotesAvailability
401 164-6784 Pop rivet $5.89 4 usually ships 8-23 days
402 164-6785 Washer 5/32 x 1/2 steel zinc plated $5.89 4 usually ships 8-23 days
403 164-6373 Rubber motor cover (OBSOLETE) $24.81 1 usually ships 1-5 days
404 164-6302 Latch with keeper $58.15 1 usually ships 8-23 days
405 164-1418 Vacuum exhaust hose $38.78 1 usually ships 8-23 days
406 164-6443 Battery warning decal (OBSOLETE) $20.02 1 usually ships 1-5 days
407 164-6302 Latch with keeper $58.15 1 usually ships 8-23 days
408 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
409 999-0655 Screw 5/16-18 x 1 round head slotted zinc plated $0.99 2 ships same day
410a 164-3025 Knob $22.66 1 (includes 410b) usually ships 8-23 days
410b 164-6808 Screw 10 x 3/4 set cup $6.33 1 usually ships 8-23 days
411 164-6821 English/Spanish operation decal (OBSOLETE) $14.80 1 usually ships 1-5 days
412 164-6403 Charger 2716AB decal (OBSOLETE) $8.64 1 usually ships 1-5 days
413 164-6387 Panel decal (OBSOLETE) (OBSOLETE) $21.40 1 usually ships 8-23 days
414 164-6294 Plug (OBSOLETE) $2.11 2 usually ships 1-5 days
415a 164-6266 Charger housing with rails $682.88 1 (includes 415b thru 415h) usually ships 1-5 days
415b 164-6456 Left slide rail $55.83 1 usually ships 1-5 days
415c 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
415d 999-1380 Bolt 1/4-20 x 1 1/2 elevator zinc $0.99 4 ships same day
415e 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 6 ships same day
415f 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
415g 164-6455 Right slide rail $55.83 1 usually ships 1-5 days
415h 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated $0.99 6 ships same day
416 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 10 ships same day
417a 164-6372 Right fender $99.72 1 usually ships 1-5 days
417b 164-6371 Left fender $114.18 1 usually ships 1-5 days
418 164-6399 3330 side decal set (OBSOLETE) $23.16 2 usually ships 8-23 days
419 164-6306 Tapping plate (OBSOLETE) $11.48 2 usually ships 1-5 days
420 164-6303 Support bracket (OBSOLETE) $10.12 2 usually ships 1-5 days
421 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
422 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
423 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 ships same day
424 164-3049 2 inch cuff $23.98 1 usually ships 8-23 days
425a 164-0032 Paper bag (pkg of 5) $31.96 1 usually ships 8-23 days
425b 164-3111 Cloth vacuum bag $52.25 1 (optional) usually ships 8-23 days
426 164-6785 Washer 5/32 x 1/2 steel zinc plated $5.89 4 usually ships 8-23 days
427 164-6784 Pop rivet $5.89 4 usually ships 8-23 days
428 164-6388 Hood decal (OBSOLETE) $33.55 1 usually ships 1-5 days
429 164-7366 Onboard charger decal $5.78 1 usually ships 1-5 days
