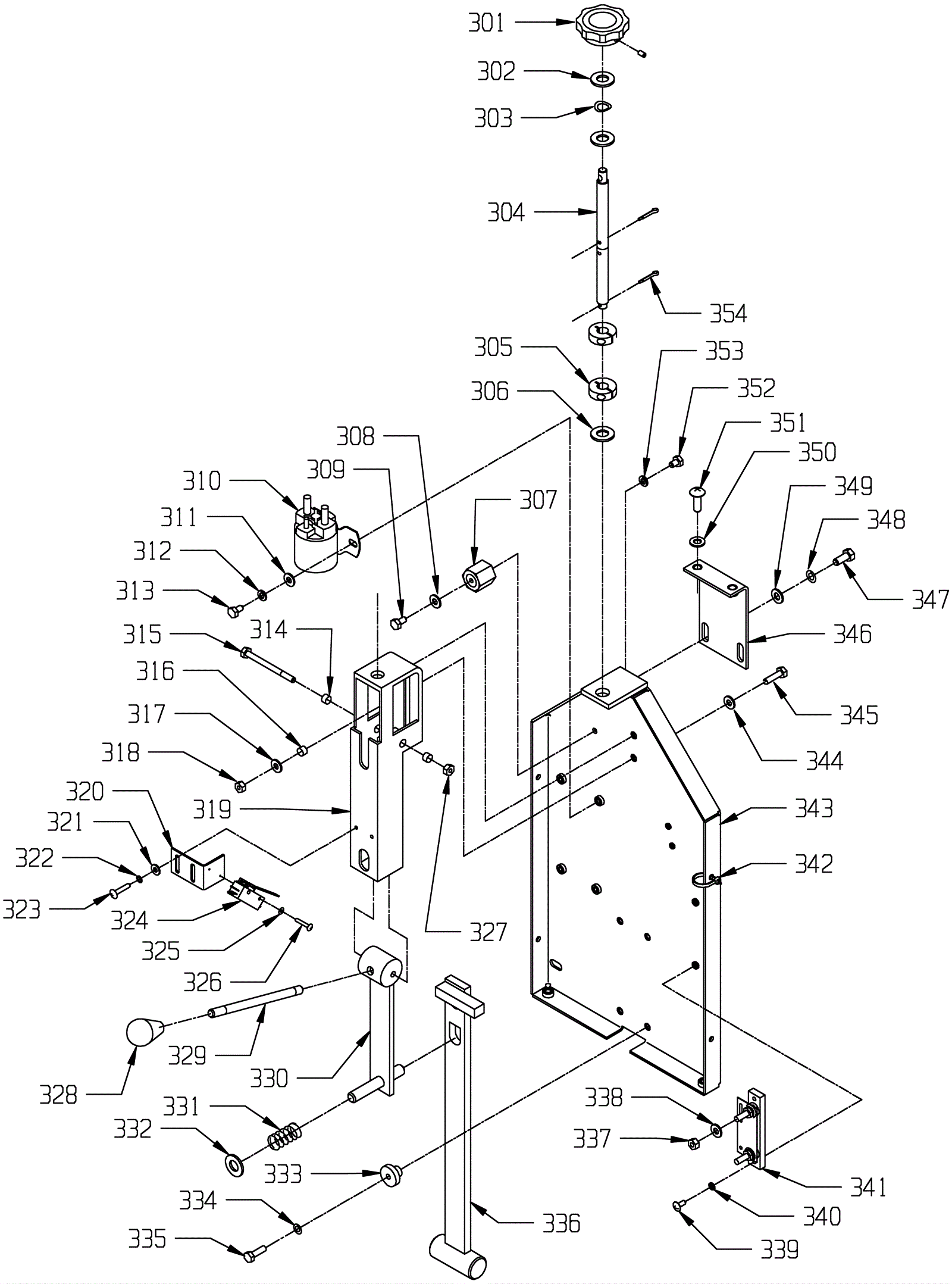

CHARGER 2716AB Frame Assembly

#PartDescriptionPriceReqNotesAvailability
301 164-3025 Knob $22.66 1 usually ships 8-23 days
302 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
303 164-5182 Washer 1/2 bowed $5.89 1 usually ships 8-23 days
304 164-6278 Adjustment rod $58.08 1 usually ships 1-5 days
305 164-6280 Collar $17.33 2 usually ships 1-5 days
306 164-0941 Washer 13/32 x 13/16 $5.89 1 ships same day
307 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
308 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
309 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
310 164-0027 36V solenoid contactor $213.61 1 usually ships 8-23 days
311 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
312 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
313 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
314 164-0136 Bushing $2.75 2 ships same day
315 999-0244 Bolt 1/4-20 x 2 1/2 hex head grade 5 zinc plated cap $0.99 1 ships same day
316 164-0136 Bushing $2.75 2 ships same day
317 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
318 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
319 164-6276 Adjustment bracket $168.41 1 usually ships 8-23 days
320 164-3031 Switch bracket $19.09 1 usually ships 8-23 days
321 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
322 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
323 164-9087 Screw 10-32 x 1/4 set cup point $6.33 2 usually ships 8-23 days
324 164-0026 Snap switch $30.64 1 usually ships 8-23 days
325 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
326 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 2 ships same day
327 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
328 164-3034 Knob $15.73 1 usually ships 8-23 days
329 164-3093 Handle latch $18.87 1 usually ships 1-5 days
330 164-6268 Latch assembly $143.06 1 usually ships 8-23 days
331 164-3022 Compression spring $6.60 1 usually ships 8-23 days
332 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
333 164-3032 Spacer guide $5.50 4 usually ships 8-23 days
334 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
335 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 4 ships same day
336 164-6282 Catch assembly $199.82 1 usually ships 8-23 days
337 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
338 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
339 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 2 ships same day
340 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
341 164-3029 Shunt $74.97 1 usually ships 8-23 days
342 164-4612 Wire tie $9.37 4 usually ships 8-23 days
343 164-6461 Frame weldment (OBSOLETE) $190.47 1 usually ships 8-23 days
344 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
345 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
346 164-3027 Top support bracket (OBSOLETE) $25.41 1 usually ships 1-5 days
347 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
348 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
349 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
350 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
351 999-0655 Screw 5/16-18 x 1 round head slotted zinc plated $0.99 2 ships same day
352 999-0361 Bolt 1/4-20 x 3/8 hex head grade 5 zinc $4.17 1 ships same day
353 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
354 164-0743 Cotter pin $6.16 3 usually ships 1-5 days
