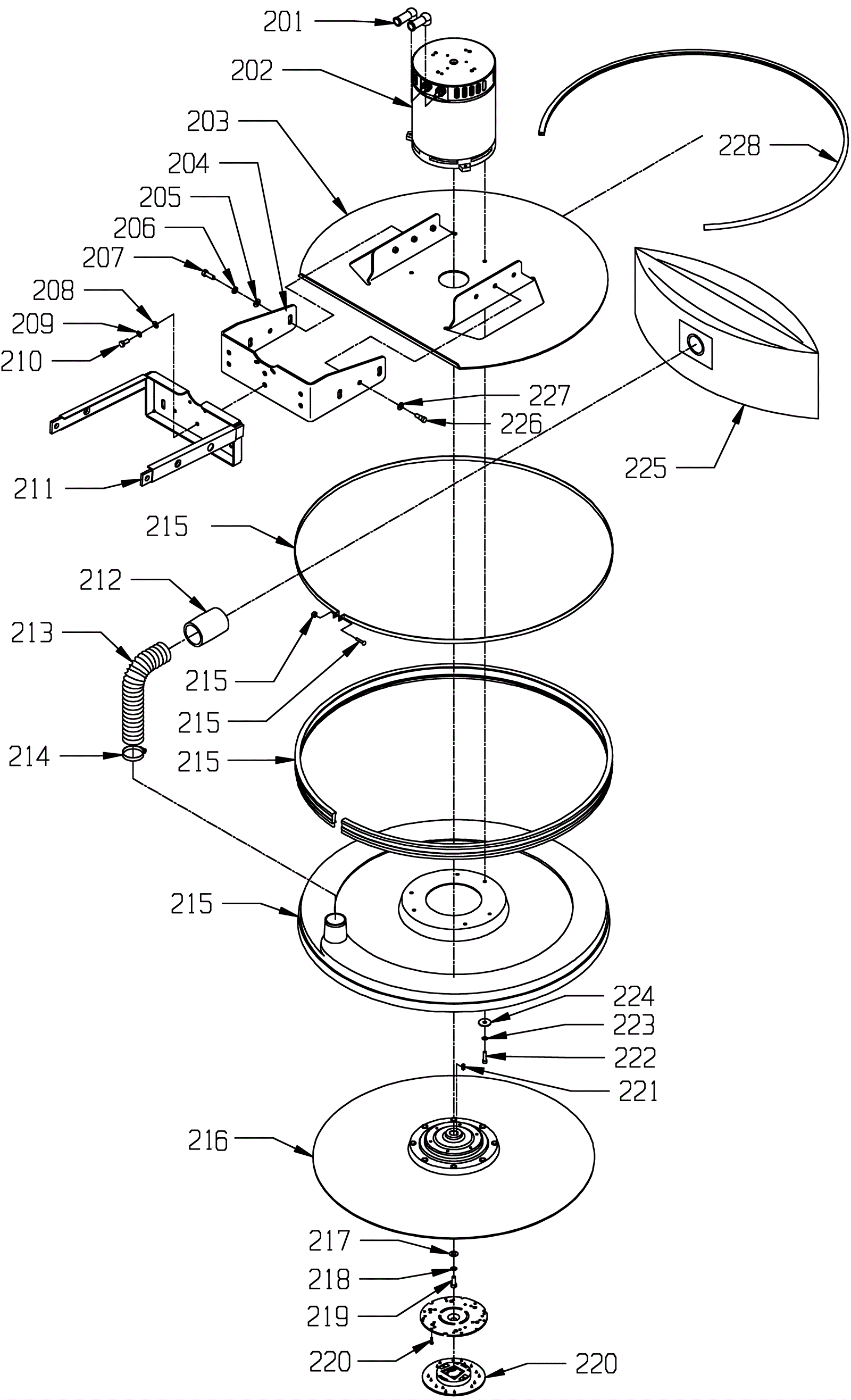

CHARGER 2716AB Deck Assembly

#PartDescriptionPriceReqNotesAvailability
201 164-1598 Rubber terminal boot $24.18 2 usually ships 19-25 days
202 164-6472 36V brush motor $1,176.12 1 usually ships 19-25 days
203 164-6425 27 inch steel skirt $272.36 1 usually ships 1-5 days
204 164-6365 Pivot fork (OBSOLETE) $103.73 1 usually ships 19-25 days
205 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
206 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
207 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
208 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
209 999-0028 Washer 5/16 split lock plain finish $0.99 3 ships same day
210 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 3 ships same day
211 164-3052 Pivot weldment $193.22 1 usually ships 1-5 days
212 164-3049 2 inch cuff $27.95 1 usually ships 19-25 days
213 164-1418 Vacuum exhaust hose $48.41 1 usually ships 19-25 days
214 997-2003 Hose clamp $2.66 1 ships same day
215a 164-3104 27 inch Flexiwall shield assembly with bumper and strap $519.37 1 (includes 215b thru 215e) usually ships 19-25 days
215b 164-3105 27 inch bumper strap $116.67 1 usually ships 19-25 days
215c 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
215d 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
215e 164-3106 27 inch bumper (OBSOLETE) $193.22 1 usually ships 19-25 days
216 164-1582 27 inch pad driver assembly $293.39 1 ships same day
217 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
218 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
219 999-0614 Bolt 5/16-24 x 7/8 hex head grade 5 zinc plated $0.99 1 ships same day
220a 991-2206 Center-Lok 3 pad holder $47.32 1 (includes 220b) ships same day
220b 999-0569 Screw 10 x 1/2 pan head phillips sheet metal $0.99 3 ships same day
221 164-6781 Square keyway $7.38 1 usually ships 1-5 days
222 999-0383 Screw 1/4-20 x 1/2 button head socket cap plain finish $0.99 3 ships same day
223 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
224 999-0160 Washer 1/4 x 1 1/4 fender zinc plated $0.99 3 ships same day
225a 164-0032 Paper bag (pkg of 5) $36.67 1 usually ships 19-25 days
225b 164-3111 Cloth vacuum bag $65.21 1 (optional) usually ships 19-25 days
226 164-1458 Bolt 5/16-18 x 3/8 long socket head $11.67 2 usually ships 19-25 days
227 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
228 164-9029 Metal core quickedge trim (sold by the foot) $4.31 5.5ft usually ships 19-25 days
N/S 164-0151 Spacer $3.85 2 usually ships 19-25 days
