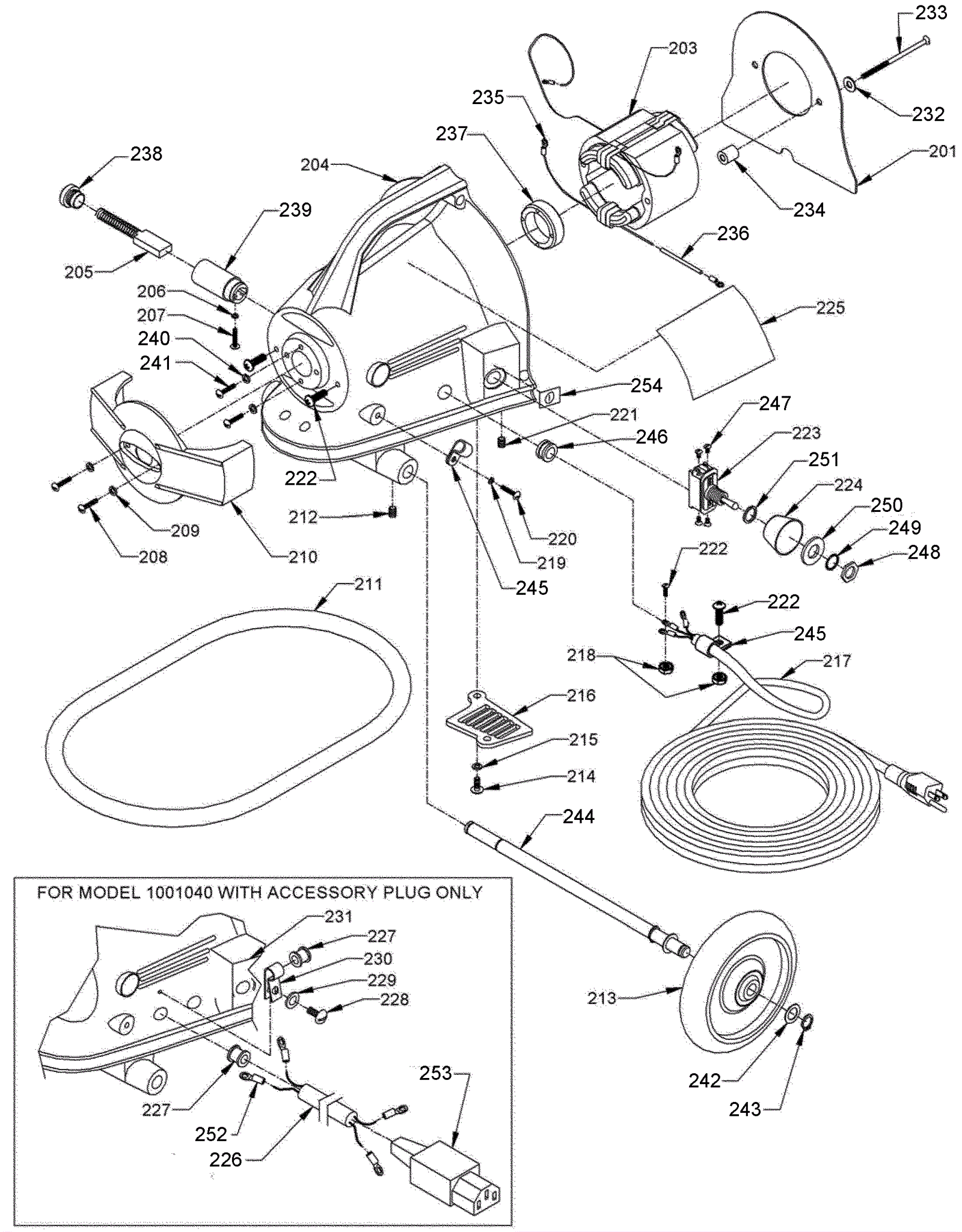

| # | Part | Description |
Req | Notes | Availability |
|---|
201a |
164-2132
|
Baffle assembly with hardware |
1 |
(includes 201b) |
|
201b |
164-6043
|
Baffle plate |
1 |
|
|
203 |
164-6024
|
Field core and coil assembly |
1 |
|
|
204a |
164-6006
|
Motor frame with brush holder |
1 |
(includes 204b and 237-241) |
|
204b |
164-2127
|
Motor frame |
1 |
|
|
205a |
164-6003
|
Carbon brush (sold individually) |
2 |
(OEM) |
|
205b |
991-1243
|
Carbon brush (sold individually) |
2 |
(NON-OEM) |
|
206 |
999-0051
|
Washer #6 medium split lock |
2 |
|
|
207 |
164-7382
|
Screw 6-32 x 5/16 pan head slot machine brass (pkg of 10) |
2 |
|
|
208 |
999-0995
|
Screw 8-32 x 1 round head phillips zinc plated |
2 |
|
|
209 |
999-0150
|
Washer #8 medium split lock |
2 |
|
|
210 |
164-6005
|
Motor cap |
1 |
|
|
211 |
164-6053
|
Vinyl bumper |
1 |
|
|
212 |
999-0155
|
Screw 1/4-20 x 5/16 knurled point socket set plain finish |
1 |
|
|
213a |
164-0038
|
Wheel kit (includes 2 wheels and axle) |
1 |
(includes 213b, 242-244) |
|
213b |
164-1441
|
6 inch squeegee bumper wheel |
2 |
|
|
214 |
999-0064
|
Screw 10-24 x 7/16 round head slotted zinc plated |
2 |
|
|
215 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
216 |
164-6014
|
Grate |
1 |
|
|
217a |
164-6013
|
16/3 power cord assembly 35 foot |
1 |
(OEM) (includes 217b, 245 and 246) |
|
217b |
164-2117
|
16/3 power cord 35 foot |
1 |
(OEM) |
|
217c |
991-5006
|
16/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
217d |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
|
218 |
999-0004
|
Nut 10-24 k-lock zinc plated |
1 |
|
|
219 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
220 |
999-0064
|
Screw 10-24 x 7/16 round head slotted zinc plated |
2 |
|
|
221 |
164-7381
|
Screw 1/4-20 x 5/8 set knurl point |
1 |
|
|
222 |
999-0008
|
Screw 10-24 x 5/8 round head slotted zinc plated |
5 |
|
|
223 |
164-0034
|
On/off switch assembly |
1 |
(includes 247, 248 and 249) |
|
224a |
164-6029
|
Switch guard assembly |
1 |
(includes 224b, 250 and 251) |
|
224b |
164-2116
|
Toggle switch guard |
1 |
|
|
225 |
164-9550
|
Warning decal |
1 |
|
|
226a |
164-6998
|
Power outlet kit for PowerWand |
1 |
(includes 226b, 252 and 253) |
|
226b |
164-7167
|
Cord |
1 |
|
|
227 |
164-3317
|
Grommet |
2 |
|
|
228 |
999-0231
|
Screw 10-24 x 1/2 round head slotted zinc plated |
1 |
|
|
229 |
999-0053
|
Washer #10 split lock plain finish |
1 |
|
|
230 |
164-2118
|
P clamp |
1 |
|
|
231 |
164-7383
|
Accessory plug frame |
1 |
|
|
232 |
164-6034
|
Brass eyelet |
2 |
|
|
233 |
999-0255
|
Screw 10-24 x 3 1/2 flat head slotted zinc plated |
2 |
|
|
234 |
164-6035
|
Baffle spacer |
2 |
|
|
235 |
164-1989
|
Ring terminal #6 |
4 |
|
|
236 |
164-6036
|
Tubing |
2 |
|
|
237 |
164-6037
|
Bearing housing |
1 |
|
|
238 |
164-6000
|
Brush holder cap |
2 |
|
|
239 |
164-6004
|
Carbon brush holder |
2 |
|
|
240 |
999-0150
|
Washer #8 medium split lock |
2 |
|
|
241 |
999-0055
|
Screw 8-32 x 3/4 round head slotted zinc plated |
2 |
|
|
242 |
164-0289
|
Washer flat stainless steel |
2 |
|
|
243 |
164-0106
|
Retaining ring |
2 |
|
|
244 |
164-9549
|
Axle |
1 |
|
|
245 |
164-0232
|
P clamp |
2 |
|
|
246 |
164-6026
|
Rubber grommet |
1 |
|
|
247 |
999-0317
|
Screw 8-32 x 1/4 pan head slotted zinc plated |
4 |
|
|
248 |
999-1359
|
Nut 9/16 hex stainless steel |
1 |
|
|
249 |
164-8372
|
Lock washer (pkg of 5) |
1 |
|
|
250 |
164-0289
|
Washer flat stainless steel |
1 |
|
|
251 |
164-6007
|
Spacer |
1 |
|
|
252 |
164-1989
|
Ring terminal #6 |
4 |
|
|
253 |
164-6089
|
Female plug |
1 |
|
|
254 |
164-9551
|
Switch decal |
1 |
|
|
