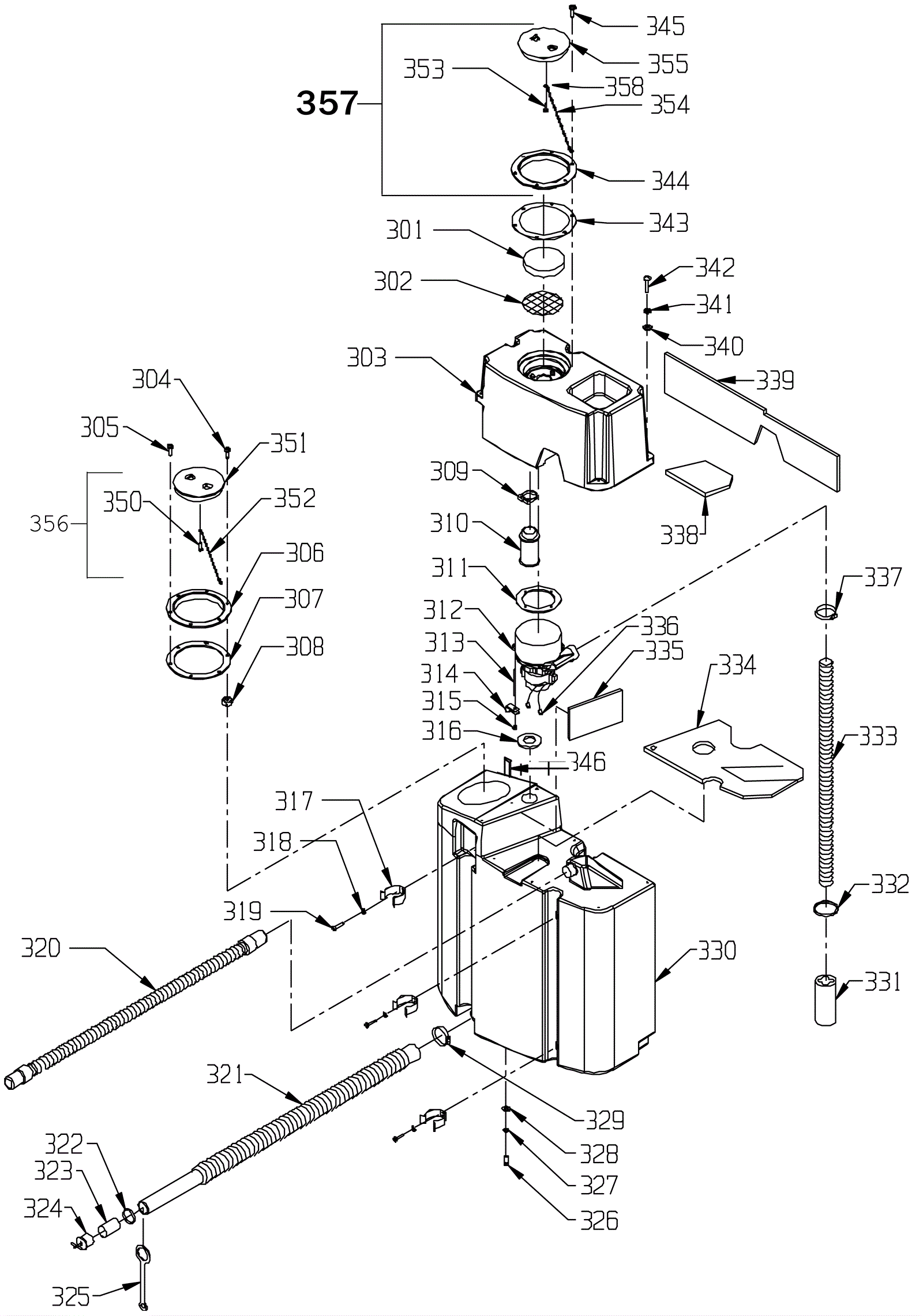

| # | Part | Description |
Req | Notes | Availability |
|---|
301 |
164-1190
|
Vacuum motor filter |
1 |
|
|
302 |
164-1743
|
Vacuum motor screen |
1 |
|
|
303 |
164-1744
|
Vacuum motor cover |
1 |
|
|
304 |
999-0009
|
Screw 10-24 x 1 round head slotted zinc plated |
1 |
|
|
305 |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
5 |
|
|
306 |
164-0205
|
Tank lid ring (clear) |
1 |
|
|
307 |
164-0206
|
Gasket |
1 |
|
|
308 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
309 |
164-0218
|
Nylon hose clamp |
1 |
|
|
310 |
164-0046
|
Float screen assembly |
1 |
|
|
311a |
164-0881
|
Vacuum motor gasket |
1 |
|
|
311b |
991-3029
|
Vacuum motor gasket |
1 |
(NON-OEM) |
|
312a |
164-7977
|
36V vacuum motor |
1 |
(OEM) |
|
312b |
991-1202
|
36V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
|
312c |
991-1222
|
Plastic covered carbon brush (sold individually) |
2 |
(green plastic) |
|
312d |
991-1224
|
Plastic covered carbon brush (sold individually) |
2 |
(black plastic) |
|
313 |
999-0728
|
Bolt 1/4-20 x 4 1/2 hex head grade 5 zinc plated |
3 |
|
|
314a |
164-9118
|
P clamp |
1 |
|
|
314b |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
315 |
999-0165
|
Bolt 1/4-20 x 4 hex head grade 5 zinc plated |
3 |
|
|
316 |
164-1745
|
Gasket |
1 |
|
|
317 |
164-0101
|
Hose holder |
3 |
|
|
318 |
999-0051
|
Washer #6 medium split lock |
6 |
|
|
319 |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
6 |
|
|
320a |
164-2023
|
Squeegee vacuum hose |
1 |
(OEM) |
|
320b |
991-8567
|
Squeegee vacuum hose |
1 |
(NON-OEM) |
|
321 |
164-2013
|
Drain hose |
1 |
|
|
322 |
164-0209
|
Hose clamp |
1 |
|
|
323 |
164-0208
|
Tube |
1 |
|
|
324a |
164-0043
|
Drain plug |
1 |
(OEM) |
|
324b |
991-5113
|
Drain plug |
1 |
(NON-OEM) |
|
325 |
164-0207
|
Plug strap |
1 |
|
|
326 |
999-0119
|
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
327 |
999-0034
|
Washer 3/8 split lock plain finish |
2 |
|
|
328 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
329 |
997-2003
|
Hose clamp |
1 |
|
|
330 |
164-1747
|
Recovery tank |
1 |
|
|
331 |
164-1420
|
Exhaust muffler tube |
1 |
|
|
332 |
164-1419
|
Wire tie |
1 |
|
|
333 |
164-2020
|
Vacuum motor exhaust hose |
1 |
|
|
334 |
164-1748
|
Bottom insulation |
1 |
|
|
335 |
164-1749
|
Small side insulation |
1 |
|
|
336 |
998-0001
|
1/4 spade male terminal 10-12 gauge |
2 |
|
|
337 |
997-2003
|
Hose clamp |
1 |
|
|
338a |
164-0881
|
Vacuum motor gasket |
1 |
|
|
338b |
991-3029
|
Vacuum motor gasket |
1 |
(NON-OEM) |
|
339 |
164-1751
|
Large side insulation |
1 |
|
|
340 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
341 |
999-0311
|
Washer #10 external star lock zinc plated |
6 |
|
|
342 |
999-0880
|
Screw 10-24 x 1 1/2 truss head slotted stainless steel |
6 |
|
|
343 |
164-0206
|
Gasket |
1 |
|
|
344a |
164-0205
|
Tank lid ring (clear) |
1 |
(before 02.2014) |
|
345 |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
7 |
|
|
346 |
164-0272
|
Gasket 1 x 1/4 neoprene (sold by the foot) |
2 ft |
|
|
350 |
999-0458
|
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
1 |
|
|
351a |
164-0044
|
Tank lid (clear) |
1 |
|
|
351b |
991-1928
|
Tank lid (clear) (OBSOLETE) |
1 |
(NON-OEM) |
|
352 |
164-0204
|
Recovery tank lid chain |
1 |
|
|
353 |
999-0458
|
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
1 |
|
|
354 |
164-0204
|
Recovery tank lid chain |
1 |
|
|
355a |
164-0044
|
Tank lid (clear) |
1 |
|
|
356 |
164-0202
|
Tank lid assembly |
1 |
(includes 306, 350, 351 and 352) |
|
357 |
164-0202
|
Tank lid assembly |
1 |
(includes 344, 353, 354 and 355) |
|
358 |
999-0458
|
Screw 8 x 1/2 pan head phillips T-A sheet metal zinc |
1 |
(after 02.2014) |
|
