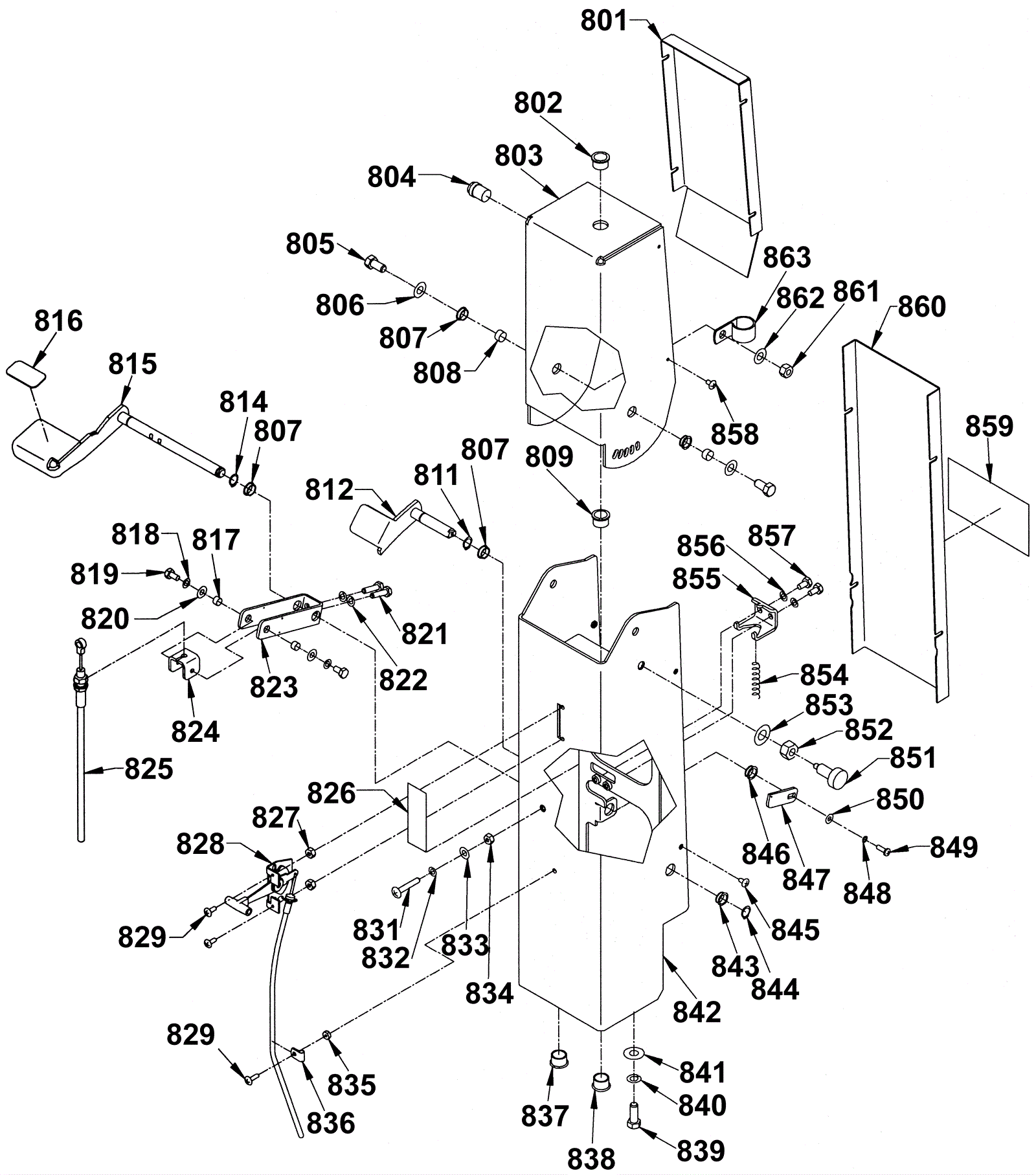

CHAMP 3529 RB Outer Steering Column Assembly

#PartDescriptionPriceReqNotesAvailability
801 164-1666 Column cover $92.35 1 usually ships 1-5 days
802 164-0519 Flanged bearing $4.22 1 usually ships 8-23 days
803 164-1667 Upper column $204.49 1 usually ships 8-23 days
804 164-1662 Push button switch $58.96 1 (toggles between display screens) usually ships 8-23 days
805 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
806 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
807 164-1513 Bushing $3.43 4 usually ships 8-23 days
808 164-0151 Spacer $3.70 2 ships same day
809 164-0519 Flanged bearing $4.22 1 usually ships 8-23 days
810 164-1513 Bushing $3.43 1 usually ships 8-23 days
811 164-0106 Retaining ring $2.96 1 ships same day
812 164-1670 Parking brake pedal (OBSOLETE) $81.07 1 usually ships 1-5 days
813 164-1513 Bushing $3.43 1 usually ships 8-23 days
814 164-0106 Retaining ring $2.96 1 ships same day
815 164-1669 Brake pedal $96.91 1 usually ships 1-5 days
816 164-1668 Pedal pad $5.35 1 usually ships 8-23 days
817 164-0136 Bushing $2.75 2 ships same day
818 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
819 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
820 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
821 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
822 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
823 164-1671 Bracket (OBSOLETE) $40.48 1 usually ships 1-5 days
824 164-1672 Pivot bracket $35.09 1 usually ships 1-5 days
825 164-2021 Brake cable $147.46 1 usually ships 8-23 days
826 164-9041 Decal kit (black and white) $21.62 1 usually ships 1-5 days
827 999-0004 Nut 10-24 k-lock zinc plated $0.99 2 ships same day
828 164-1408 Solution lever and cable assembly (OBSOLETE) $30.03 1 usually ships 8-23 days
829 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated $0.99 3 ships same day
831 999-0878 Screw 1/4-20 x 1 1/2 truss head slotted stainless steel $0.99 1 ships same day
832 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
833 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
834 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
835 999-0004 Nut 10-24 k-lock zinc plated $0.99 1 ships same day
836 164-0232 P clamp $2.57 1 usually ships 8-23 days
837 164-1673 Snap bushing $2.70 1 ships same day
838 164-0519 Flanged bearing $4.22 1 usually ships 8-23 days
839 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
840 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
841 999-0024 Washer 5/16 flat stainless steel $1.34 4 (after 02.2014) ships same day
842 164-1674 Steering column base $233.11 1 usually ships 1-5 days
843 164-1513 Bushing $3.43 1 (after 02.2014) usually ships 8-23 days
844 164-0106 Retaining ring $2.96 1 (after 02.2014) ships same day
845 999-0010 Screw 10-24 x 3/8 truss head slotted zinc plated $0.99 4 (after 02.2014) ships same day
846 164-1513 Bushing $3.43 1 usually ships 8-23 days
847 164-1675 Spring arm $11.77 1 usually ships 1-5 days
848 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
849 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated $0.99 1 ships same day
850 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
851 164-1676 Steering plunger $99.30 1 usually ships 8-23 days
852 999-0050 Nut 1/2-13 hex jam plain finish $0.99 1 ships same day
853 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
854 164-0981 Spring $5.61 3 usually ships 8-23 days
855 164-1677 Spring bracket $36.74 1 usually ships 1-5 days
856 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
857 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
858 999-0010 Screw 10-24 x 3/8 truss head slotted zinc plated $0.99 4 ships same day
859a 164-1857 Decal (OBSOLETE) $23.65 1 (after 02.2014) usually ships 1-5 days
859b 164-1857 Decal (OBSOLETE) $23.65 1 (after 02.2014) usually ships 1-5 days
860 164-1678 Base cover $88.28 1 usually ships 1-5 days
861 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
862 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
863 164-0934 P clamp $5.50 1 usually ships 8-23 days
864 164-9041 Decal kit (black and white) $21.62 1 (after 02.2014) usually ships 1-5 days
865 999-0010 Screw 10-24 x 3/8 truss head slotted zinc plated $0.99 4 (after 02.2014) ships same day
866 164-8149 Max incline decal $5.50 1 (after 02.2014) usually ships 8-23 days
867 164-8150 Max climbing incline decal $8.97 1 (after 02.2014) usually ships 8-23 days
