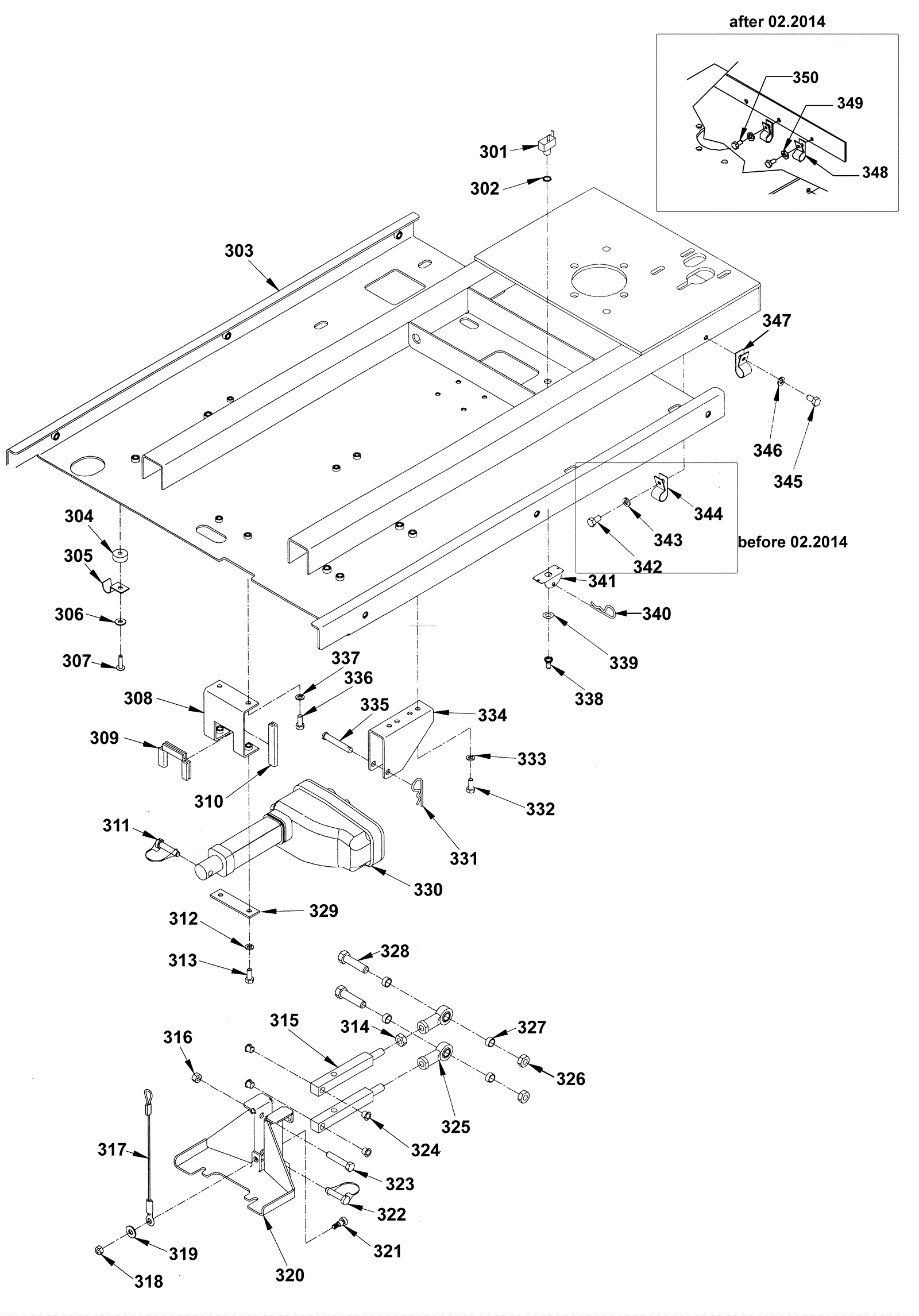

CHAMP 3529 RB Squeegee Actuator Assembly

#PartDescriptionPriceReqNotesAvailability
301 164-2000 Forward/reverse switch (6 prong) $34.27 1 (brush and traction speed) usually ships 8-23 days
302 999-0186 Nut 5/8-11 nylon insert lock zinc plated $1.12 1 ships same day
303 164-1618 Chassis $1,156.05 1 usually ships 1-5 days
304 164-1624 Spring guide $8.42 1 usually ships 1-5 days
305 164-0401 Hose clip $4.22 1 usually ships 8-23 days
306 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
307 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
308 164-1625 Rear actuator mount $27.89 1 usually ships 1-5 days
309 164-9029 Metal core quickedge trim (sold by the foot) $4.09 1 ft (cut to 2.5", 2.75", and 2.5") usually ships 8-23 days
310a N/A Not available Call for price (Trimp) (2929) (not used on this model) usually ships 3-26 days
310b 164-4597 Vinyl trim (sold by the foot) $4.49 1 ft (3329) usually ships 8-23 days
310c 164-9029 Metal core quickedge trim (sold by the foot) $4.09 1 ft (3529) usually ships 8-23 days
311 164-0823 Clevis pin with retainer $10.01 1 ships same day
312 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
313 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
314 999-0134 Nut 1/2-20 hex jam plain finish $0.99 1 ships same day
315 164-0859 Squeegee shaft $33.84 2 ships same day
316 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
317 164-1195 Squeegee lifting cable $51.05 1 ships same day
318 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
319 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
320 164-1192 Squeegee mounting bracket $209.81 1 usually ships 8-23 days
321 164-1458 Bolt 5/16-18 x 3/8 long socket head $10.01 1 ships same day
322 164-0823 Clevis pin with retainer $10.01 1 ships same day
323 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated $1.19 1 ships same day
324 164-0858 Flanged bushing $3.56 4 ships same day
325 164-0238 Ball joint $50.71 2 ships same day
326 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
327 164-0234 Bushing $11.22 4 ships same day
328 999-0261 Bolt 1/2-13 x 2 hex head grade 5 $1.58 2 ships same day
329 164-1626 Actuator mounting bracket $9.63 1 usually ships 1-5 days
330a 164-1623 Actuator kit (brush and squeegee)- DO NOT ORDER -SEE NOTE $919.53 1 (includes 330b) usually ships 8-23 days
330b 164-7041 Actuator limit switch kit $54.40 1 usually ships 8-23 days
331 164-1508 Cotter hair pin $1.72 1 usually ships 8-23 days
332 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
333 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
334 164-1627 Front actuator mount $38.72 1 usually ships 1-5 days
335 164-9023 Clevis pin $2.77 1 usually ships 8-23 days
336 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 2 ships same day
337 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
338 164-0287 Rubber switch boot $10.34 1 ships same day
339 999-0260 Washer 1/2 internal starlock $0.99 1 ships same day
340 164-1508 Cotter hair pin $1.72 1 usually ships 8-23 days
341 164-1628 Switch guard $10.51 1 usually ships 1-5 days
342 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 (before 02.2014) ships same day
343 999-0060 Washer 1/4 split lock plain finish $0.99 2 (before 02.2014) ships same day
344 164-3243 P clamp $3.96 2 (before 02.2014) usually ships 1-5 days
345 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
346 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
347 164-0934 P clamp $5.50 1 usually ships 8-23 days
348 164-3243 P clamp $3.96 2 (after 02.2014) usually ships 1-5 days
349 999-0060 Washer 1/4 split lock plain finish $0.99 2 (after 02.2014) ships same day
350 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 (after 02.2014) ships same day
