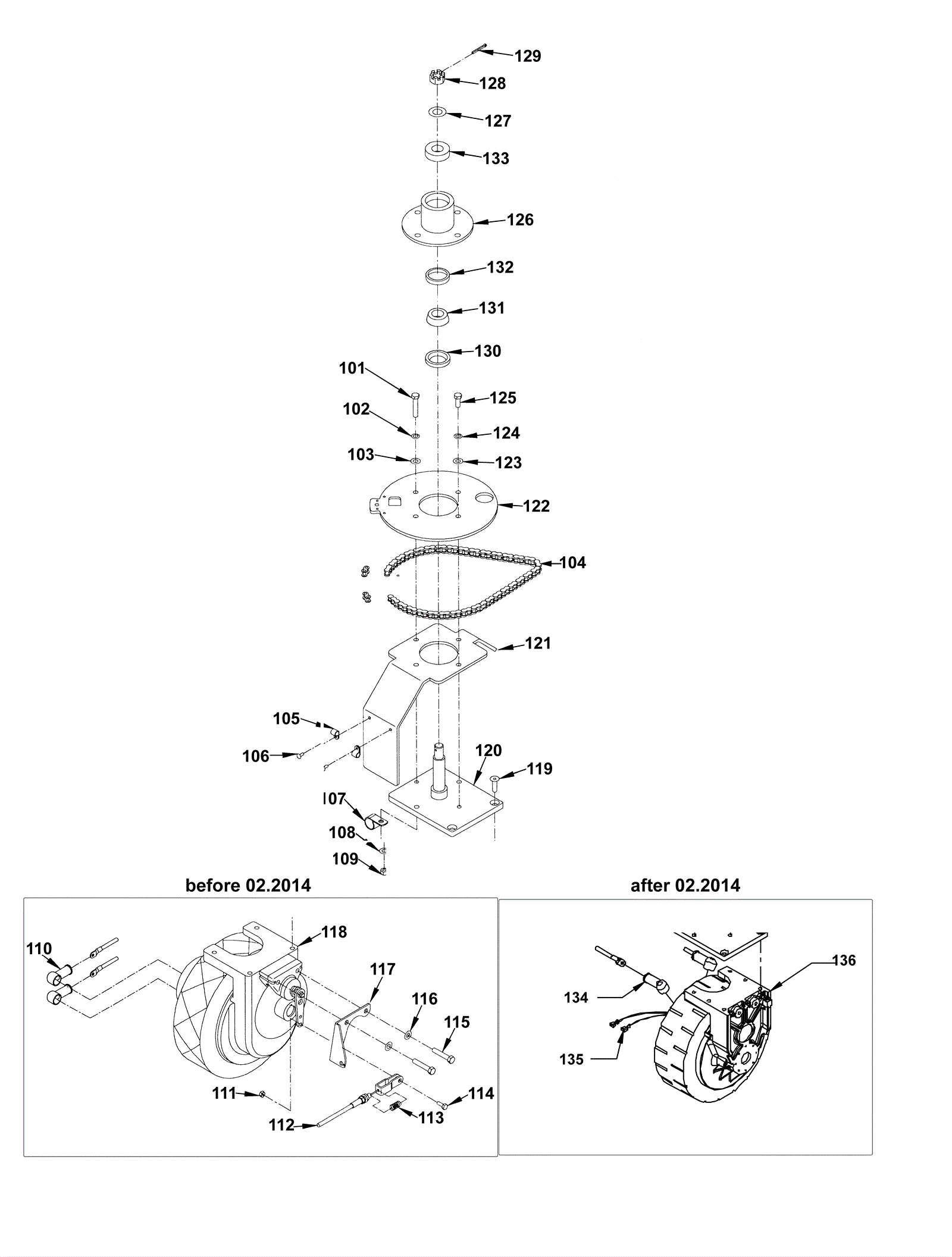

# | Part | Description | Price | Req | Notes | Availability |
101a |
999-0107
|
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
$1.19
|
3 |
(before 02.2014) |
ships same day |
101b |
164-7476
|
Bolt M10-1.5 x 50mm hex head (pkg of 2) |
$8.65
|
2 |
(after 02.2014) |
usually ships 1-5 days |
102a |
999-0034
|
Washer 3/8 split lock plain finish |
$1.82
|
3 |
(before 02.2014) |
ships same day |
102b |
999-1081
|
Washer M10 split lock stainless steel |
$0.99
|
2 |
(after 02.2014) |
ships same day |
103a |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
3 |
(before 02.2014) |
ships same day |
103b |
999-1262
|
Washer M10 flat |
$1.34
|
2 |
(after 02.2014) |
ships same day |
104a |
164-1597
|
Chain kit (chain with 2 master links) |
$64.05
|
1 |
(OEM) |
usually ships 6-20 days |
104b |
991-0101
|
Chain (sold by the link) |
$0.55
|
68 |
(NON-OEM) |
ships same day |
104c |
991-0103
|
Master link |
$1.87
|
2 |
(NON-OEM) |
ships same day |
105 |
164-0232
|
P clamp |
$2.34
|
2 |
|
usually ships 6-20 days |
106 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
$0.99
|
2 |
|
ships same day |
107 |
164-0934
|
P clamp |
$5.00
|
1 |
(before 02.2014) |
usually ships 6-20 days |
108 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
1 |
(before 02.2014) |
ships same day |
109 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
$0.99
|
1 |
(before 02.2014) |
ships same day |
110 |
164-1598
|
Rubber terminal boot |
$17.60
|
2 |
(before 02.2014) |
usually ships 1-5 days |
111 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
$0.99
|
1 |
(before 02.2014) |
ships same day |
112a |
164-2021
|
Brake cable |
$134.05
|
1 |
(before 02.2014) |
ships same day |
112b |
999-0034
|
Washer 3/8 split lock plain finish |
$1.82
|
2 |
(after 02.2014) |
ships same day |
113 |
164-0856
|
Height adjustment spring |
$6.71
|
1 |
(before 02.2014) |
ships same day |
114 |
999-1103
|
Bolt 1/4-20 x 3/4 hex head with nylon patch |
$4.49
|
1 |
(before 02.2014) |
ships same day |
115 |
164-1599
|
Bolt 3/8-24 x 2 1/8 hex head |
$4.56
|
2 |
(before 02.2014) |
usually ships 1-5 days |
116 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
2 |
(before 02.2014) |
ships same day |
117 |
164-7064
|
Lower brake cable bracket |
$25.20
|
1 |
(before 02.2014) |
usually ships 1-5 days |
118a |
164-1601
|
Drive wheel with motor assembly |
$4,820.65
|
1 |
(includes 118b-118f) (before 02.2014) |
usually ships 6-20 days |
118b |
164-1518
|
12 inch front wheel |
$643.20
|
1 |
(before 02.2014) |
usually ships 6-20 days |
118c |
164-1602
|
Drive wheel bolts and lockwasher (pkg of 10) |
$49.50
|
1 |
(before 02.2014) |
usually ships 1-5 days |
118d |
164-1603
|
Drive motor (motor only) |
$1,073.70
|
1 |
(before 02.2014) |
usually ships 6-20 days |
118e |
164-1604
|
Carbon brush kit |
$359.97
|
1 |
(before 02.2014) |
ships same day |
118f |
164-1605
|
Brake rotor |
$207.25
|
1 |
(before 02.2014) |
usually ships 1-5 days |
118g |
164-6833
|
10 inch wheel/tire |
$293.89
|
1 |
(old style 10 inch wheel) (before 02.2014) |
usually ships 6-20 days |
118h |
164-1601
|
Drive wheel with motor assembly |
$4,820.65
|
1 |
|
usually ships 6-20 days |
119 |
999-0936
|
Screw 3/8-16 x 1 1/4 flat head socket zinc plated |
$0.90
|
2 |
|
ships same day |
120 |
164-1364
|
Steering yoke |
$293.06
|
1 |
|
usually ships 6-20 days |
121 |
164-1607
|
Fender |
$155.20
|
1 |
|
usually ships 1-5 days |
122 |
164-1608
|
Drive sprocket |
$120.80
|
1 |
|
usually ships 6-20 days |
123 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
1 |
|
ships same day |
124 |
999-0034
|
Washer 3/8 split lock plain finish |
$1.82
|
1 |
|
ships same day |
125 |
999-0039
|
Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated |
$0.90
|
1 |
|
ships same day |
126 |
164-1609
|
Bearing block assembly |
$481.00
|
1 |
(includes 130-133) |
usually ships 6-20 days |
127a |
999-0863
|
Washer 3/4 x 14 gauge narrow bushing |
$0.99
|
1 |
(before 02.2014) |
ships same day |
127b |
999-0863
|
Washer 3/4 x 14 gauge narrow bushing |
$0.99
|
1 |
(after 02.2014) |
ships same day |
128 |
999-0937
|
Nut 3/4-16 hex slotted steel plain finish |
$6.96
|
1 |
|
ships same day |
129 |
164-1365
|
Cotter pin |
$5.35
|
1 |
|
ships same day |
130 |
164-1361
|
Seal |
$19.75
|
1 |
|
usually ships 6-20 days |
131 |
164-1362
|
Bearing cone (steering bottom) |
$61.65
|
1 |
|
usually ships 6-20 days |
132 |
164-1363
|
Bearing cup (steering bottom) |
$18.48
|
1 |
|
ships same day |
133 |
164-0332
|
Bearing (shaft end) |
$24.70
|
1 |
|
usually ships 6-20 days |
134 |
164-1598
|
Rubber terminal boot |
$17.60
|
2 |
(after 02.2014) |
usually ships 1-5 days |
135 |
998-0001
|
1/4 spade male terminal 10-12 gauge |
$0.99
|
2 |
(after 02.2014) |
ships same day |
136a |
164-8209
|
Chassis drive |
$4,391.70
|
2 |
(after 02.2014) |
usually ships 1-5 days |
136b |
164-8208
|
Chassis drive |
$4,112.65
|
1 |
(after 02.2014) |
usually ships 1-5 days |
136c |
164-9225
|
Carbon brush |
$12.06
|
4 |
(after 02.2014) |
ships same day |
136d |
164-1518
|
12 inch front wheel |
$643.20
|
1 |
|
usually ships 6-20 days |
136e |
164-6860
|
Wheel kit with hardware |
$77.10
|
1 |
|
usually ships 6-20 days |
136f |
164-6858
|
Wheel bolts |
$2.76
|
10 |
|
usually ships 6-20 days |
136g |
164-6859
|
Wheel lock washer |
$2.76
|
10 |
|
usually ships 6-20 days |
136h |
164-9222
|
Drive motor |
$1,458.80
|
1 |
|
usually ships 6-20 days |
136i |
164-9225
|
Carbon brush |
$12.06
|
4 |
|
ships same day |
136j |
264-0024
|
Wheel |
$891.35
|
1 |
|
usually ships 6-20 days |
136k |
264-0025
|
Brush cap kit |
$19.35
|
1 |
|
usually ships 6-20 days |
N/S |
164-7463
|
Emergency brake |
$335.30
|
|
|
usually ships 6-20 days |
