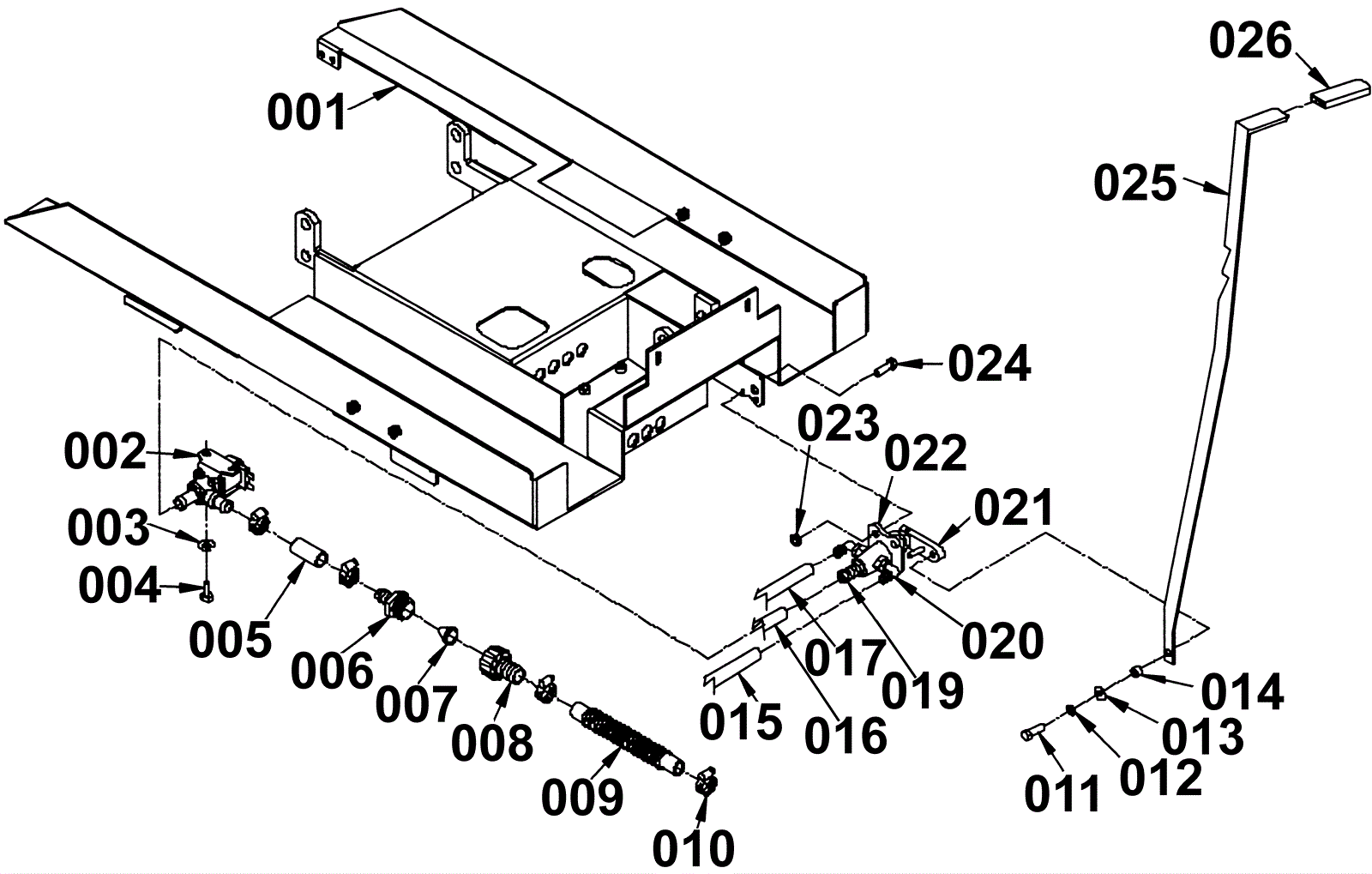

Solution Valve Assembly - Old Style

#PartDescription ReqNotesAvailability
001 164-0846 Frame assembly 1
002 164-2495 Solenoid valve 1
003 999-0060 Washer 1/4 split lock plain finish 4
004 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
005 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 4 in
006 164-2570 1/2 male hose fitting 1
007 164-0065 Filter screen 1
008 164-0182 Hose barb and collar 1
009 164-1107 6 1/2 inch convoluted tubing 1
010 997-2002 Hose clamp #6 4
011 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 1
012 999-0060 Washer 1/4 split lock plain finish 1
013 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
014 164-0136 Bushing 1
015 991-1401 Clear vinyl tubing (sold by the inch) 44 in
016 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) 18 in
017 991-1401 Clear vinyl tubing (sold by the inch) 48 in
019 164-1330 Hose barb 1
020 164-0187 90 degree elbow barb 2
021 164-0619 Valve lever 1
022 164-0618 Solution valve 1
023 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
024 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 4
025 164-0190 Solution valve lever 1
026 164-0285 Valve lever grip 1
