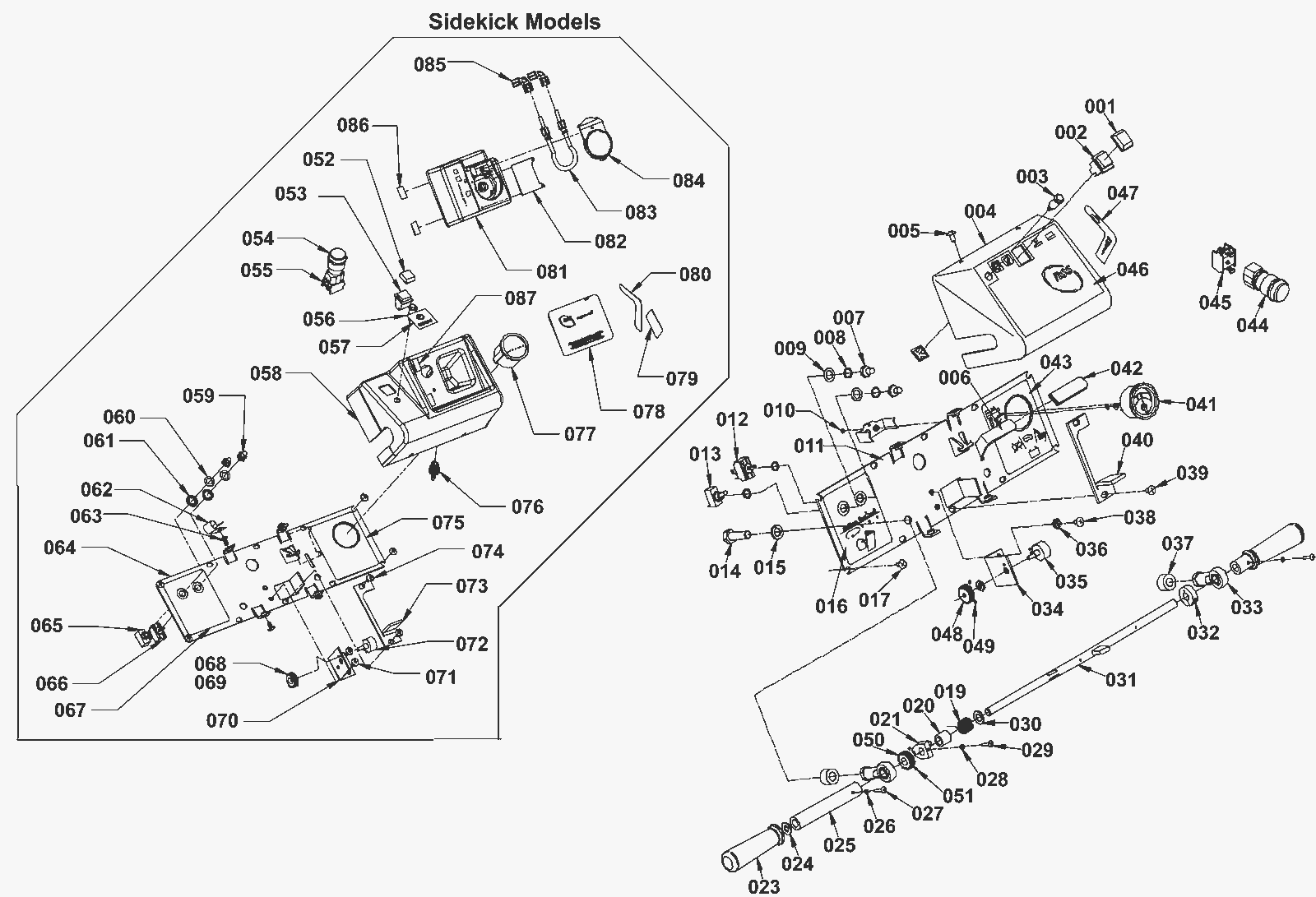

Control Panel Assembly

#PartDescription ReqNotesAvailability
001 164-0281 Push button switch boot 1
002 164-0001 Master switch 1
003 164-0888 Indicator light with clip (green) 1
004a 164-0279 Control panel cover 1
004b 164-2655 Emergency stop (OBSOLETE) 1 (optional)
005 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
006 164-0190 Solution valve lever 1
007 164-0287 Rubber switch boot 2
008 999-0260 Washer 1/2 internal starlock 2
009 999-0024 Washer 5/16 flat stainless steel 4
010 999-0195 Nut 6-32 hex plain 2
011 164-0296 Control plate 1
012 164-0290 Toggle switch 1 (vacuum)
013 164-0023 Toggle switch 1 (brush motor)
014 999-0145 Bolt 1/2-20 x 1 3/4 hex head grade 5 plain finish 2
015 999-0126 Washer 1/2 split lock 1
016 164-0288 Battery meter and left control plate decal kit 1
017 999-0135 Screw 1/4-20 x 3/8 truss head slotted zinc 4
019 164-1329 Torsion spring 1
020 164-9142 Sleeved bearing 1
021 164-9143 Torsion spring driver 1
023a 164-0304 Handle grip 2
023b 991-8571 Handle grip 2 (NON-OEM)
024 999-0024 Washer 5/16 flat stainless steel 2
025 164-0303 Handle grip base 2
026 999-0150 Washer #8 medium split lock 2
027 999-0080 Screw 8-32 x 7/8 round head slotted zinc plated 2
028 999-0150 Washer #8 medium split lock 1
029 999-0055 Screw 8-32 x 3/4 round head slotted zinc plated 1
030 999-0187 Washer 1/2 flat plain finish 1
031 164-9144 Handle bar 1
032 164-9120 1/2 inch shaft collar 1 (includes clamping screw)
033 164-0238 Ball joint 2
034 164-2658 Potentiometer bracket 1
035 172-2039 5K potentiometer 1
036 999-0017 Washer 1/4 external star lock 2
037 164-0292 Handle bar spacer 2
038 999-0113 Screw 1/4-20 x 1/2 truss head slotted 1
039 999-0113 Screw 1/4-20 x 1/2 truss head slotted 1
040 164-2579 Torsion spring stop 1
041 164-0889 Battery meter 1
042 164-0285 Valve lever grip 1
043 164-0288 Battery meter and left control plate decal kit 1
044a 164-2024 Emergency stop 1 (includes 044b)
044b 164-3311 Emergency stop washer 1
045 164-2025 Emergency stop block (red button) 1 (for use with Curtis Control Board 164-0070) (optional)
046 164-5078 Decal kit 1 (fire warning)
047 164-9145 Decal kit 1 (master switch decal)
048 164-0293 Drive gear 1 (includes 049)
049 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish 1
050 164-0300 Drive gear 1 (includes 051)
051 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish 1
052 164-0281 Push button switch boot 1
053 164-0001 Master switch 1
054 164-2024 Emergency stop 1
055 164-2025 Emergency stop block (red button) 1
056 164-0888 Indicator light with clip (green) 1
057 164-8151 On/off decal 1
058a 164-8152 Throttle housing 1
058b 164-8153 Throttle housing 1 (aldi) (optional)
059 164-0287 Rubber switch boot 2
060 999-0260 Washer 1/2 internal starlock 2
061 164-0289 Washer flat stainless steel 2
062 164-9118 P clamp 1
063 999-0113 Screw 1/4-20 x 1/2 truss head slotted 4
064 164-0296 Control plate 1
065 164-0023 Toggle switch 1
066 164-0290 Toggle switch 1
067 164-0288 Battery meter and left control plate decal kit 1
068 164-0293 Drive gear 1
069 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish 2
070 164-2658 Potentiometer bracket 1
071 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
072 172-2039 5K potentiometer 1
073 164-2579 Torsion spring stop 1
074 999-0113 Screw 1/4-20 x 1/2 truss head slotted 2
075 164-0288 Battery meter and left control plate decal kit 1
076 164-8154 Fitting 1 (sidekick only)
077 164-8005 Battery meter with hardware 1
078 164-8155 Sidekick ready decal 1
079 164-5078 Decal kit 1
080 164-8156 Water control decal 1
081a 164-8157 Sidekick chemical dispensor kit 1 (optional)
081c 164-8159 Top housing replacement pump 1
081d 164-8160 Bottom housing replacement pump 1
081e 164-8161 Replacement roller spring 2
082a 164-8162 Sidekick control cover kit 1 (optional)
082b 164-8163 Dilution control cover 1
082c 164-8164 Screw #6 x 1/2 inch tamperproof 2
082d 164-8165 Tamperproof screw tool 1
083 164-8166 Squeeze tube with fittings 1
084 164-8185 Squeeze tube cover 1
085 164-8168 90 degree elbow 2
086 992-0001 Velcro loop (sold by the inch) 2 (sidekick only)
087 992-0002 Velcro hook (sold by the inch) 2 (sidekick only)
