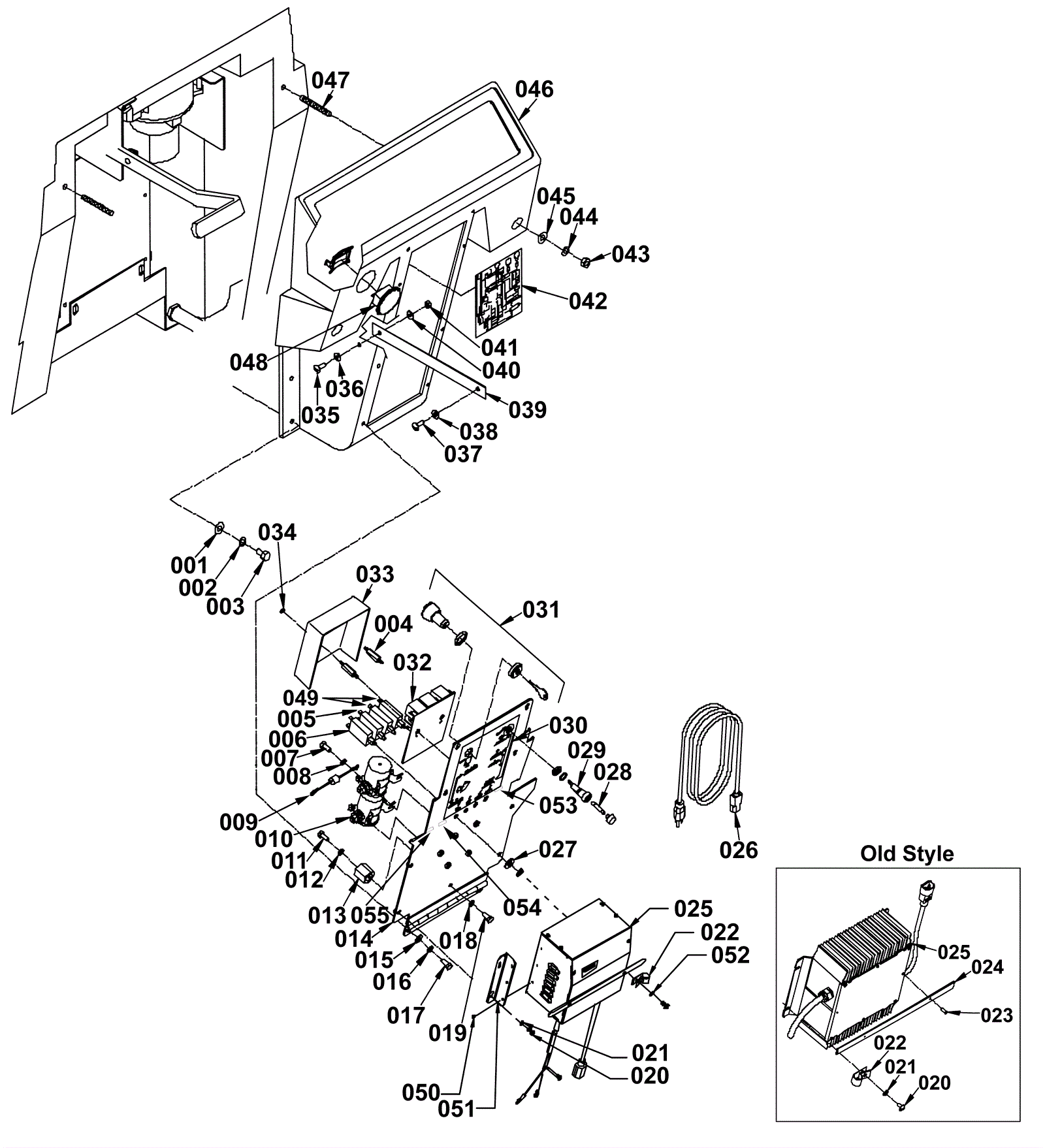

Rear Cover Panel Assembly

#PartDescription ReqNotesAvailability
001 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 5
002 999-0060 Washer 1/4 split lock plain finish 5
003 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 5
004 164-0314 Cover stand off 2
005a 991-1609 25amp circuit breaker 3 (vacuum) (old style)
005b 991-1618 30amp circuit breaker 1 (new style)
006 991-1610 15amp circuit breaker 1 (drive)
007 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
008 999-0060 Washer 1/4 split lock plain finish 4
009 164-0583 Silicon rectifier (diode) 2
010 164-0892 24V solenoid contactor 2
011 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 1
012 999-0017 Washer 1/4 external star lock 1
013 164-0310 Insulated stand off 1
014 164-0893 Rear cover panel for Wrangler 26 1
015 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
016 999-0060 Washer 1/4 split lock plain finish 6
017 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 6
018 999-0060 Washer 1/4 split lock plain finish 1
019 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
020a 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 4 (old style)
020b 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4 (new style)
021 999-0017 Washer 1/4 external star lock 1
022 164-9118 P clamp 2
023 164-9112 Screw M3-.5 x 19mm pan head phillips (pkg of 5) 1
024 164-9113 Cord wrap 1
025a 164-7967 24V onboard charger retro kit (Wrangler 26) 1 (old style)
025b 164-9178 24V 25amp onboard battery charger 1 (includes 024) (new style)
025c 164-7292 Replacement AC cord and panel assembly (Delta Q) (OBSOLETE) 1 (old style)
026 164-6477 Onboard charger extension cord 1
027 999-0024 Washer 5/16 flat stainless steel 4
028 164-6480 4amp fuse 1
029 164-1328 Fuse holder with nut and washer 1 (includes cap) (cap cannot be purchased separately)
030 164-9140 Wrangler 2625 color decal kit 1
031a 164-1660 Key switch and key 1
031b 164-1661 Key (pkg of 2) (OBSOLETE) 1
032 164-0895 24V Curtis speed control for Wrangler 26 1
033 164-0315 Speed control cover 1
034 999-0308 Nut 8-32 plain 2
035 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 5
036 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
037 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel 5
038 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
039 164-0865 Tank support strap 1
040 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
041 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
042 164-9140 Wrangler 2625 color decal kit 1
043 999-0247 Nut 3/8-16 hex jam plain finish 2
044 999-0034 Washer 3/8 split lock plain finish 2
045 999-0033 Washer 7/16 SAE flat 4
046 164-2656 Control panel with hour meter 1
047 999-1354 Screw 3/8-16 x 3 set cup point stainless steel 2
048 164-1451 Hour meter 1
049 164-8007 35amp circuit breaker 2 (new style)
050 999-0569 Screw 10 x 1/2 pan head phillips sheet metal 6
051 164-8029 Onboard charger mounting bracket 2 (new style)
052 999-0060 Washer 1/4 split lock plain finish 1 (new style)
053 164-8149 Max incline decal 1
054 164-8150 Max climbing incline decal 1
