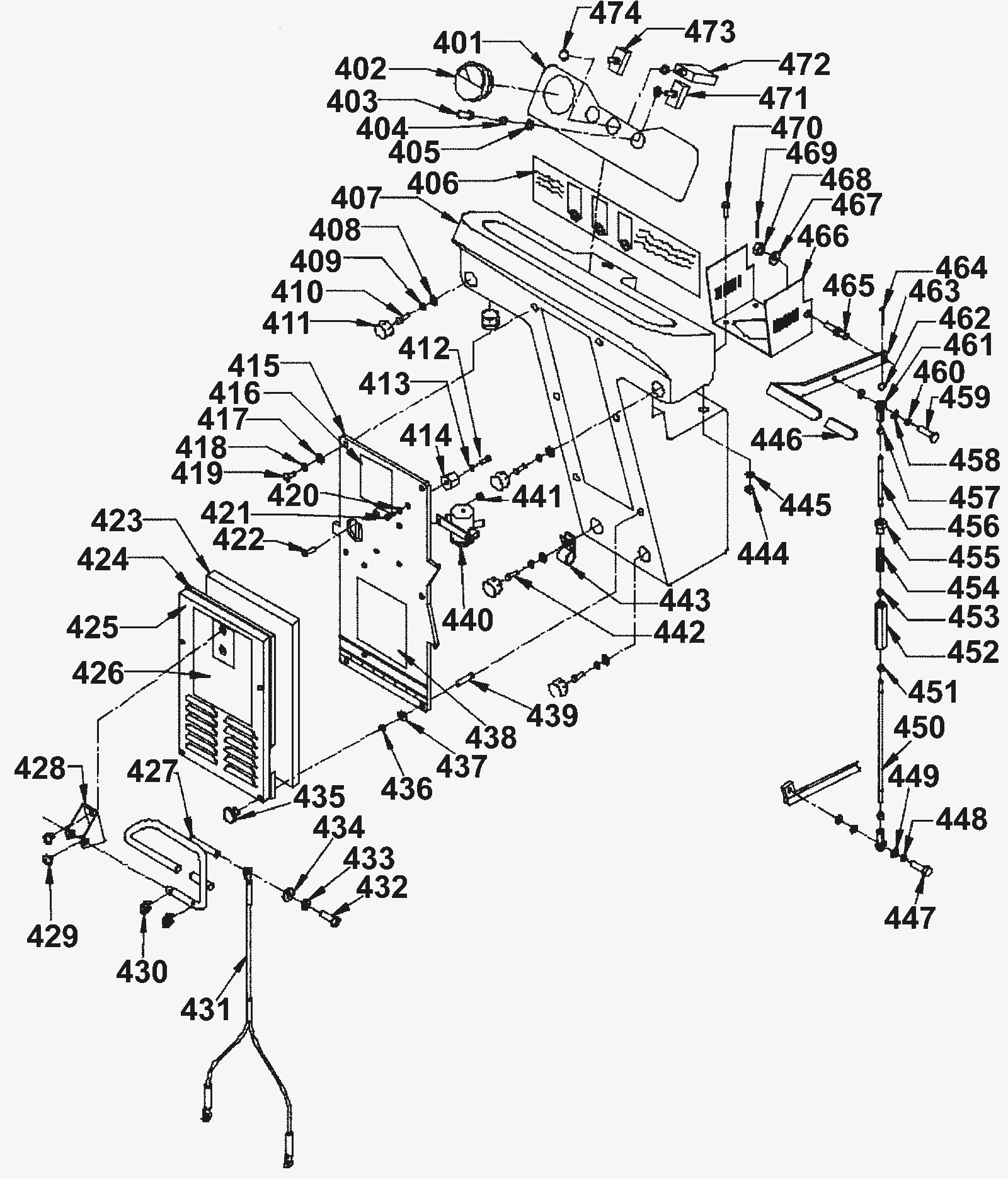

| # | Part | Description |
Req | Notes | Availability |
|---|
401 |
N/A
|
Not available |
1 |
|
|
402 |
164-0889
|
Battery meter |
1 |
|
|
403 |
164-0287
|
Rubber switch boot |
22 |
|
|
404 |
999-0260
|
Washer 1/2 internal starlock |
2 |
|
|
405 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
406 |
164-9091
|
Wrangler 20 color label kit |
1 |
|
|
407 |
164-2469
|
Control WR20B panel |
1 |
|
|
408 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
409 |
999-0105
|
Washer 5/16 external star lock zinc plated |
4 |
|
|
410 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
3 |
|
|
411 |
164-0222
|
Plug |
5 |
|
|
412 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
1 |
|
|
413 |
999-0017
|
Washer 1/4 external star lock |
1 |
|
|
414 |
164-0310
|
Insulated stand off |
1 |
|
|
415 |
164-9097
|
Painted cover panel (OBSOLETE) |
1 |
|
|
416 |
164-9091
|
Wrangler 20 color label kit |
1 |
|
|
417 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
418 |
999-0053
|
Washer #10 split lock plain finish |
2 |
|
|
419 |
999-0056
|
Screw 10-32 x 3/8 round head slotted zinc plated |
2 |
|
|
420 |
999-0017
|
Washer 1/4 external star lock |
1 |
|
|
421 |
999-0361
|
Bolt 1/4-20 x 3/8 hex head grade 5 zinc |
1 |
|
|
422 |
999-0361
|
Bolt 1/4-20 x 3/8 hex head grade 5 zinc |
2 |
|
|
423 |
164-2014
|
Filter |
1 |
|
|
424 |
164-9104
|
U shaped gasket (OBSOLETE) |
1 |
|
|
425 |
164-9105
|
Painted cover box |
1 |
|
|
426 |
164-9106
|
Wrangler 20 brush label (OBSOLETE) |
1 |
|
|
428 |
164-9107
|
Squeegee lift bracket (OBSOLETE) |
2 |
|
|
429 |
999-0135
|
Screw 1/4-20 x 3/8 truss head slotted zinc |
2 |
|
|
430 |
164-1584
|
5/16 E ring |
1 |
|
|
431 |
164-2012
|
Squeegee cable |
1 |
|
|
432 |
999-0645
|
Screw 10-24 x 3/8 round head phillips stainless steel |
1 |
|
|
433 |
999-0053
|
Washer #10 split lock plain finish |
1 |
|
|
434 |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
|
|
435 |
164-2367
|
Wrangler 20 Knob - knurled |
4 |
|
|
436 |
999-0239
|
Nut 10-32 k-lock zinc plated |
4 |
|
|
437 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
438 |
164-9108
|
Color decal kit |
1 |
|
|
439 |
164-9115
|
Screw 10-32 x 1 3/4 set cup point stainless steel |
4 |
|
|
440 |
164-0892
|
24V solenoid contactor |
1 |
|
|
441 |
999-0015
|
Nut 1/4-20 k-lock zinc plated |
2 |
|
|
442 |
999-0031
|
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
1 |
|
|
443 |
164-9118
|
P clamp |
1 |
|
|
444 |
999-0015
|
Nut 1/4-20 k-lock zinc plated |
4 |
|
|
445 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
446 |
164-0261
|
Handle grip |
1 |
|
|
447 |
999-0039
|
Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
|
448 |
999-0034
|
Washer 3/8 split lock plain finish |
1 |
|
|
449 |
999-0033
|
Washer 7/16 SAE flat |
2 |
|
|
450 |
164-9122
|
Lock down lift rod (OBSOLETE) |
3 |
|
|
451 |
999-0170
|
Nut 3/8-16 hex plain finish |
1 |
|
|
452 |
164-0274
|
Spring housing |
1 |
|
|
453 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
|
454 |
164-0056
|
Pressure spring |
1 |
|
|
455 |
164-0275
|
Spring housing retainer |
1 |
|
|
456 |
164-0276
|
Short lifting rod |
1 |
|
|
457 |
999-0143
|
Nut 3/8-24 hex plain finish |
2 |
|
|
458 |
999-0033
|
Washer 7/16 SAE flat |
2 |
|
|
459 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
1 |
|
|
460 |
999-0034
|
Washer 3/8 split lock plain finish |
1 |
|
|
461 |
164-0277
|
Ball joint |
2 |
|
|
462 |
164-0268
|
Cotter ring |
1 |
|
|
463 |
164-0262
|
Brush lift handle |
1 |
|
|
464 |
164-1115
|
Control Plate Cover (OBSOLETE) |
1 |
|
|
465 |
164-0266
|
Pivot stud |
1 |
|
|
466 |
N/A
|
Not available |
1 |
Maintence life arm paint bracket |
|
467 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
468 |
999-0647
|
Nut 1/2-13 slotted hex plain finish |
1 |
|
|
469 |
164-0263
|
Cotter pin |
1 |
|
|
470 |
999-1103
|
Bolt 1/4-20 x 3/4 hex head with nylon patch |
4 |
|
|
471 |
164-0290
|
Toggle switch |
1 |
|
|
472 |
991-1618
|
30amp circuit breaker |
1 |
|
|
473 |
164-0023
|
Toggle switch |
1 |
|
|
474 |
164-4511
|
Circuit breaker button seal |
1 |
|
|
