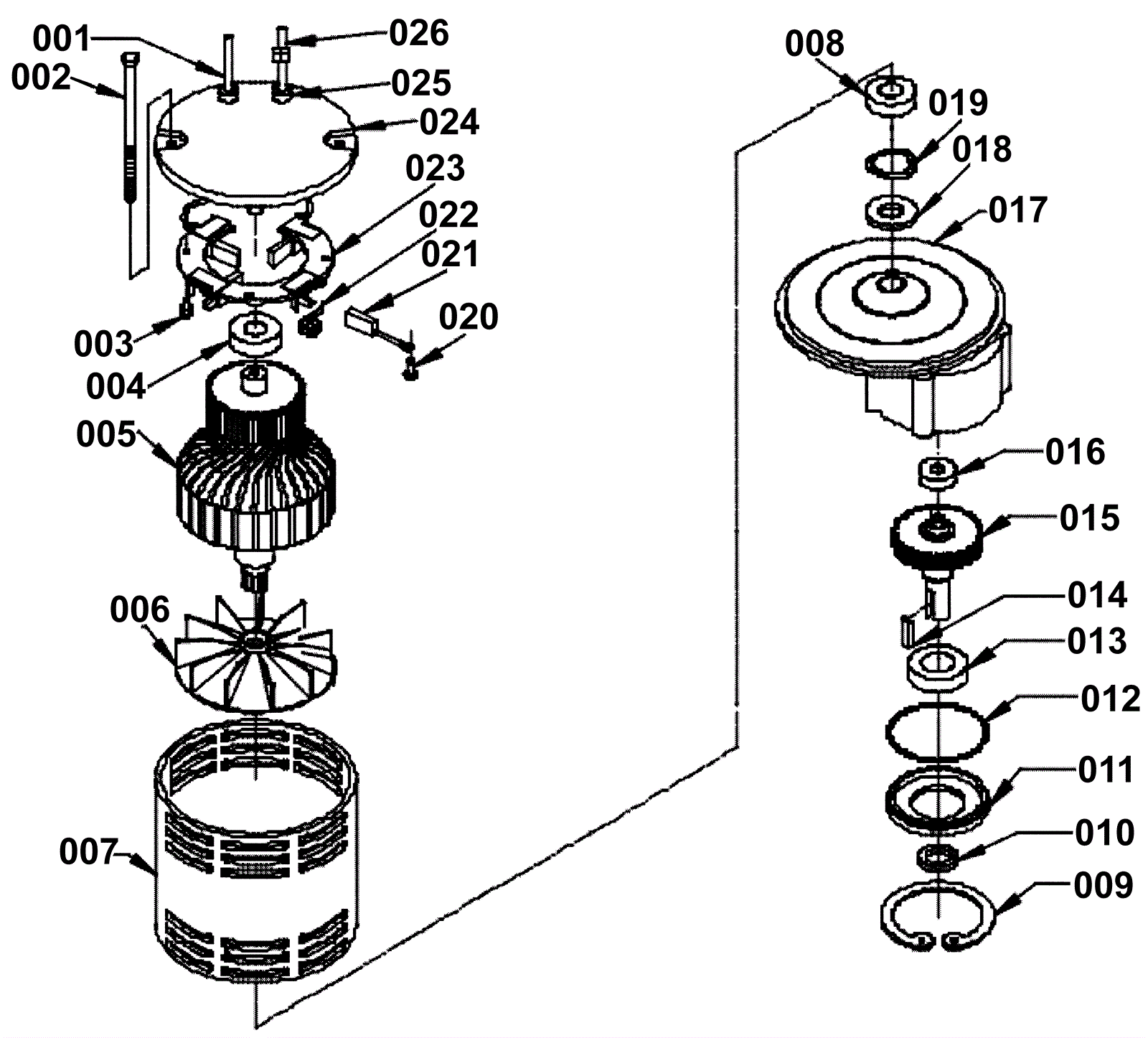

WRANGLER 20B Brush Gear Motor Assembly

#PartDescriptionPriceReqNotesAvailability
000 164-0834 24V brush gear motor assembly $1,362.19 1 usually ships 1-5 days
001 164-1095 Negative lead $58.14 1 usually ships 18-33 days
002 164-1157 Bolt 1/4-20 x 7 3/4 thru $4.75 2 usually ships 18-33 days
003 N/A Not available Call for price 2 usually ships 3-26 days
004 164-0329 Top rotor bearing $28.05 1 usually ships 18-33 days
005 164-1084 24V armature assembly (OBSOLETE) $755.43 1 usually ships 1-5 days
006 164-0342 Armature vent fan $246.24 1 usually ships 1-5 days
007 164-0343 Stator frame assembly with magnets $317.57 1 usually ships 1-5 days
008 164-0355 Bottom bearing large $39.55 1 usually ships 18-33 days
009 164-0359 Snap ring $30.36 1 usually ships 18-33 days
010 164-0358 Oil seal $29.43 1 usually ships 18-33 days
011 164-0357 End cap $101.48 1 usually ships 18-33 days
012 164-0356 O-ring $10.01 1 ships same day
013 164-0355 Bottom bearing large $39.55 1 usually ships 18-33 days
014 164-0132 Square keyway 1/4 x 1/4 $4.95 1 usually ships 18-33 days
015 164-0353 Gear shaft $231.50 1 usually ships 18-33 days
016 164-0352 Top bearing small $30.09 1 usually ships 18-33 days
017a 164-0350 Gear box housing $251.63 1 usually ships 1-5 days
017b 164-0351 Gear box assembly $558.03 1 (OEM) usually ships 1-5 days
017c 991-5115 Gear box assembly $167.61 1 (NON-OEM) (also need to order 017d) usually ships 14-21 days
017d 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 (needed with 017c) ships same day
018 164-0349 Oil seal $24.92 1 usually ships 1-5 days
019 164-0328 Washer 1 7/8 wave $4.36 1 usually ships 18-33 days
020 N/A Not available Call for price 1 usually ships 3-26 days
021 991-1505 Carbon brush (sold individually) $7.58 1 ships same day
023 N/A Not available Call for price 4 Brush board assembly usually ships 3-26 days
024a 164-0337 Top end bell (OBSOLETE) $19.42 4 usually ships 1-5 days
024b N/A Not available Call for price 1 Commutator bracket assembly usually ships 3-26 days
025 164-0345 Strain relief (OBSOLETE) $2.38 1 usually ships 1-5 days
026 164-1096 Positive lead $64.52 1 usually ships 18-33 days
