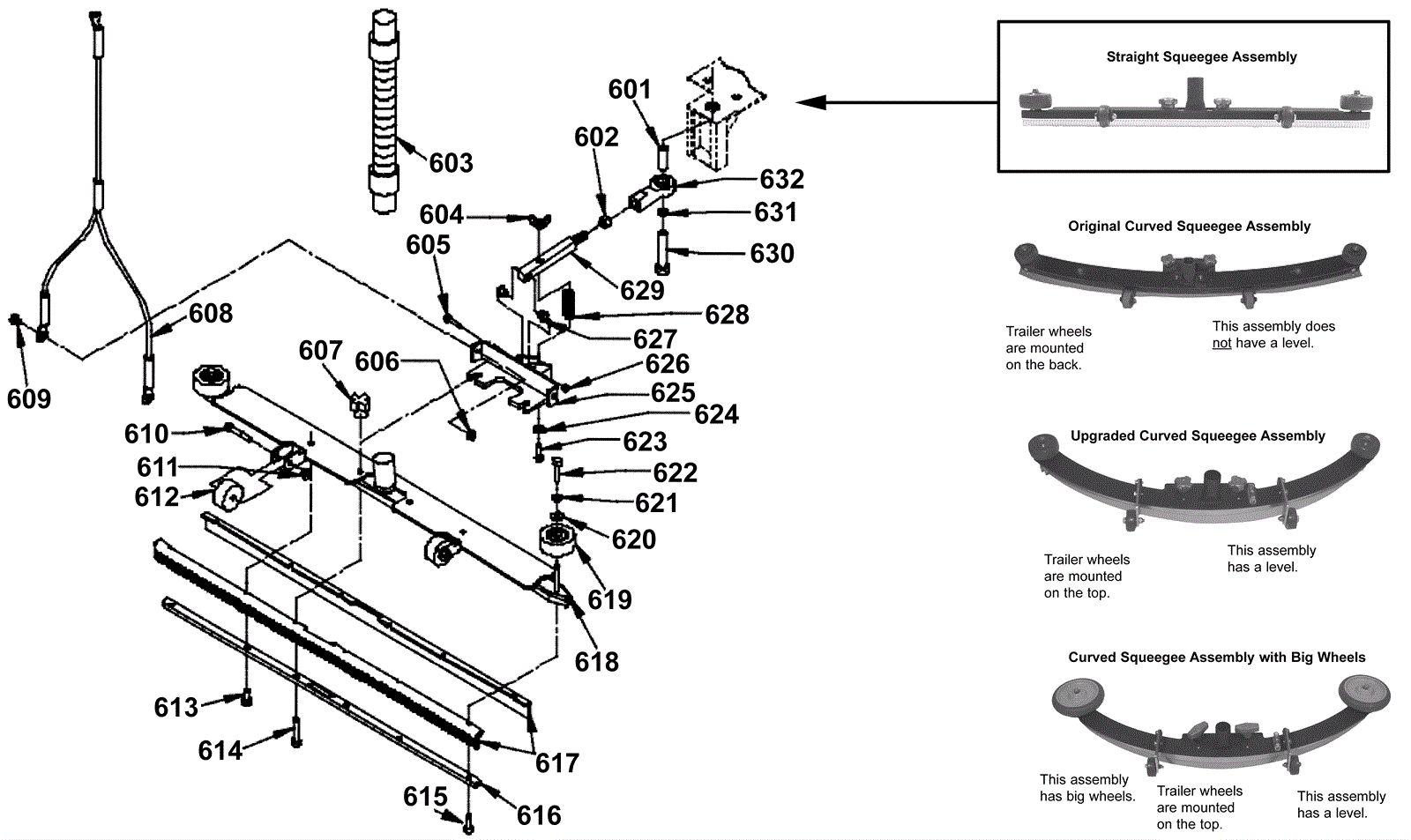

Squeegee Assembly

#PartDescription ReqNotesAvailability
601 164-0855 Squeegee pivot spacer 1
602 999-0134 Nut 1/2-20 hex jam plain finish 1
603a 164-0089 Squeegee vacuum hose with cuffs 1
603b 991-8568 Squeegee vacuum hose 1 (NON-OEM)
603c 991-8568 Squeegee vacuum hose 1 (NON-OEM)
604 999-0133 Nut 5/16-18 wing zinc plated 1
605 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated 1
606 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
607 164-1565 Knob 2
608 164-2012 Squeegee cable 1
609 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 2
610 999-0108 Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated 1
611 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
612 991-2005 Small roller wheel (gray) 1
613 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 1
614 999-0179 Screw 5/16-18 x 1 1/2 socket head alloy plain finish 1
615 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 2
616 164-0250 Inner channel for Wrangler 26 and 2625 1
617a 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear) 1
617b 164-1150 Squeegee blade 27 inch (pkg of 2) 1
618a 164-0243 Squeegee weldment (narrow mount) 1
618b 164-0247 Squeegee assembly (narrow mount) 1
619 991-2009 3 inch bumper wheel 2
620 999-0024 Washer 5/16 flat stainless steel 2
621 999-0105 Washer 5/16 external star lock zinc plated 2
622 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish 2
623 999-0283 Bolt 5/16-18 x 2 1/4 hex head grade 5 zinc plated 1
624 999-0028 Washer 5/16 split lock plain finish 1
625 164-2138 Squeegee bracket plated 1
626 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
627 164-0858 Flanged bushing 2
628 164-0856 Height adjustment spring 1
629 164-0859 Squeegee shaft 1
630 999-0128 Bolt 1/2-13 x 3 hex head grade 5 zinc plated 1
631 164-6007 Spacer 1
632 164-0238 Ball joint 1
N/S 164-6229 14 inch squeegee tool assembly
