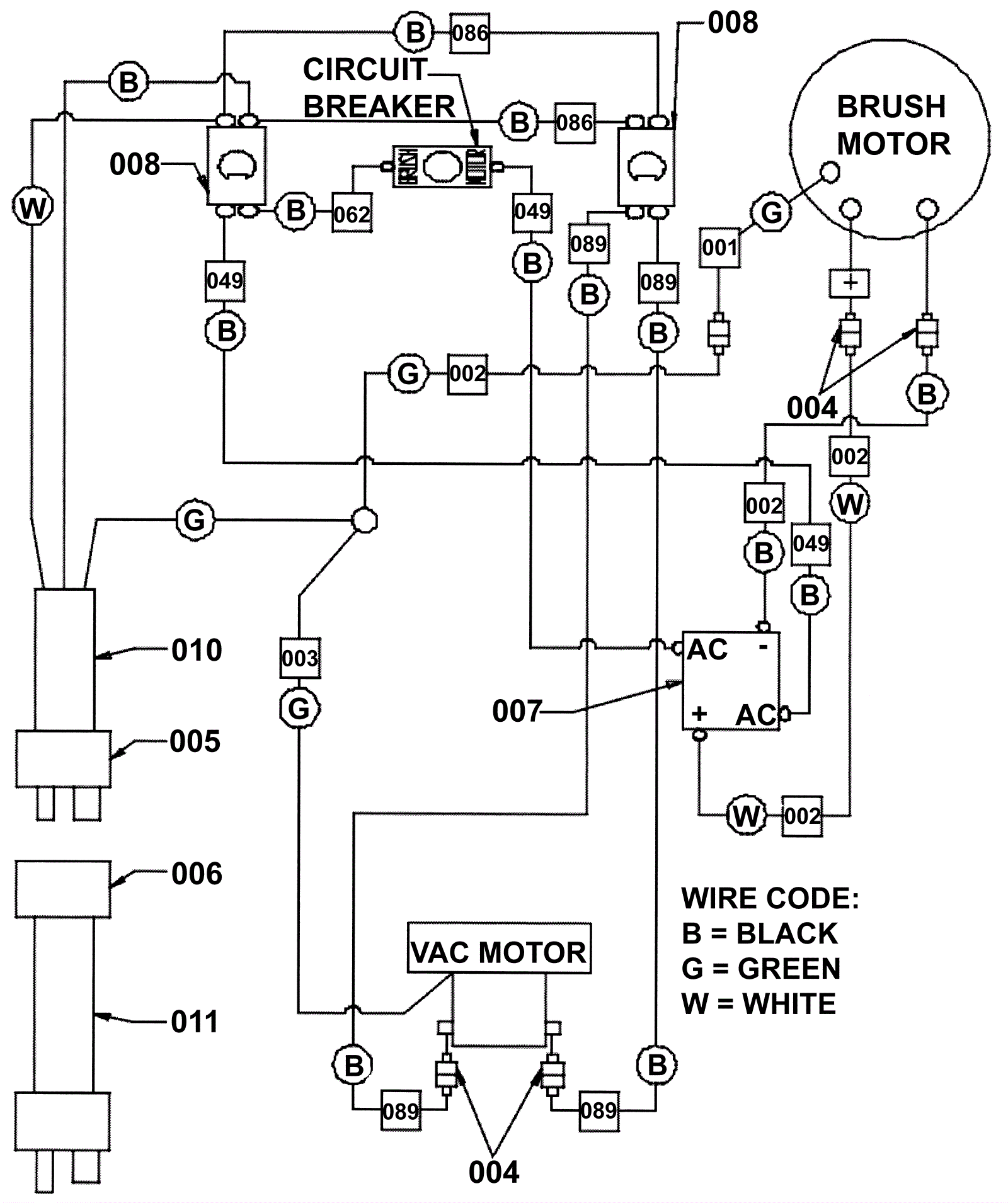

WRANGLER 20E Electrical Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 164-2431 Ground wire 115V/ 240V IMP-W20 (OBSOLETE) $2.18 1 usually ships 1-5 days
002 164-2447 Motor cord, 115 & 230 , W20E (OBSOLETE) $10.62 1 usually ships 1-5 days
003 164-4648 Green wire $3.03 1 usually ships 1-5 days
004 164-0553 Male push on coupler $3.20 4 ships same day
005 164-4493 Male twist lock (OBSOLETE) $70.13 1 usually ships 1-5 days
006 164-4495 Female twist lock $197.77 1 usually ships 1-5 days
007 163-0063 240V rectifier $10.65 1 ships same day
008 164-0290 Toggle switch $14.63 1 ships same day
009 164-2425 Circuit brkr, 240V/ 5Amp - W20E $111.93 1 usually ships 1-5 days
010 164-2414 Stub cord, w/ male twist lock (OBSOLETE) Call for price 1 usually ships 1-5 days
011a 164-3128 14/3 power cord 75 ft $224.43 1 usually ships 19-25 days
011b 991-5001 14/3 extension cord 50 foot (yellow) $103.23 1 (NON-OEM) ships same day
049 164-0687 Wire from forward/reverse switch to deadman switch $4.18 2 usually ships 1-5 days
062 164-0700 Wire from vacuum switch to brush switch $4.18 1 usually ships 19-25 days
086 164-3262 Wire #18 x 10 inch      #86 (OBSOLETE) $6.80 2 usually ships 1-5 days
089 N/A Not available Call for price 2 Wire lead usually ships 3-26 days
N/S 164-2353 Vacuum motor $261.75 1 ships same day
N/S 164-2415 17 inch stub cord, wrangler 20 E, 240V (OBSOLETE) $150.17 1 usually ships 1-5 days
N/S 164-2440 Gear mtr. imp. 3/4Hp 120Vac - W20 $2,141.54 1 usually ships 1-5 days
N/S 164-4562 Shuko cord 240v 75ft $160.00 1 usually ships 19-25 days
N/S 991-1621 10amp circuit breaker $78.33 1 ships same day
