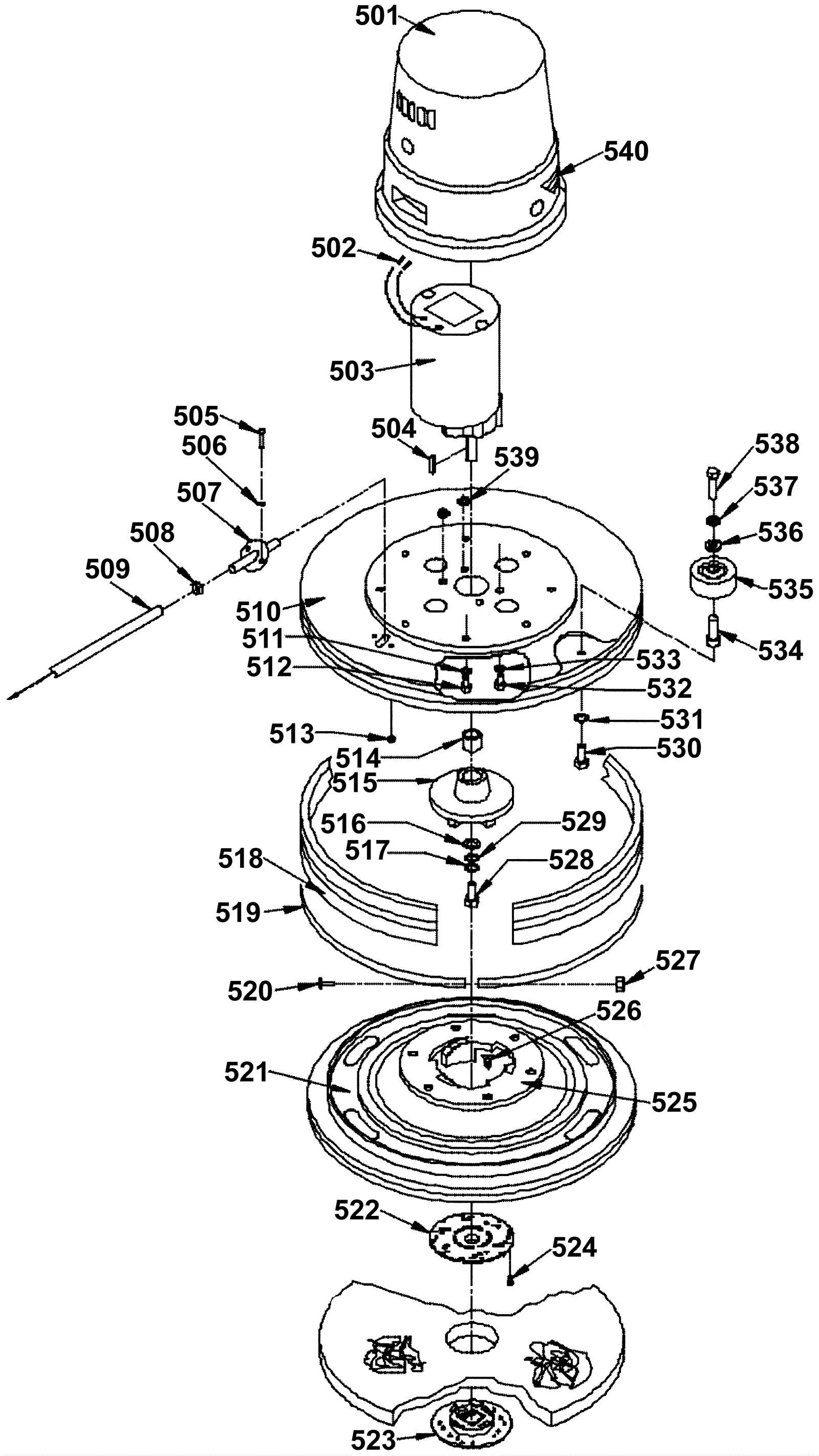

WRANGLER 20E Brush Head Assembly

#PartDescriptionPriceReqNotesAvailability
501 164-2443 Housing - Motor (Imperial) $208.12 1 usually ships 1-5 days
502 164-0553 Male push on coupler $3.04 2 ships same day
503 164-0834 24V brush gear motor assembly $1,362.19 1 usually ships 1-5 days
504 164-0132 Square keyway 1/4 x 1/4 $4.95 1 usually ships 1-5 days
505 164-9069 Screw 8-32 x 1/2 round head phillips $5.89 2 usually ships 1-5 days
506 999-0092 Washer #8 internal star lock zinc plated $0.99 2 ships same day
508 997-2001 Hose clamp $2.42 1 ships same day
509 991-1401 Clear vinyl tubing (sold by the inch) $0.55 1 usually ships 17-33 days
510 N/A Not available Call for price 1 Painted w-20 skirt usually ships 3-26 days
511 999-0028 Washer 5/16 split lock plain finish $0.99 8 ships same day
512 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 8 ships same day
513 999-0308 Nut 8-32 plain $0.99 2 ships same day
514 164-2445 Spacer $9.63 1 usually ships 8-23 days
515 164-2444 Clutch casting $138.80 1 usually ships 8-23 days
516 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
517 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
518 164-1780 Bumper guard - WR20 $53.64 1 usually ships 8-23 days
519 164-1781 Skirt band - WR20 $91.71 1 usually ships 8-23 days
520 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
521 996-0777 20 inch structural foam pad driver $245.73 1 ships same day
522a 991-2202 Big mouth pad holder set (blue) $17.75 1 ships same day
522b 991-2201 Center-Lok II pad holder - right hand thread (black) $28.62 1 (NON-OEM) ships same day
522b 991-2205 Deep lock ring and pad grip ring $21.53 1 (NON-OEM) usually ships 8-23 days
522c 991-2214 Center-Lok II pad holder - left hand thread (red) $21.69 1 (NON-OEM) ships same day
523a 991-2202 Big mouth pad holder set (blue) $17.75 1 ships same day
523b 991-2206 Center-Lok 3 pad holder $35.50 1 ships same day
523c 991-2201 Center-Lok II pad holder - right hand thread (black) $28.62 1 (NON-OEM) ships same day
523d 991-2205 Deep lock ring and pad grip ring $21.53 1 (NON-OEM) usually ships 8-23 days
523e 991-2214 Center-Lok II pad holder - left hand thread (red) $21.69 1 (NON-OEM) ships same day
524 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 3 ships same day
525a 996-0777 20 inch structural foam pad driver $245.73 1 ships same day
525b 991-2208 3 hole clutch plate (formerly 6 hole) $9.40 1 ships same day
526 N/A Not available Call for price 6 usually ships 3-26 days
527 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
528 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 1 ships same day
529 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
530 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish $0.99 1 ships same day
531 999-0105 Washer 5/16 external star lock zinc plated $0.99 1 ships same day
532 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
533 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
534 164-2404 Plated bumper wheel axle $26.73 1 usually ships 8-23 days
535 991-2009 3 inch bumper wheel $7.50 1 usually ships 7-17 days
536 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
537 999-0105 Washer 5/16 external star lock zinc plated $0.99 1 ships same day
538 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish $0.99 1 ships same day
540 164-9108 Color decal kit (OBSOLETE) $24.97 1 usually ships 1-5 days
