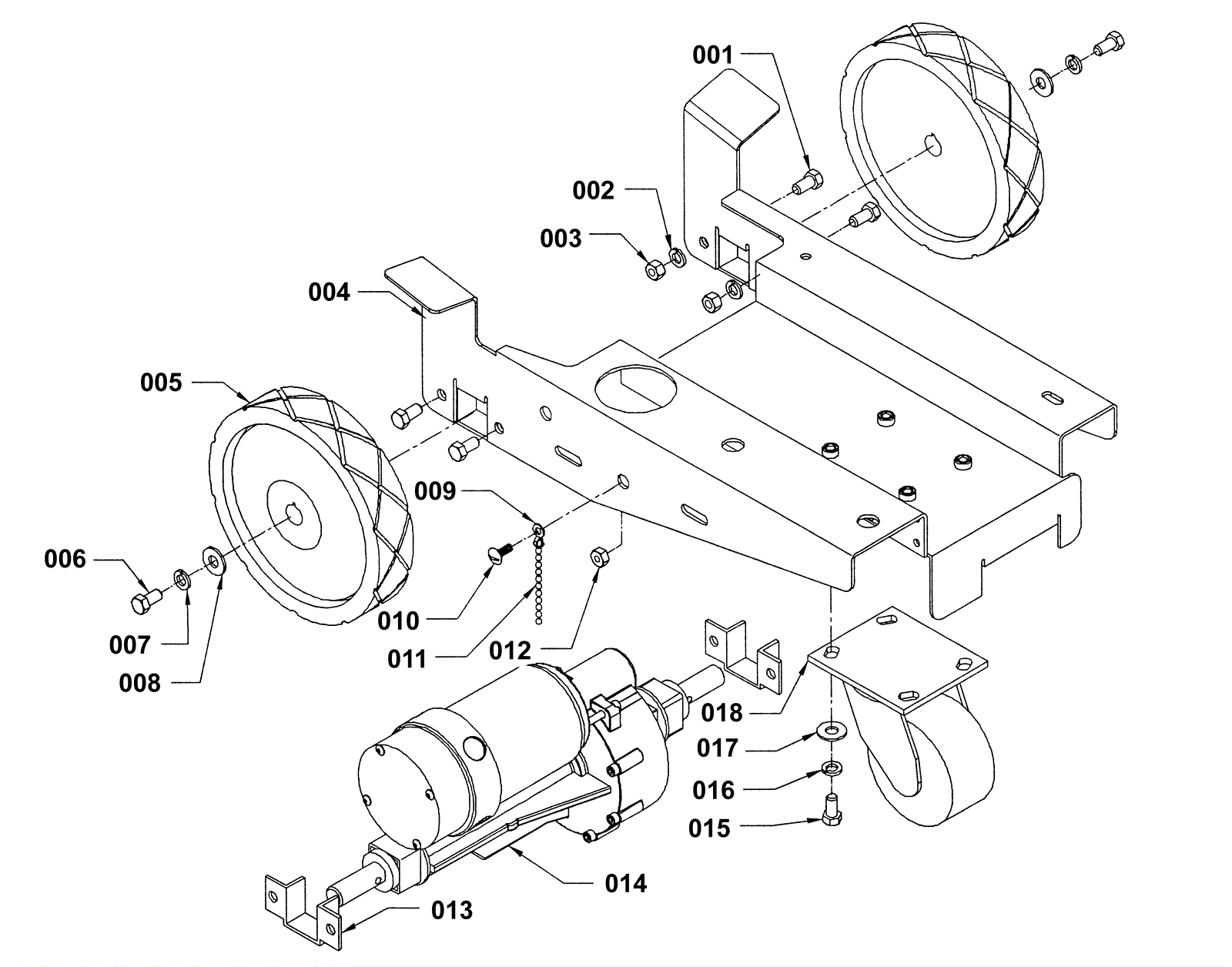

WRANGLER 2016B Wheel Assembly Wheel Drive

#PartDescriptionPriceReqNotesAvailability
001 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
002 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
003 999-0170 Nut 3/8-16 hex plain finish $0.99 4 ships same day
004 164-2488 Frame - painted (OBSOLETE) $235.40 1 usually ships 1-5 days
005 164-0058 Drive wheel $435.88 2 usually ships 8-23 days
006 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 2 ships same day
007 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
008 999-0033 Washer 7/16 SAE flat $0.99 2 ships same day
009 164-1502 End coupling $2.57 1 usually ships 1-5 days
010 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 1 ships same day
011 164-1503 8 inch round bead chain $3.04 8 in usually ships 1-5 days
012 999-0004 Nut 10-24 k-lock zinc plated $0.99 1 ships same day
013 164-2489 Transaxle bracket $35.81 2 usually ships 8-23 days
014 164-2479 Transaxle 18 inch (OBSOLETE) $1,973.79 1 usually ships 1-5 days
015 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 4 ships same day
016 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
017 999-0033 Washer 7/16 SAE flat $0.99 4 ships same day
018a 991-2006 Caster wheel assembly (red) $65.16 1 usually ships 7-17 days
018b 991-2008 4 inch caster wheel with bearings (red) $23.87 1 ships same day
018c 991-2008 4 inch caster wheel with bearings (red) $23.87 1 ships same day
