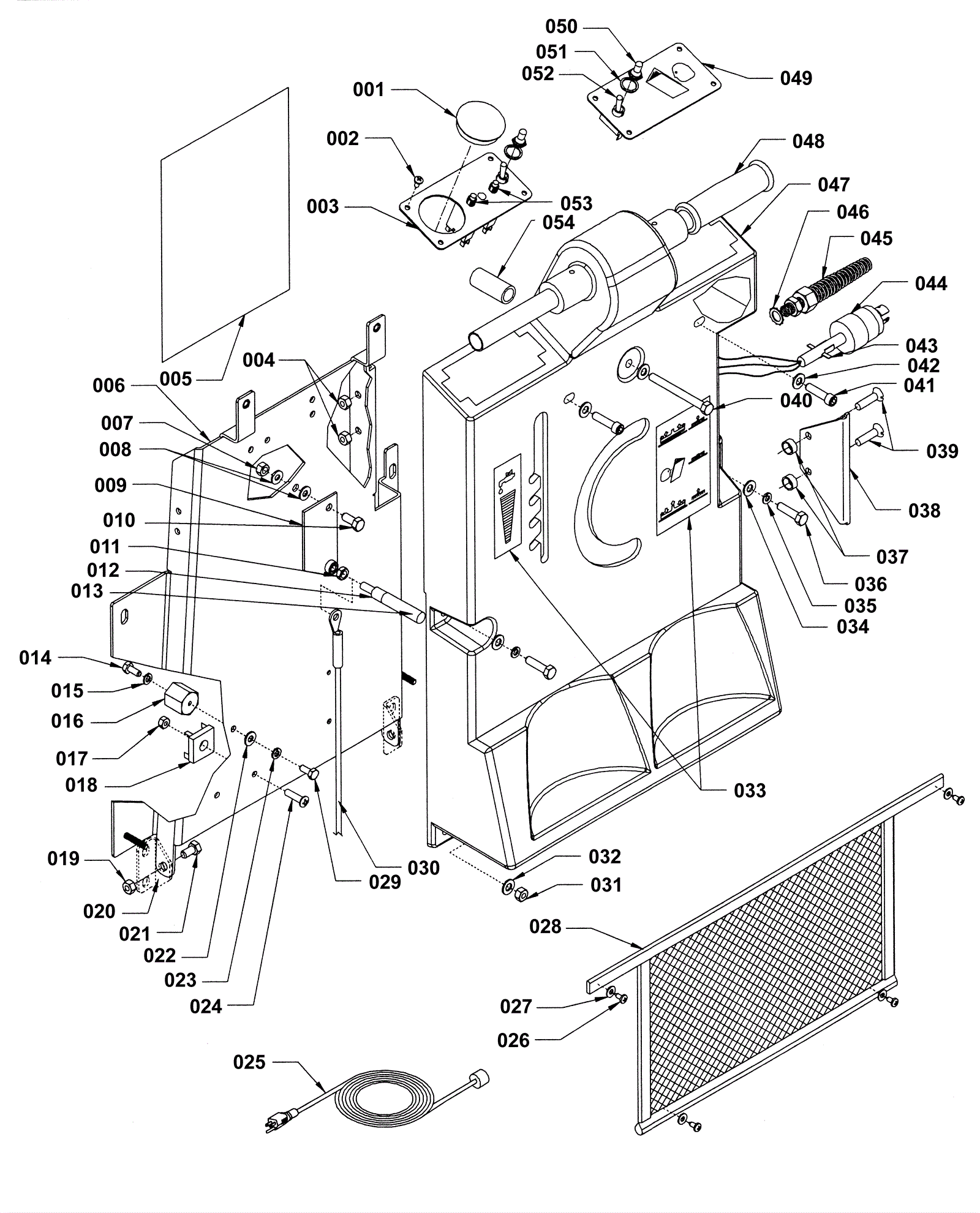

WRANGLER 2016B Handle and Electrical Components-Electrical Models Assembly

#PartDescriptionPriceReqNotesAvailability
001 164-2539 2 inch hole plug $9.68 1 usually ships 1-5 days
002 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 8 ships same day
003 164-2505 Dash plate - left $32.67 1 usually ships 1-5 days
004 164-6778 Nut 5/16-18 thin hex with nylon insert $6.34 2 usually ships 8-23 days
005 164-2535 Wire diagram decal - Electric 120V $48.57 1 usually ships 1-5 days
006 N/A Not available Call for price 1 Not available - Rear panel usually ships 3-26 days
007 164-6778 Nut 5/16-18 thin hex with nylon insert $6.34 1 usually ships 8-23 days
008 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
009 164-2491 Squeegee lift handle bracket $20.30 1 usually ships 8-23 days
010 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 1 ships same day
011 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
012 164-2490 Squeegee lift handle $12.54 1 ships same day
013 164-2524 Squeegee handle grip $2.38 1 usually ships 8-23 days
014 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
015 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
016 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
017 164-6793 Nut 10-32 hex with star lock washer $5.28 1 usually ships 1-5 days
018 163-0063 240V rectifier $10.65 1 ships same day
019 164-6778 Nut 5/16-18 thin hex with nylon insert $6.34 2 usually ships 8-23 days
020 164-2525 Hinge bracket $11.61 2 usually ships 8-23 days
021 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 2 ships same day
022 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
023 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
024 999-0314 Screw 10-24 x 3/4 round head phillips zinc plated $0.99 1 ships same day
025a 164-3128 14/3 power cord 75 ft $192.60 1 ships same day
025b 164-4495 Female twist lock $158.57 1 usually ships 1-5 days
025c 991-5001 14/3 extension cord 50 foot (yellow) $103.23 1 (NON-OEM) ships same day
026 999-0458 Screw 8 x 1/2 pan head phillips T-A sheet metal zinc $0.99 4 ships same day
027 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
028 164-2510 Handle net $51.26 1 usually ships 1-5 days
029 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
030 164-2012 Squeegee cable $37.03 1 usually ships 8-23 days
031 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 ships same day
032 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
033 164-2511 Decal kit - Multi color $67.10 1 usually ships 8-23 days
034 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
035 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
036 999-0639 Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated $1.82 2 ships same day
037 164-0234 Bushing $11.22 2 ships same day
038 164-2528 Bracket deck height $14.14 1 usually ships 1-5 days
039 999-0536 Screw 5/16-18 x 1 flat head socket plain finish $0.99 2 ships same day
040 999-0923 Bolt 5/16-18 x 3 1/4 hex head grade 8 plain finish $0.99 1 usually ships 1-5 days
041 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish $0.99 2 ships same day
042 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
043 164-5061 Cord clamp $4.75 1 usually ships 8-23 days
044 164-2533 Stub cord w/ male twist lock $134.70 1 usually ships 1-5 days
045a 164-5075 Cord strain relief $56.60 1 usually ships 8-23 days
045b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
046 164-5074 Strain relief nut $2.84 1 usually ships 8-23 days
047 164-2487 Handle - Pad assist $371.64 1 usually ships 8-23 days
048a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
048b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
049 164-2517 Dash plate - Right pad assist $23.10 1 usually ships 1-5 days
050 164-0287 Rubber switch boot $10.34 2 ships same day
051 999-0260 Washer 1/2 internal starlock $0.99 2 ships same day
052 164-0290 Toggle switch $14.63 2 ships same day
053 991-1621 10amp circuit breaker $70.43 2 ships same day
054 164-2509 Handle spacer $8.47 1 usually ships 1-5 days
