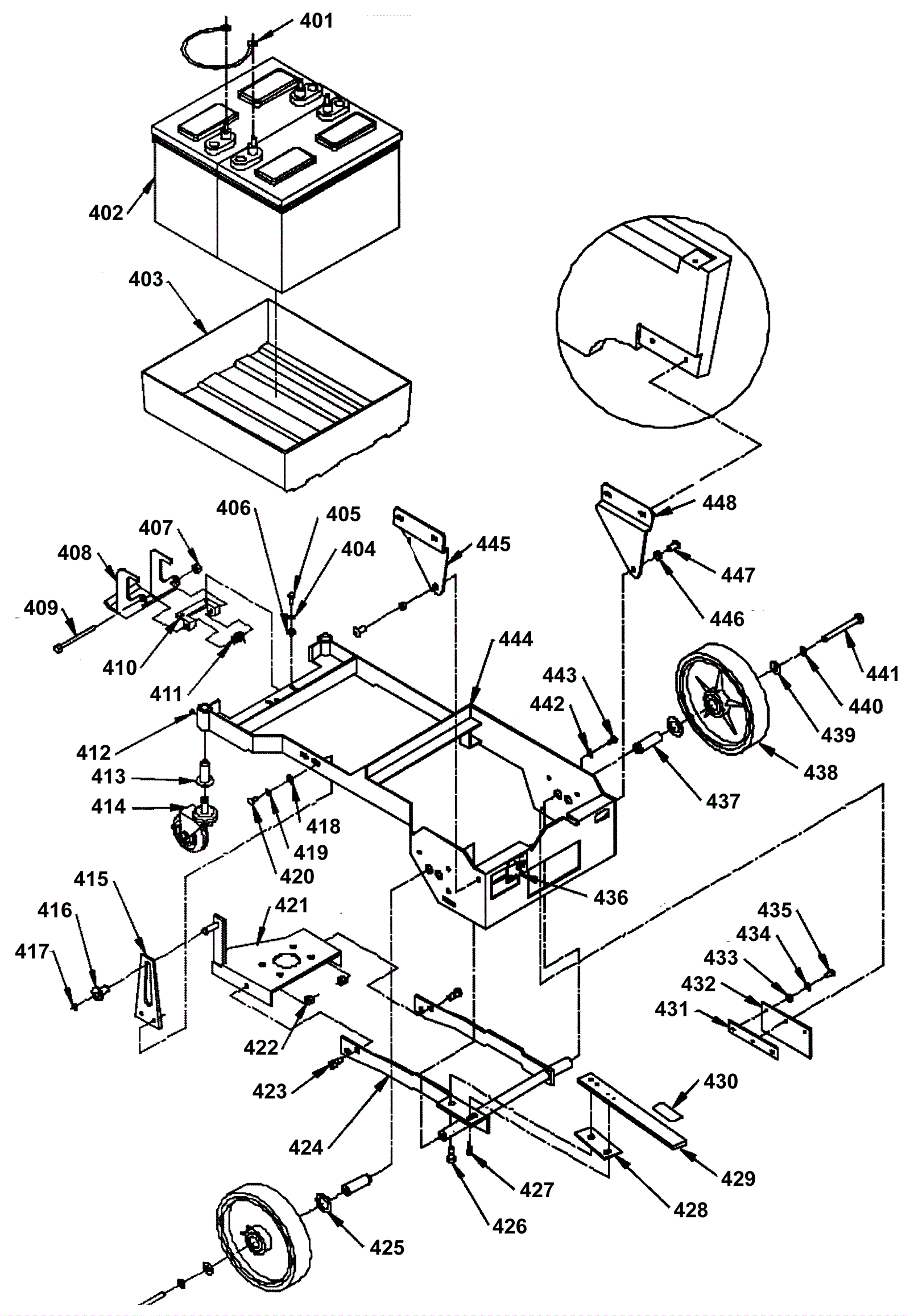

WRANGLER 1708CB Frame Assembly

#PartDescriptionPriceReqNotesAvailability
401 164-2282 Battery jumper $5.64 1 usually ships 19-25 days
402b 162-0042 12V 115Ah AGM battery (Group 31) $500.50 2 ships same day
403 164-2140 Battery tray $66.29 1 usually ships 19-25 days
405 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
406 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
407 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
408 164-2251 Foot pedal $104.49 1 ships same day
409 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated $1.39 1 ships same day
410 164-2254 Foot pedal tank release bracket $90.46 1 ships same day
411 164-2253 Foot pedal tank release spring $12.25 1 usually ships 19-25 days
412 999-0155 Screw 1/4-20 x 5/16 knurled point socket set plain finish $4.51 2 ships same day
413 164-2215 Plastic socket insert $4.95 2 usually ships 19-25 days
414a 164-2213 Caster - 7/16 x 1 3/4 stem $71.36 2 ships same day
414b 164-2214 Caster with insert $81.41 2 usually ships 19-25 days
415 164-2239 Brush motor guide bracket $46.93 1 usually ships 19-25 days
416 164-2190 3/8 nylon bushing $24.95 1 usually ships 19-25 days
417 164-1490 3/8 retaining ring $2.51 1 usually ships 19-25 days
418 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
419 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
420 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish $0.99 2 ships same day
421 164-2228 Brush motor tilt base $131.10 1 usually ships 19-25 days
422 164-6778 Nut 5/16-18 thin hex with nylon insert $7.38 2 usually ships 19-25 days
423 164-1458 Bolt 5/16-18 x 3/8 long socket head $11.67 2 usually ships 19-25 days
424 164-2229 Brush lift arm $210.33 1 usually ships 19-25 days
425 999-0863 Washer 3/4 x 14 gauge narrow bushing $0.99 2 ships same day
426 164-1458 Bolt 5/16-18 x 3/8 long socket head $11.67 1 usually ships 19-25 days
427 164-9066 Bolt 1/4 x 3/8 10-24 socket head shoulder $10.77 1 usually ships 19-25 days
428 164-2194 Foot pedal slide $9.11 1 usually ships 19-25 days
429 164-2230 Brush lift foot pedal $45.10 1 usually ships 19-25 days
430 164-1668 Pedal pad $5.59 1 usually ships 19-25 days
431 164-2260 Inside splash guard strap $39.82 1 usually ships 19-25 days
432 164-2261 Inside splash guard (OBSOLETE) $5.28 1 usually ships 1-5 days
433 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
434 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
435 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated $0.99 1 ships same day
436 164-2286 Wrangler 1708 / 2008 label kit $115.08 1 usually ships 1-5 days
437 164-2225 Axle $17.38 1 usually ships 19-25 days
438a 164-0029 8 inch wheel with bearings $327.82 2 ships same day
438b 991-9191 8"x1 5/8" RUBBER WHEEL W/3/4 BRGS $69.49 2 (NON-OEM) usually ships 18-24 days
439 999-0033 Washer 7/16 SAE flat $0.99 2 ships same day
440 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
441 164-9067 Bolt 3/8 - 16 x 3 1/2 hex $7.38 2 usually ships 19-25 days
442 999-0053 Washer #10 split lock plain finish $0.99 2 ships same day
443 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated $0.99 2 ships same day
444 164-2226 Main frame $503.42 1 usually ships 1-5 days
445 164-2231 Left tank pivot bracket $64.75 1 usually ships 19-25 days
446 164-4626 Bushing $4.18 2 ships same day
447 164-6790 Screw 3/8-16 x 3/4 button head socket $7.38 2 usually ships 19-25 days
448 164-2232 Right tank pivot bracket $64.75 1 usually ships 19-25 days
402a 162-0011 12V 105Ah wet battery (SNSR) $291.50 2 usually ships 27-29 days
402 162-0114 12V 50Ah AGM battery $250.48 2 ships same day
402a 162-0045 12V 140Ah AGM battery $693.69 2 ships same day
