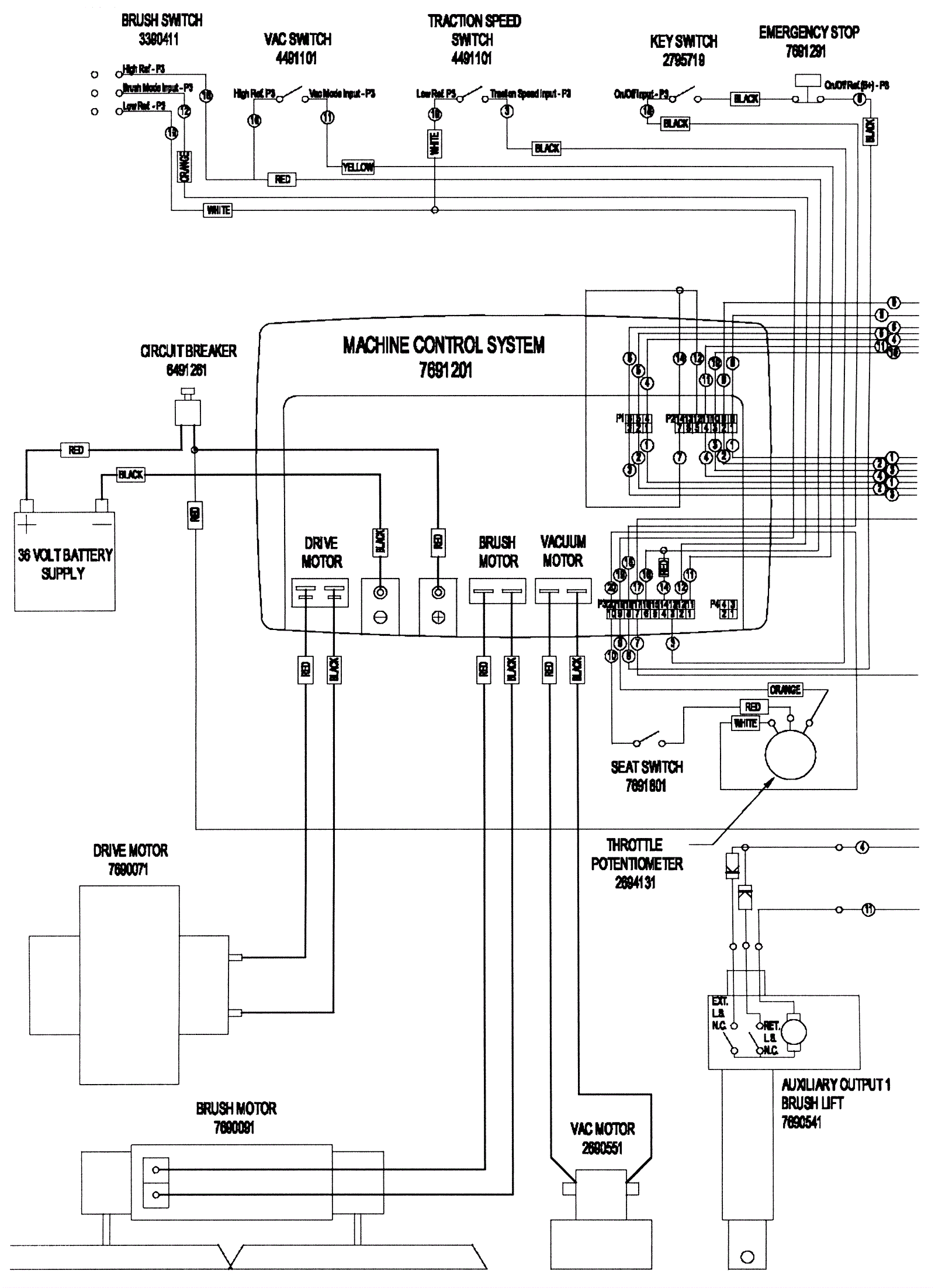

CHAMP ZS 29 Electrical Components A

#PartDescriptionPriceReqNotesAvailability
01a 998-0010 Battery jumper cable - ring type (red) $6.06 5 (For use with top, bolt type post batteries) ships same day
01b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $16.98 5 (NON-OEM) usually ships 18-24 days
02 991-1202 36V 3 stage vacuum motor tangential $127.10 1 usually ships 18-24 days
03 172-2039 5K potentiometer $66.03 1 ships same day
04 991-1222 Plastic covered carbon brush (sold individually) $12.59 2 usually ships 18-24 days
05 164-1660 Key switch and key $32.77 1 ships same day
06 164-1661 Key (pkg of 2) $27.95 1 usually ships 19-25 days
07 164-2000 Forward/reverse switch (6 prong) $42.77 2 usually ships 19-25 days
08 164-0023 Toggle switch $24.95 2 usually ships 19-25 days
09 991-1608 2amp circuit breaker $74.13 2 ships same day
10 991-1615 90amp circuit breaker $169.85 1 ships same day
11 164-1601 Drive wheel with motor assembly $5,302.72 1 usually ships 19-25 days
12 164-1725 36V brush motor assembly $3,503.46 1 usually ships 19-25 days
13 164-1191 Solenoid valve $206.13 1 ships same day
14 164-1623 Actuator kit (brush and squeegee)- DO NOT ORDER -SEE NOTE $919.53 2 usually ships 19-25 days
15 164-1561 Machine controller (NO LONGER AVAILABLE - See note) $1,283.32 1 usually ships 19-25 days
16 164-1663 LCD module $768.67 1 usually ships 19-25 days
17 164-1656 Back-up alarm $135.72 1 usually ships 19-25 days
18 164-2024 Emergency stop $154.56 1 usually ships 19-25 days
19 164-2025 Emergency stop block (red button) $109.05 1 (for use with Curtis Control Board 164-0070) usually ships 19-25 days
20 164-1753 Wiring assembly (control board to controller) $76.15 1 usually ships 1-5 days
21 164-1662 Push button switch $73.54 2 usually ships 19-25 days
22 164-1754 Wiring assembly (emergency stop to key switch) $6.49 1 usually ships 19-25 days
23 164-1755 Wiring assembly (controller to LCD) $44.75 1 usually ships 1-5 days
24 164-1321 Wire assembly $140.38 1 ships same day
25 164-1360 Wiring assembly (controller to brush) $81.87 1 usually ships 19-25 days
26 164-1756 Wiring assembly (controller to drive motor) $102.56 1 usually ships 19-25 days
27 164-1757 Wiring assembly (battery to machine control) $176.87 1 usually ships 19-25 days
28 164-1758 Main wiring harness $366.16 1 usually ships 1-5 days
29 164-1767 Wiring assembly (auxilary harness to controller) $253.33 1 usually ships 1-5 days
30 164-1760 Wiring assembly (LCD to switch) $123.28 1 usually ships 19-25 days
31 164-1658 Ground wire $54.95 2 usually ships 1-5 days
32 164-1761 Back-up wire $6.41 1 usually ships 1-5 days
33 164-1762 Wiring assembly (high reference) $5.59 1 usually ships 1-5 days
34 164-1763 Wiring assembly (low reference) $5.59 1 usually ships 1-5 days
35 164-1764 Wiring assembly (actuator to deck lift) $48.28 1 from the brush actuator to the deck lift, bypassing the control board usually ships 1-5 days
36 164-1631 Seat switch $98.02 1 usually ships 19-25 days
37 164-1765 Wiring assembly (overhead light) $429.28 1 usually ships 1-5 days
38 164-1766 Wiring assembly (headlight with bracket) $659.12 1 Includes bracket usually ships 1-5 days
39 164-1767 Wiring assembly (auxilary harness to controller) $253.33 1 usually ships 1-5 days
40 164-1768 Flash tube $56.65 1 usually ships 1-5 days
41 164-1769 Headlight bulb $84.48 1 usually ships 1-5 days
42 164-1560 Carbon brush (sold individually) $50.64 4 ships same day
43 164-1604 Carbon brush kit $461.41 4 ships same day
44 164-1622 Actuator setting instructions $0.99 1 usually ships 1-5 days
45 164-1419 Wire tie $7.38 1 usually ships 19-25 days
46 164-4612 Wire tie $7.38 5 usually ships 19-25 days
47 164-1730 36V brush motor assembly $3,940.84 1 ships same day
48 164-1425 36V vacuum motor kit $1,550.95 1 usually ships 1-5 days
49 164-1770 Input wire (brush speed) $5.90 1 usually ships 1-5 days
50 164-1354 Machine controller $1,735.44 1 usually ships 19-25 days
51 164-7293 36V 3 stage vacuum motor (motor only) $333.64 Vac motor ONLY usually ships 19-25 days
