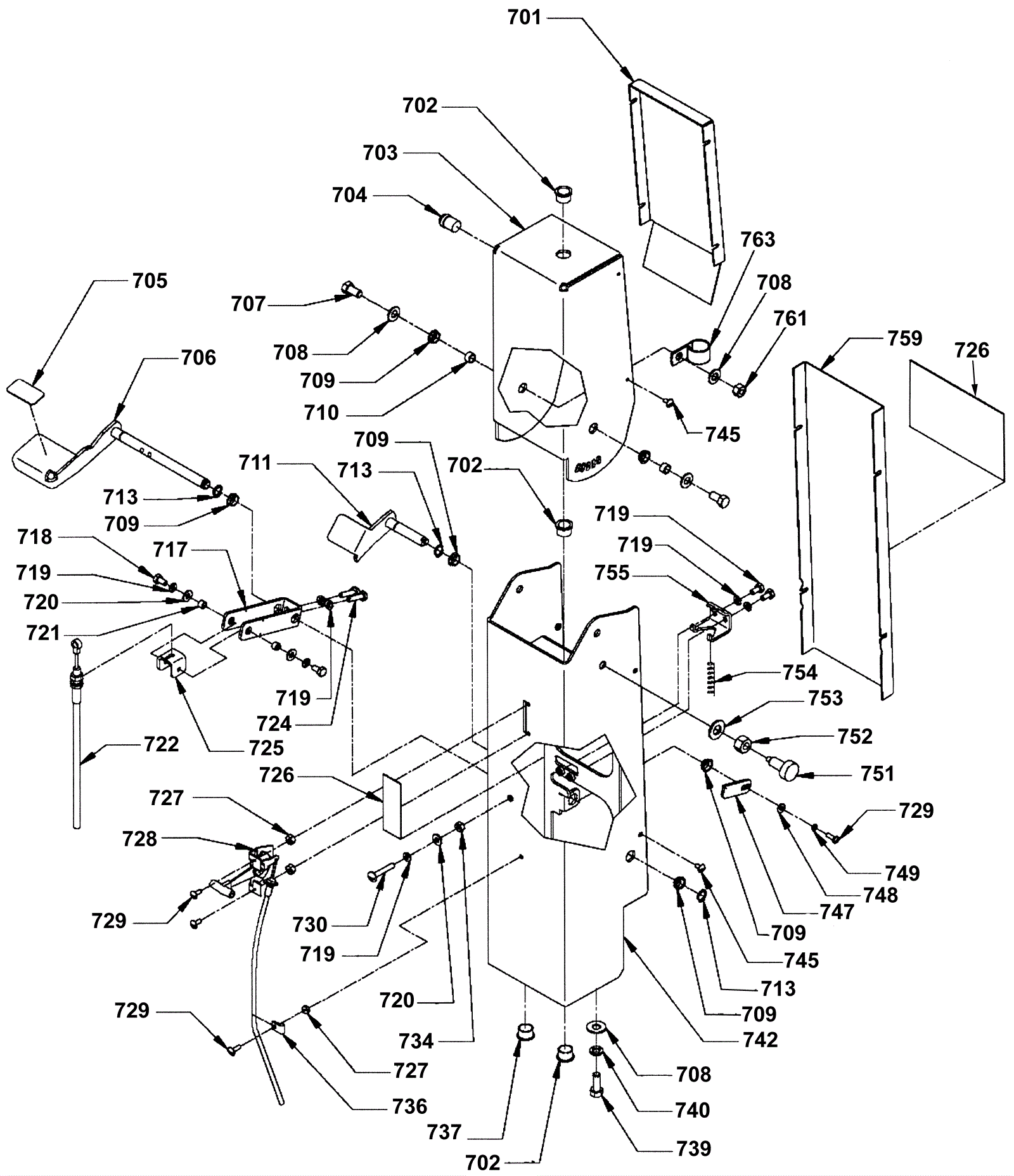

Steering Column Assembly

#PartDescription ReqNotesAvailability
701 164-1666 Column cover 1
702 164-0519 Flanged bearing 3
703 164-1667 Upper column 1
704 164-1662 Push button switch 1
705 164-1668 Pedal pad 1
706 164-1669 Brake pedal 1
707 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 2
708 999-0024 Washer 5/16 flat stainless steel 8
709 164-1513 Bushing 6
710 164-0151 Spacer 2
711 164-1670 Parking brake pedal (OBSOLETE) 1
713 164-0106 Retaining ring 3
717 164-1671 Bracket 1
718 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 4
719 999-0060 Washer 1/4 split lock plain finish 7
720 999-0016 Washer 1/4 flat plain finish 3
721 164-0136 Bushing 2
722 164-2021 Brake cable 1
724 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
725 164-1672 Pivot bracket 1
726 164-1654 Champ color label kit (OBSOLETE) 2
727 999-0004 Nut 10-24 k-lock zinc plated 3
728 164-1408 Solution lever and cable assembly - NLA - SEE NOTE 1
729 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated 4
730 999-0878 Screw 1/4-20 x 1 1/2 truss head slotted stainless steel 1
734 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
736 164-0232 P clamp 1
737 164-1673 Snap bushing 1
739 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
740 999-0034 Washer 3/8 split lock plain finish 4
742 164-1674 Steering column base (OBSOLETE) 1
745 999-0010 Screw 10-24 x 3/8 truss head slotted zinc plated 8
747 164-1675 Spring arm 1
748 999-0006 Washer 3/16 flat zinc plated 1
749 999-0053 Washer #10 split lock plain finish 1
751 164-1676 Steering plunger 1
752 999-0050 Nut 1/2-13 hex jam plain finish 1
753 999-0114 Washer 1/2 SAE flat 1
754 164-0981 Spring 3
755 164-1677 Spring bracket 1
759 164-1678 Base cover 1
761 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
763 164-0934 P clamp 1
