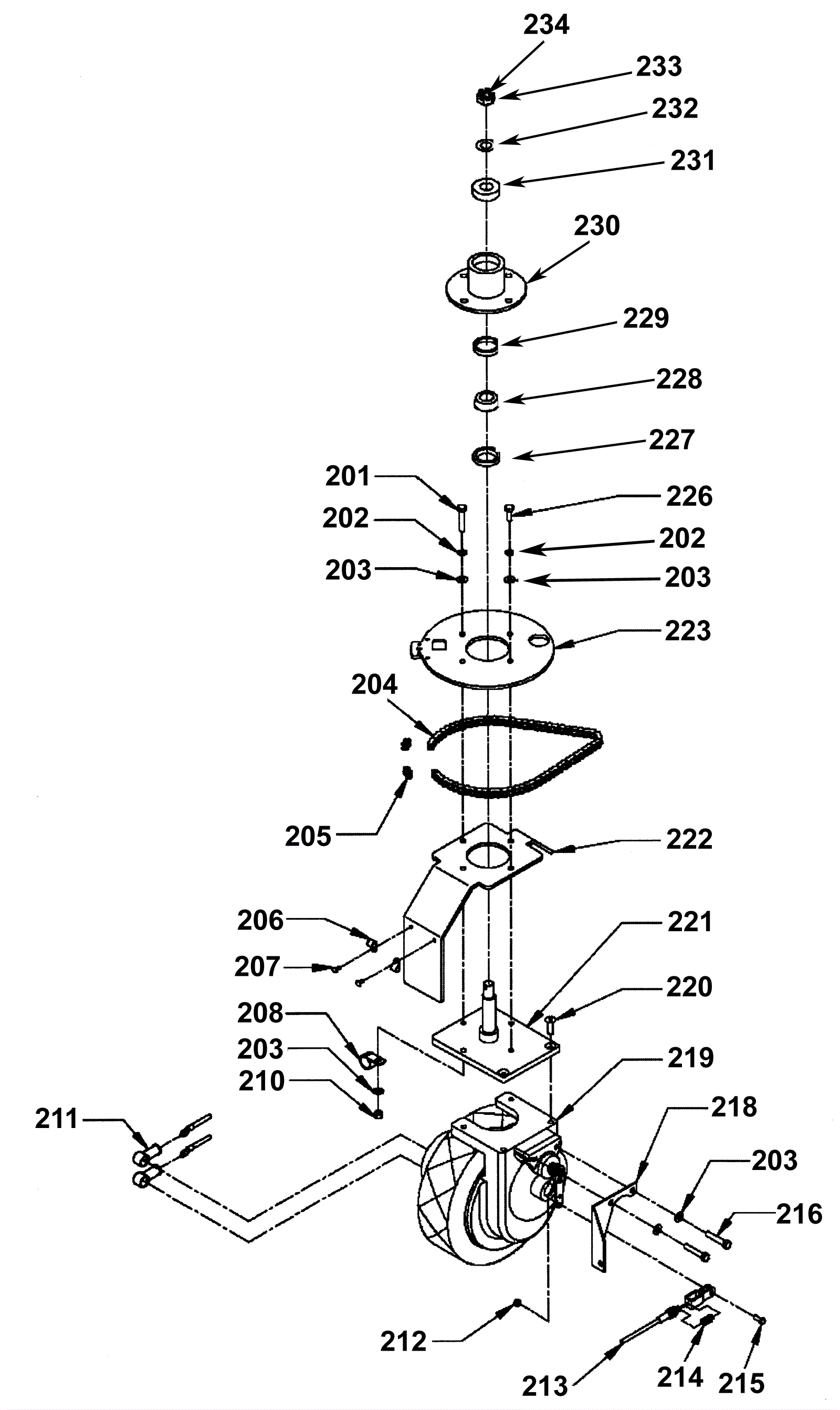

Drive Wheel Assembly

#PartDescription ReqNotesAvailability
201 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated 3
202 999-0034 Washer 3/8 split lock plain finish 4
203 999-0024 Washer 5/16 flat stainless steel 7
204 164-1597 Chain kit (chain with 2 master links) 1 Includes 1 of item 204 and 2 of item 205
205 991-0103 Master link 2
206 164-0232 P clamp 2
207 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 2
208 164-0934 P clamp 1
210 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
211 164-1598 Rubber terminal boot 2
212 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
213 164-2021 Brake cable 1
214 164-0856 Height adjustment spring 1
215 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 1
216 164-1599 Bolt 3/8-24 x 2 1/8 hex head 2
218 164-7064 Lower brake cable bracket 1
219a 164-1601 Drive wheel with motor assembly 1
219b 164-1518 12 inch front wheel 1
219c 164-1602 Drive wheel bolts and lockwasher (pkg of 10) 1
219d 164-1603 Drive motor (motor only) 1
219e 164-1604 Carbon brush kit 1
219f 164-1605 Brake rotor (OBSOLETE) 1
219g N/A Not available 1
220 999-0618 Screw 3/8-16 x 1 1/4 socket head stainless steel 2
221 164-1364 Steering yoke 1
222 164-1607 Fender 1
223 164-1608 Drive sprocket 1
226 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 1
227 164-1361 Seal 1
228 164-1362 Bearing cone (steering bottom) 1
229 164-1363 Bearing cup (steering bottom) 1
230 164-1609 Bearing block assembly 1 Includes items 227 thru 231
231 164-0332 Bearing (shaft end) 1
232 999-0863 Washer 3/4 x 14 gauge narrow bushing 1
233 999-0302 Nut 3/4-16 hex plain finish 1
234 164-1365 Cotter pin 1
