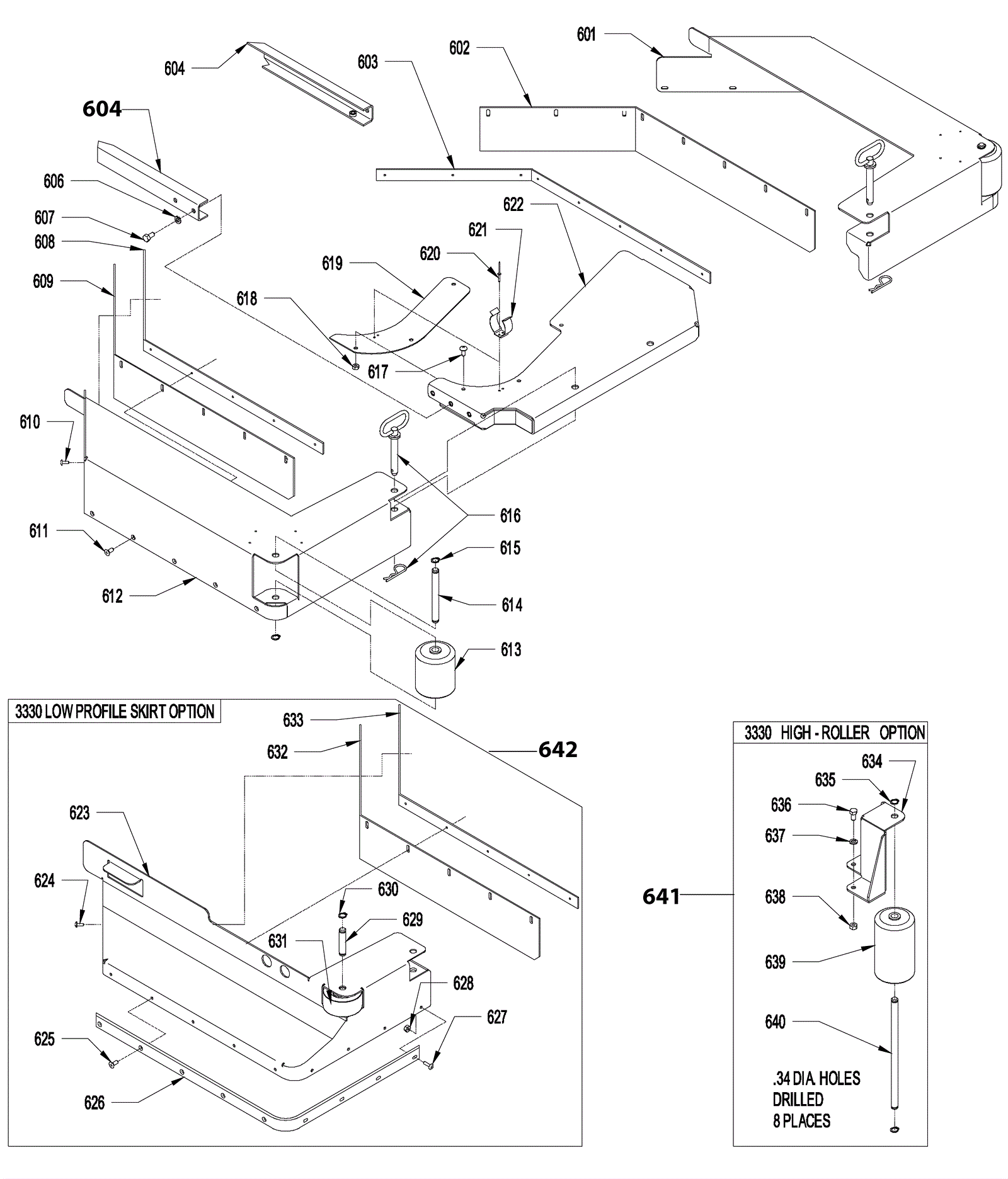

WRANGLER 2730 Skirt Assembly

#PartDescriptionPriceReqNotesAvailability
601a 164-1462 Left side skirt assembly $607.89 1 (2730 and 2730db) (includes 601a, 601c, 602b, 603a) usually ships 17-22 days
601b 164-1466 Left side skirt assembly $693.41 1 (3330 and 3330db) (includes 601d, 602b, 603b) usually ships 17-22 days
601c 164-1463 Left side skirt $325.77 1 (2730 and 2730db) (includes 601a, 601c, 602b, 603a) usually ships 1-5 days
601d 164-3269 Left side skirt $411.54 1 (3330 and 3330db) (includes 601d, 602b, 603b) usually ships 17-22 days
602a 164-1464 Left wiper $80.26 1 (2730 and 2730db) ships same day
602b 164-1468 Wiper (left or right) $85.77 2 (3330 and 3330db) usually ships 17-22 days
603a 164-1465 Left wiper strap $73.21 1 (2730 and 2730db) usually ships 17-22 days
603b 164-1469 Wiper strap $70.33 2 (3330 and 3330db) usually ships 17-22 days
604a 164-9485 Left hand frame channel $96.42 1 (2730 and 3330) (left side) usually ships 17-22 days
604b 164-1402 Right side frame channel $77.28 1 (2730 and 3330) (right side) usually ships 1-5 days
604c 164-9792 Frame channel $77.28 2 (2730db and 3330db) usually ships 17-22 days
606 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
607 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 1 usually ships 19-32 days
608 164-1472 Right wiper strap $73.21 1 usually ships 17-22 days
609 164-1473 Right wiper $81.80 1 usually ships 17-22 days
610a 164-9753 Screw #10-24 x 3/8 truss head (pkg of 10) $5.89 1 (2730 and 3330) usually ships 17-22 days
610b 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 2 (2730db and 3330db) ships same day
611 164-9772 Screw #10-24 x 1/2 flat head (pkg of 10) $6.34 1 usually ships 17-22 days
612a 164-1470 Right side skirt assembly $634.95 1 (2730 and 2730db) (includes 608-609, 612c) usually ships 17-22 days
612b 164-1474 Right side skirt assembly $710.20 1 (3330 and 3330db) (includes 608-609, 612d) ships same day
612c 164-1471 Right side skirt $352.69 1 (2730 and 2730db) (includes 608-609, 612c) usually ships 1-5 days
612d 164-1475 Right side skirt $428.29 1 (3330 and 3330db) (includes 608-609, 612d) usually ships 17-22 days
613 164-1461 Bumper wheel $27.05 1 usually ships 17-22 days
614 164-1394 Bumper wheel pin $9.69 1 usually ships 17-22 days
615a 164-0106 Retaining ring $2.96 2 (2730 and 3330) ships same day
615b 164-0106 Retaining ring $2.96 2 (2730db and 3330db) ships same day
616 164-0105 Skirt pin $26.93 1 ships same day
617 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 1 (3330) ships same day
618 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 (3330) ships same day
619 164-1478 Bumper extension $46.74 1 (3330) usually ships 1-5 days
620 997-1000 Pop rivet 1/8 x 5/8 $0.99 2 (3330 and 3330db) ships same day
621a 164-0101 Hose holder $12.31 1 (2730 and 3330) usually ships 12-18 days
621b 164-0101 Hose holder $12.31 1 (2730db and 3330db) usually ships 12-18 days
622a 164-1479 Bumper/skirt mount $296.67 1 (2730, 3330, and 2730db) usually ships 1-5 days
622b 164-7800 Bumper/skirt mount $201.71 1 (3330db) usually ships 17-22 days
623 164-1481 Right side skirt (low profile) $439.36 1 (3330 and 3330db) usually ships 17-22 days
624a 164-9753 Screw #10-24 x 3/8 truss head (pkg of 10) $5.89 1 (3330) (low profile skirt) usually ships 17-22 days
624b 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 3 (3330db) (low profile skirt) ships same day
625 999-0695 Screw 10-24 x 5/8 flat head phillips zinc plated $0.99 1 (3330 and 3330db) (low profile skirt) ships same day
626 164-1482 Skirt bumper (low profile) $47.05 1 (3330 and 3330db) (low profile skirt) usually ships 1-5 days
627a 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 1 (3330) (low profile skirt) ships same day
627b 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 4 (3330db) (low profile skirt) ships same day
628 164-5000 Hex nut (pkg of 10) $6.34 1 (3330 and 3330db) (low profile skirt) ships same day
629 164-0824 Bumper wheel axle $11.02 1 (3330 and 3330db) (low profile skirt) usually ships 17-22 days
630a 164-0106 Retaining ring $2.96 2 (3330) (low profile skirt) ships same day
630b 164-0106 Retaining ring $2.96 2 (3330db) (low profile skirt) ships same day
631a 991-2009 3 inch bumper wheel $9.39 1 (3330) (low profile skirt) usually ships 17-22 days
631b 991-2009 3 inch bumper wheel $9.39 1 (3330db) (low profile skirt) usually ships 17-22 days
632 164-1468 Wiper (left or right) $85.77 1 (3330 and 3330db) (low profile skirt) usually ships 17-22 days
633 164-1469 Wiper strap $70.33 1 (3330 and 3330db) (low profile skirt) usually ships 17-22 days
634 164-3270 Bracket, roller pin - painted $59.18 1 (3330 and 3330db) (optional) (1 per skirt) usually ships 1-5 days
635a 164-0106 Retaining ring $2.96 2 (3330) (high roller) ships same day
635b 164-0106 Retaining ring $2.96 2 (3330db) (high roller) ships same day
636 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 1 (3330 and 3330db) (high roller) usually ships 19-32 days
637 999-0028 Washer 5/16 split lock plain finish $0.99 1 (3330 and 3330db) (high roller) ships same day
638 164-9802 Nut 5/16-18 (pkg of 10) $5.89 1 (3330 and 3330db) (high roller) usually ships 17-22 days
639 164-0112 Bumper wheel $51.67 1 (3330 and 3330db) (high roller) usually ships 17-22 days
640 164-1483 Bumper axle $13.64 1 (3330 and 3330db) (high roller) usually ships 1-5 days
641 164-1476 High-roller kit $116.77 1 (3330 and 3330db) (optional) (1 per skirt) (includes 634-640) usually ships 1-5 days
642 164-1480 Skirt assembly (low profile) $576.35 1 (3330 and 3330db) (includes 623-633) (optional) usually ships 1-5 days
