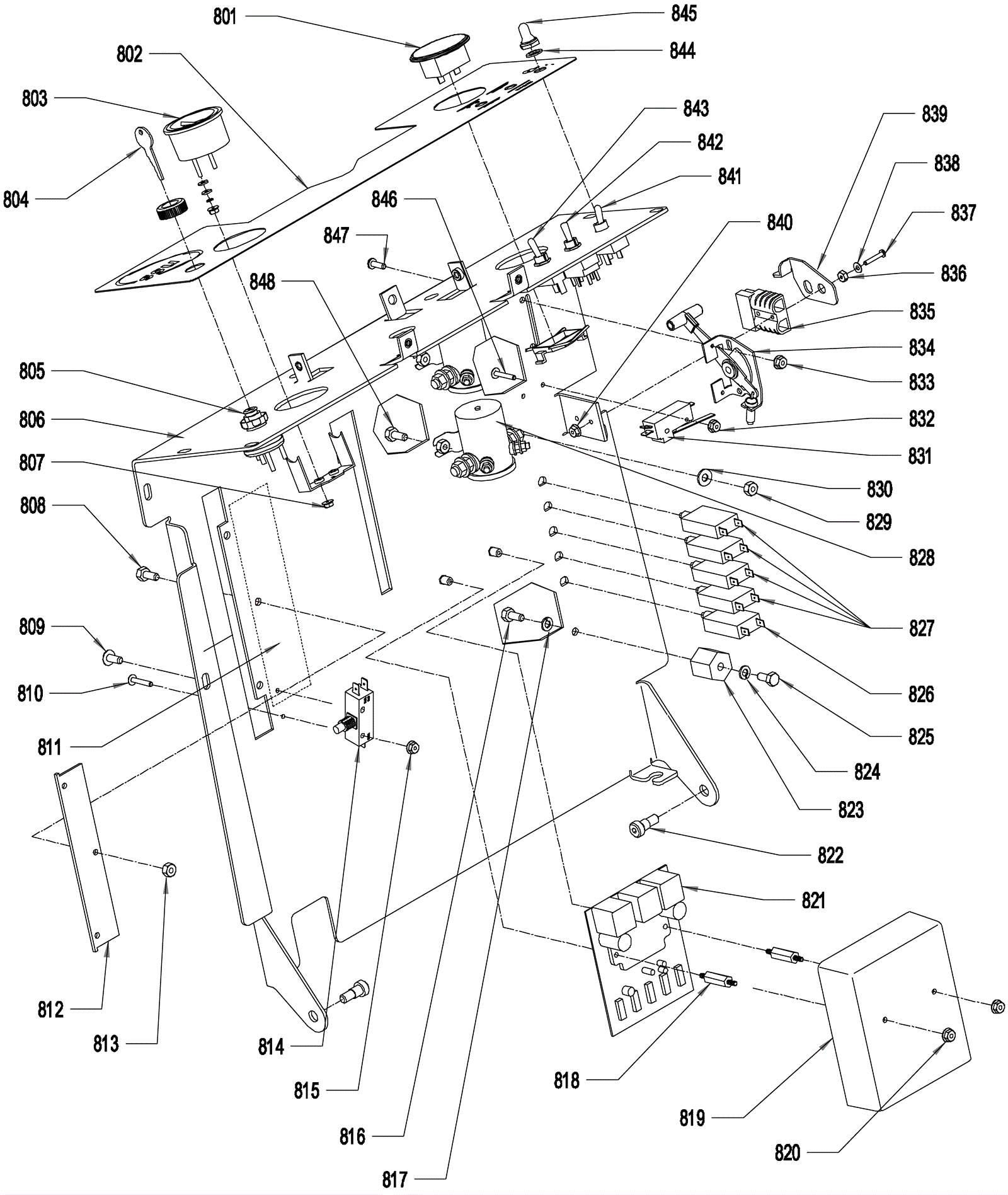

WRANGLER 3330 Rear Panel Assembly - Off-Board Charger

#PartDescriptionPriceReqNotesAvailability
801 164-1451 Hour meter $114.59 1 usually ships 8-23 days
802 164-1452 Control plate $79.64 1 usually ships 8-23 days
803 164-0022 Battery meter $120.95 1 usually ships 1-5 days
804 164-1453 Key $23.32 1 usually ships 1-5 days
805a 164-3288 Key switch - 2730/ 3330 - field $72.49 1 (includes 805b-805d) usually ships 1-5 days
805b 164-1660 Key switch and key $28.47 1 ships same day
805c 164-3286 Key switch kit instructions $2.18 1 usually ships 1-5 days
805d 164-3275 Optional key switch wiring harness $12.54 1 usually ships 1-5 days
806 N/A Not available Call for price 1 (rear panel) usually ships 3-26 days
807 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
808 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 3 ships same day
809 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 8 ships same day
810 999-0172 Screw 6-32 x 1 1/8 round head slotted zinc plated $0.99 2 ships same day
811 164-1456 Decal kit (OBSOLETE) $11.83 1 usually ships 1-5 days
812 164-1457 Brush handle lock plate $13.09 1 ships same day
813 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
814 164-0015 Switch $34.66 1 ships same day
815 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
816 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 1 ships same day
817 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
818 164-0314 Cover stand off $36.41 2 usually ships 8-23 days
819 164-0315 Speed control cover $39.33 1 usually ships 1-5 days
820 999-0308 Nut 8-32 plain $0.99 2 ships same day
821 164-0070 36V Curtis speed control $773.19 1 usually ships 8-23 days
822 164-1458 Bolt 5/16-18 x 3/8 long socket head $10.01 2 usually ships 8-23 days
823 164-0310 Insulated stand off $10.95 1 usually ships 8-23 days
824 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
825 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 1 ships same day
826 991-1608 2amp circuit breaker $59.40 1 ships same day
827 991-1609 25amp circuit breaker $55.05 4 ships same day
828 991-1223 36V solenoid contactor with 4 post $48.17 2 usually ships 5-16 days
829 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
830 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
831 164-0026 Snap switch $30.64 1 usually ships 8-23 days
832 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
833 999-0004 Nut 10-24 k-lock zinc plated $0.99 2 ships same day
834 164-1408 Solution lever and cable assembly (OBSOLETE) $30.03 1 usually ships 8-23 days
835a 164-1459 Rear panel wiring harness $201.19 1 (includes 835b and 835c) usually ships 1-5 days
835b 991-2104 50amp charger plug SB50 only (gray) $6.16 1 usually ships 3-14 days
835c 991-2105 SB50 50amp charger plug with pins (gray) $6.72 1 ships same day
836 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
837 999-0172 Screw 6-32 x 1 1/8 round head slotted zinc plated $0.99 2 ships same day
838 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
839 164-1460 Charge plug cover $10.89 1 usually ships 1-5 days
840 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
841 164-0290 Toggle switch $14.63 1 ships same day
842 164-2000 Forward/reverse switch (6 prong) $34.27 1 usually ships 8-23 days
843 164-0023 Toggle switch $19.97 1 ships same day
844 999-0260 Washer 1/2 internal starlock $0.99 3 ships same day
845 164-0287 Rubber switch boot $10.34 3 ships same day
846 999-0172 Screw 6-32 x 1 1/8 round head slotted zinc plated $0.99 2 ships same day
847 999-0008 Screw 10-24 x 5/8 round head slotted zinc plated $0.99 2 ships same day
848 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
