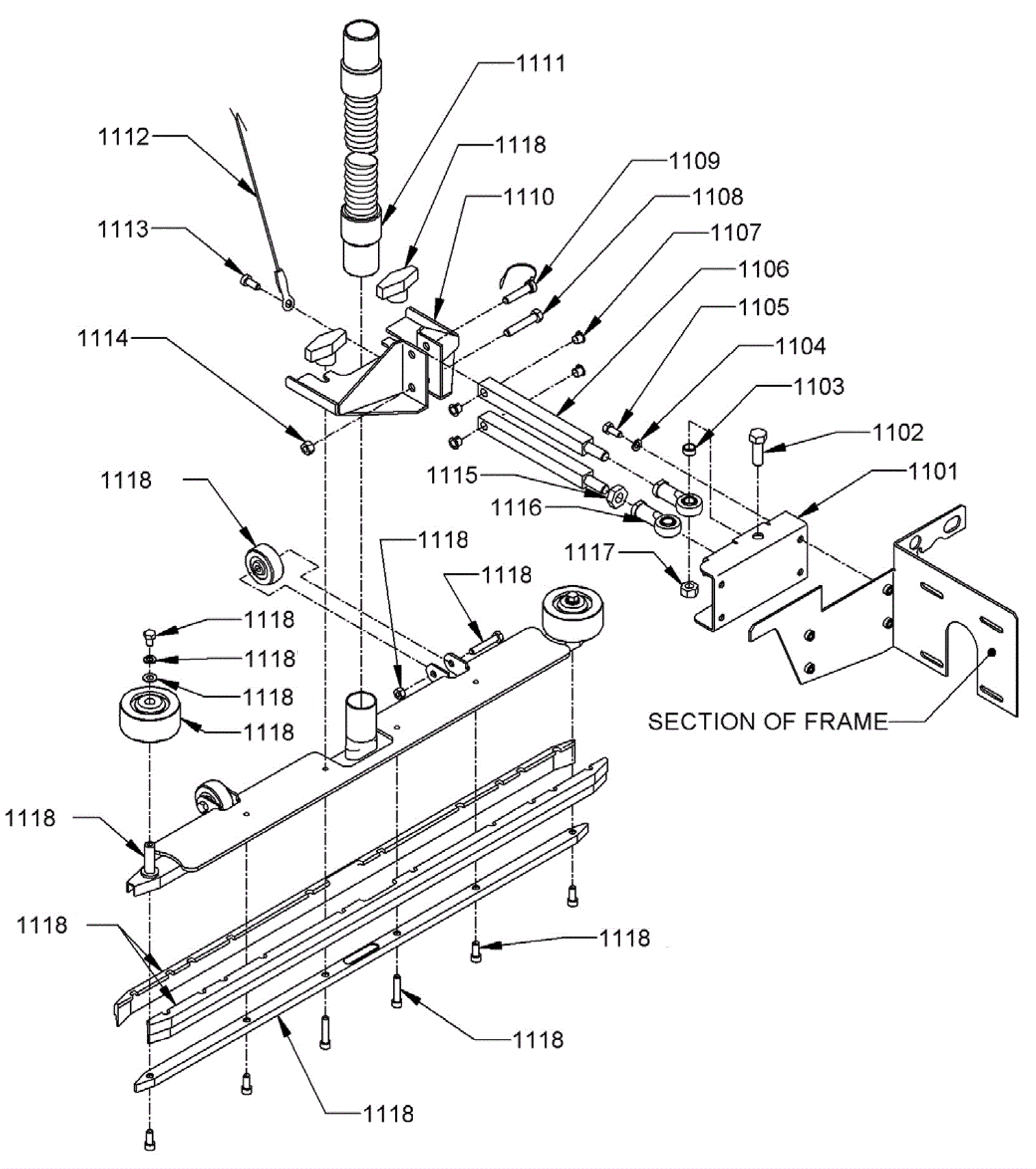

WRANGLER 3330 Squeegee Assembly - Straight

#PartDescriptionPriceReqNotesAvailability
1101 164-1448 Squeegee frame bracket $31.79 1 usually ships 1-5 days
1102 164-9068 Hex bolt $8.64 2 usually ships 8-23 days
1103 164-0234 Bushing $11.22 2 ships same day
1104 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
1105 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
1106 164-1449 Squeegee pivot rod $31.08 2 usually ships 8-23 days
1107 164-0858 Flanged bushing $3.56 4 ships same day
1108 164-9795 Bolt 3/8-16 x 2 hex head (pkg of 2) $8.69 1 usually ships 8-23 days
1109 164-0823 Clevis pin with retainer $10.01 1 (2730db and 3330db only) ships same day
1110 164-1450 Squeegee mount bracket $108.41 1 usually ships 8-23 days
1111a 164-0089 Squeegee vacuum hose with cuffs $47.80 1 ships same day
1111b 991-8568 Squeegee vacuum hose $43.73 1 (NON-OEM) ships same day
1112 164-1447 Squeegee lift cable $15.35 1 ships same day
1113 164-1172 Bolt 5/16 x 1/8 socket head shoulder $14.25 1 usually ships 8-23 days
1114 164-9796 Nut 3/8-16 hex nylok insert (pkg of 5) $9.10 1 usually ships 8-23 days
1115 999-0134 Nut 1/2-20 hex jam plain finish $0.99 1 ships same day
1116 164-0238 Ball joint $50.71 2 ships same day
1117 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
1118a 164-0247 Squeegee assembly (narrow mount) $947.12 1 (2730 and 2730db) (includes 1118c-1118n, 1118q-1118r, 1118u-1118z) ships same day
1118b 164-1098 Squeegee assembly (narrow mount) heavy duty $895.57 1 (3330 and 3330db) (includes 1118c-1118o, 1118s-1118z) usually ships 8-23 days
1118c 164-1565 Knob $21.84 2 (2730db and 3330db only) usually ships 8-23 days
1118d 164-1565 Knob $21.84 2 (2730 and 3330 only) usually ships 8-23 days
1118e 999-0639 Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated $1.82 ships same day
1118f 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 ships same day
1118g 991-2005 Small roller wheel (gray) $13.86 (2730db and 3330db only) usually ships 7-17 days
1118h 991-2005 Small roller wheel (gray) $13.86 2 (2730 and 3330 only) usually ships 7-17 days
1118i 999-0029 Bolt 5/16-18 x 1/2 hex head plain finish $0.99 ships same day
1118j 164-9277 Washer #10 5/16 star lock $5.89 usually ships 8-23 days
1118k 164-9775 Washer (pkg of 10) $9.63 usually ships 8-23 days
1118l 991-2009 3 inch bumper wheel $7.50 (2730db and 3330db only) usually ships 7-17 days
1118m 991-2009 3 inch bumper wheel $7.50 2 (2730 and 3330 only) usually ships 7-17 days
1118n 164-0243 Squeegee weldment (narrow mount) $379.28 usually ships 8-23 days
1118o 164-0245 Squeegee weldment (narrow mount) $414.26 1 (3330 and 3330db) usually ships 8-23 days
1118q 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear) $216.95 1 (2730db) ships same day
1118r 164-0041 Squeegee blade 32 inch linatex kit (red) (front and rear) $216.95 1 (2730) ships same day
1118s 164-0042 Squeegee blade 38 inch linatex kit (red) (front and rear) $268.39 (3330db) ships same day
1118t 164-0042 Squeegee blade 38 inch linatex kit (red) (front and rear) $268.39 1 (3330) ships same day
1118u 164-8019 Squeegee blade 38 inch urethane kit (front and rear) $268.57 usually ships 8-23 days
1118v 164-0250 Inner channel for Wrangler 26 and 2625 $73.24 usually ships 8-23 days
1118w 164-0251 Inner channel for Wrangler 27 and 33 $68.60 usually ships 8-23 days
1118x 999-1667 Screw 5/16-18 x 1 1/4 socket head stainless steel $1.85 2 (2730db and 3330db) ships same day
1118y 999-0131 Screw 5/16-18 x 1 1/2 socket head stainless steel $2.86 2 (2730 and 3330 only) ships same day
1118z 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 ships same day
1118aa 164-1565 Knob $21.84 2 (2730 and 3330 only) usually ships 8-23 days
