| # | Part | Description | Price | Req | Notes | Availability |
|---|

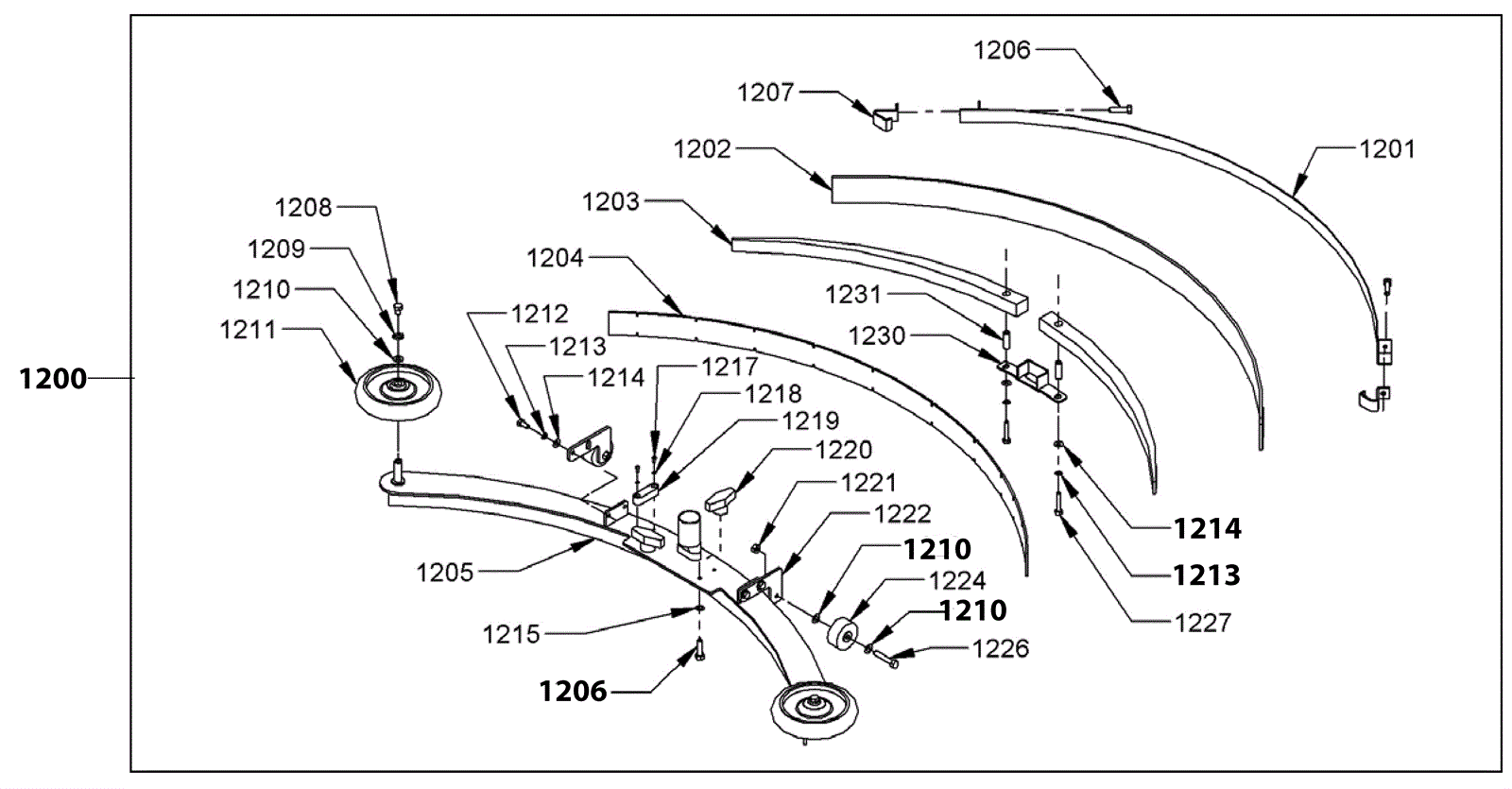

1200a |
164-1445
|
Squeegee assembly curved |
$1,233.21
|
1 |
(3330, 2730db, and 3330db) (includes 1201a,1202a-1202b, 1203a, 1204a, 1205a, 1206-1231) |
usually ships 19-25 days |
1200b |
164-1445
|
Squeegee assembly curved |
$1,233.21
|
1 |
(2730) (includes 1201b, 1202c, 1203b, 1204b, 1205b) |
usually ships 19-25 days |
1201a |
164-1124
|
Rear securing strap |
$170.72
|
1 |
(3330, 2730db, and 3330db) |
usually ships 19-25 days |
1201b |
164-1123
|
Rear securing strap Wrangler 27 |
$139.69
|
1 |
(2730) |
usually ships 1-5 days |
1202a |
164-6834
|
Squeegee blade 47 inch rear linatex |
$119.05
|
1 |
(3330, 2730db, and 3330db) |
ships same day |
1202b |
164-1127
|
Squeegee blade 46 inch curved gum rubber rear (tan) |
$21.27
|
1 |
(3330) |
ships same day |
1202c |
164-1126
|
Squeegee blade 43 inch curved gum rubber rear (tan) |
$50.51
|
1 |
(2730) |
usually ships 19-25 days |
1202d |
991-8579
|
Squeegee blade gum rubber rear (red) |
$69.49
|
1 |
(non-oem) |
usually ships 18-24 days |
1202e |
164-8018
|
Squeegee blade 46 5/16 inch curved urethane rear |
$91.74
|
1 |
|
usually ships 19-25 days |
1203a |
164-1129
|
Wedge |
$92.00
|
2 |
(3330, 2730db, and 3330db) |
usually ships 19-25 days |
1203b |
164-1128
|
End wedge Wranger 27 |
$76.10
|
2 |
(2730) |
usually ships 19-25 days |
1204a |
164-1131
|
Squeegee blade 44 1/2 inch curved neoprene front (black) |
$43.15
|
1 |
(3330, 2730db, and 3330db) |
ships same day |
1204b |
164-1130
|
Squeegee blade 40 5/8 inch curved gum rubber front (black) |
$35.33
|
1 |
(2730) |
usually ships 19-25 days |
1205a |
164-1446
|
Squeegee weldment |
$489.74
|
1 |
(3330, 2730db, and 3330db) |
usually ships 19-25 days |
1205b |
164-1444
|
Squeegee weldment |
$436.49
|
1 |
(2730) |
usually ships 19-25 days |
1206 |
999-0639
|
Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated |
$1.82
|
4 |
|
ships same day |
1207 |
164-1125
|
End hook |
$37.90
|
2 |
|
ships same day |
1208 |
999-0029
|
Bolt 5/16-18 x 1/2 hex head plain finish |
$0.99
|
2 |
|
ships same day |
1209 |
164-9277
|
Washer #10 5/16 star lock |
$5.89
|
2 |
|
usually ships 19-25 days |
1210 |
164-9775
|
Washer (pkg of 10) |
$12.06
|
6 |
|
usually ships 19-25 days |
1211 |
164-1441
|
6 inch squeegee bumper wheel |
$23.02
|
2 |
|
usually ships 19-25 days |
1212 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
$0.99
|
4 |
|
ships same day |
1213 |
999-0060
|
Washer 1/4 split lock plain finish |
$0.99
|
6 |
|
ships same day |
1214 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
6 |
|
ships same day |
1215 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
2 |
|
ships same day |
1217 |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
$0.99
|
2 |
|
ships same day |
1218 |
999-0051
|
Washer #6 medium split lock |
$0.99
|
2 |
|
ships same day |
1219 |
164-1136
|
Squeegee level |
$15.33
|
1 |
|
usually ships 19-25 days |
1220a |
164-1565
|
Knob |
$25.47
|
2 |
(2730db and 3330db) |
ships same day |
1220b |
164-1565
|
Knob |
$25.47
|
2 |
(2730 and 3330 only) |
ships same day |
1221 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
2 |
|
ships same day |
1222 |
164-1137
|
Dolly wheel mounting bracket |
$29.11
|
2 |
|
usually ships 19-25 days |
1224a |
991-2005
|
Small roller wheel (gray) |
$4.97
|
2 |
(2730db and 3330db) |
usually ships 14-20 days |
1224b |
991-2009
|
3 inch bumper wheel |
$9.39
|
2 |
(2730 and 3330 only) |
usually ships 19-25 days |
1226 |
999-0108
|
Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
1227 |
999-0344
|
Bolt 1/4-20 x 1 1/2 hex head plain finish |
$0.99
|
2 |
|
ships same day |
1230 |
164-1138
|
Wedge bracket |
$81.87
|
2 |
|
usually ships 19-25 days |
1231 |
164-1139
|
Spacer |
$8.28
|
1 |
|
usually ships 19-25 days |
