| # | Part | Description |
Req | Notes | Availability |
|---|

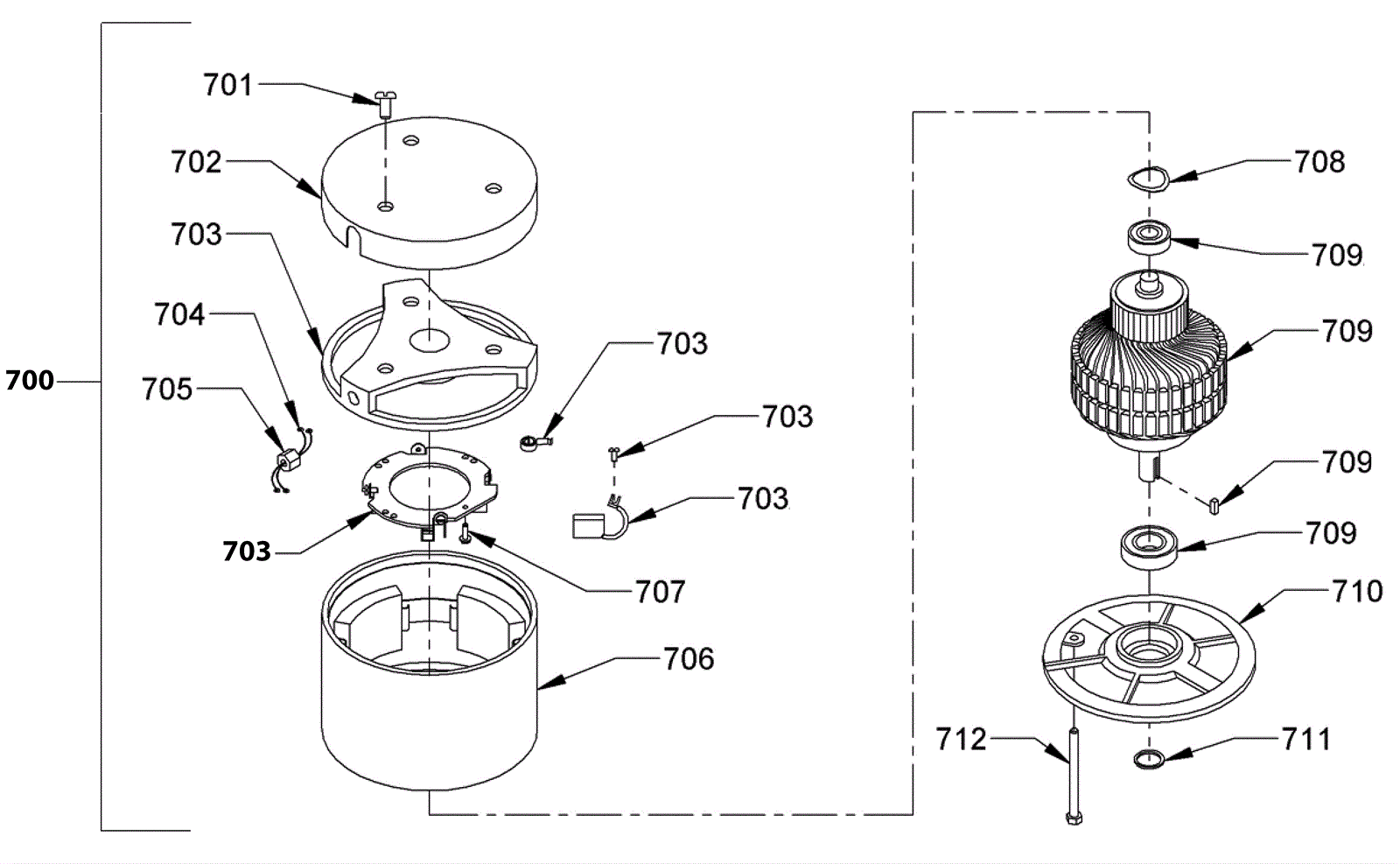

700a |
164-0172
|
36V drive motor |
1 |
(oem) (includes 701-712) |
usually ships 17-22 days |
700b |
991-5114
|
36V drive motor |
1 |
(non-oem) (includes 701-712) |
usually ships 13-17 days |
701 |
N/A
|
Not available |
3 |
(pan head screw) |
usually ships 3-26 days |
702 |
164-0320
|
Top cover |
1 |
|
usually ships 1-5 days |
703a |
N/A
|
Not available |
1 |
(top end bell assembly) |
usually ships 3-26 days |
703b |
164-0326
|
Brush ring assembly with springs and carbon brush |
1 |
(includes 703c-703e) |
usually ships 1-5 days |
703c |
164-0324
|
Carbon brush spring |
4 |
|
usually ships 17-22 days |
703d |
N/A
|
Not available |
4 |
(screw #10-32 x 3/8 pan head brass) |
usually ships 3-26 days |
703e |
164-0325
|
Carbon brush with lead and terminal (sold individually) |
4 |
|
usually ships 17-22 days |
704 |
164-0323
|
Lead assembly (1 wire with terminals) |
2 |
|
usually ships 1-5 days |
705 |
N/A
|
Not available |
1 |
(heyco strain relief) |
usually ships 3-26 days |
706 |
164-0327
|
Stator frame assembly with magnets |
1 |
|
usually ships 1-5 days |
707 |
999-0572
|
Screw 10-24 x 1/2 pan head self-tapping zinc |
3 |
|
usually ships 11-14 days |
708 |
164-0328
|
Washer 1 7/8 wave |
1 |
|
usually ships 17-22 days |
709a |
164-0330
|
Armature assembly with bearings |
1 |
(includes 709b-709d) |
usually ships 1-5 days |
709b |
164-0329
|
Top rotor bearing |
1 |
|
usually ships 17-22 days |
709c |
164-0132
|
Square keyway 1/4 x 1/4 |
1 |
|
usually ships 17-22 days |
709d |
164-0332
|
Bearing (shaft end) |
1 |
|
usually ships 17-22 days |
710 |
164-0333
|
Bottom end bell |
1 |
|
usually ships 1-5 days |
711 |
164-0335
|
Shaft seal |
1 |
|
usually ships 1-5 days |
712 |
N/A
|
Not available |
2 |
(thru bolt) |
usually ships 3-26 days |
