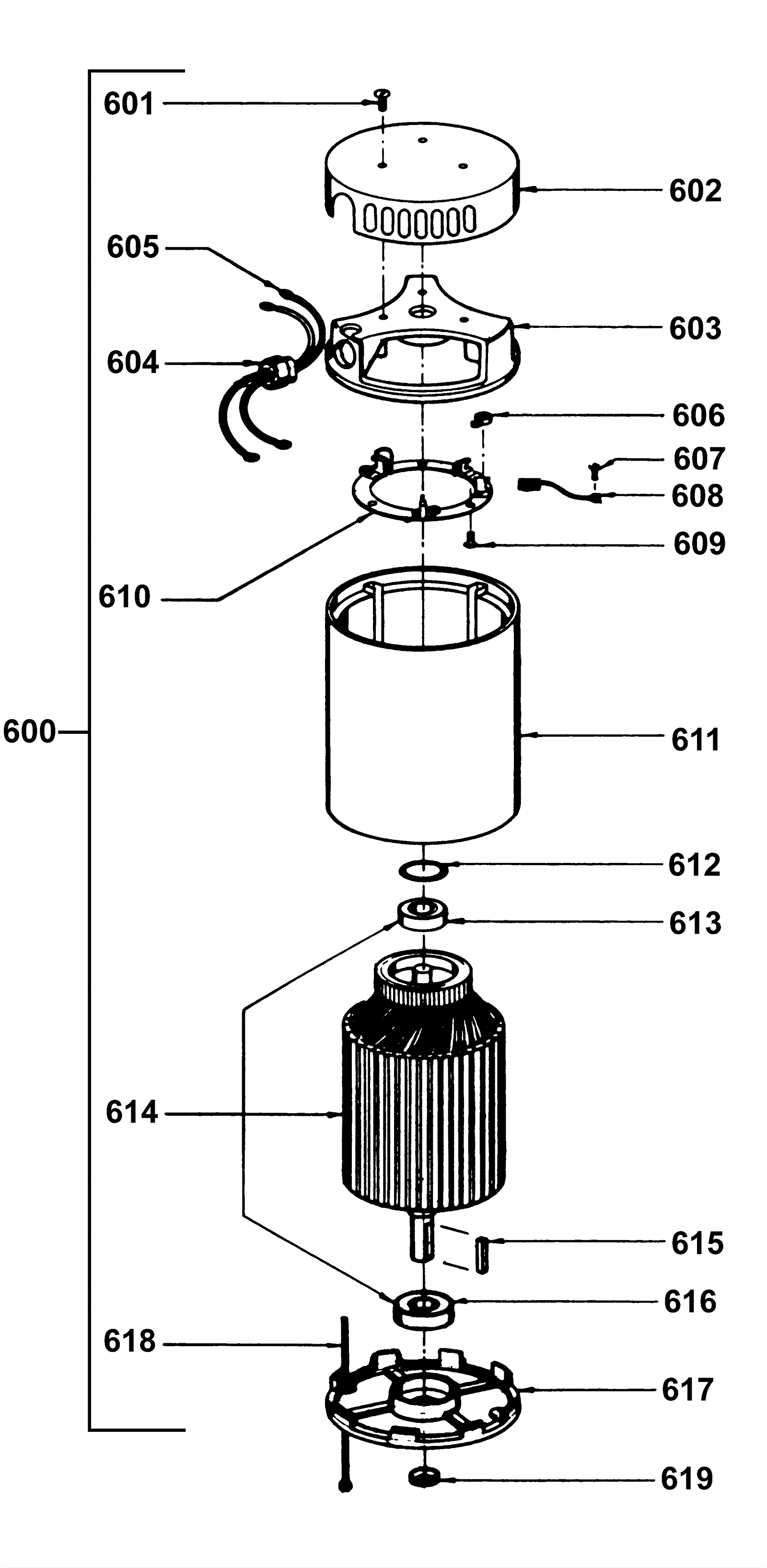

# | Part | Description | Price | Req | Notes | Availability |
600 |
N/A
|
Not available |
Call for price
|
1 |
Brush drive motor |
usually ships 30-32 days |
601 |
999-0175
|
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
$0.90
|
3 |
|
ships same day |
602 |
164-0637
|
Top cover (OBSOLETE) |
$35.82
|
1 |
|
usually ships 1-5 days |
603 |
164-0638
|
Top end bell with brush board assembly (OBSOLETE) |
$308.20
|
1 |
|
usually ships 1-5 days |
604 |
N/A
|
Not available |
Call for price
|
1 |
Heyco strain relief |
usually ships 30-32 days |
605 |
164-0323
|
Lead assembly (1 wire with terminals) |
$90.90
|
2 |
1 wire with terminals |
usually ships 1-5 days |
606 |
164-0324
|
Carbon brush spring |
$16.10
|
4 |
|
usually ships 6-20 days |
607 |
999-0174
|
Screw 10-32 x 3/8 pan head slotted brass |
$0.90
|
4 |
|
ships same day |
608 |
N/A
|
Not available |
Call for price
|
4 |
(not available) Brush assembly (Carbon brush with lead and terminal) |
usually ships 30-32 days |
609 |
999-0545
|
Screw 10-24 x 1/2 pan head phillips self-tapping |
$0.90
|
3 |
|
ships same day |
610 |
164-0643
|
Brush board assembly with springs & brushes (OBSOLETE) |
$112.30
|
1 |
|
usually ships 1-5 days |
611 |
N/A
|
Not available |
Call for price
|
1 |
Stator frame assembly with magnets |
usually ships 30-32 days |
612 |
164-0328
|
Washer 1 7/8 wave |
$1.98
|
1 |
|
ships same day |
613 |
164-0329
|
Top rotor bearing |
$16.58
|
1 |
Commutator end |
ships same day |
614 |
N/A
|
Not available |
Call for price
|
1 |
(not available) Armature assembly with bearings. |
usually ships 30-32 days |
615 |
164-0132
|
Square keyway 1/4 x 1/4 |
$4.62
|
1 |
|
usually ships 1-5 days |
616 |
164-0332
|
Bearing (shaft end) |
$24.70
|
1 |
|
usually ships 6-20 days |
617 |
164-0650
|
Bottom end bell (OBSOLETE) |
$68.10
|
1 |
|
usually ships 1-5 days |
618 |
164-0651
|
Thru bolt (OBSOLETE) |
$5.00
|
2 |
|
usually ships 1-5 days |
619 |
164-0335
|
Shaft seal |
$19.90
|
1 |
|
usually ships 1-5 days |
