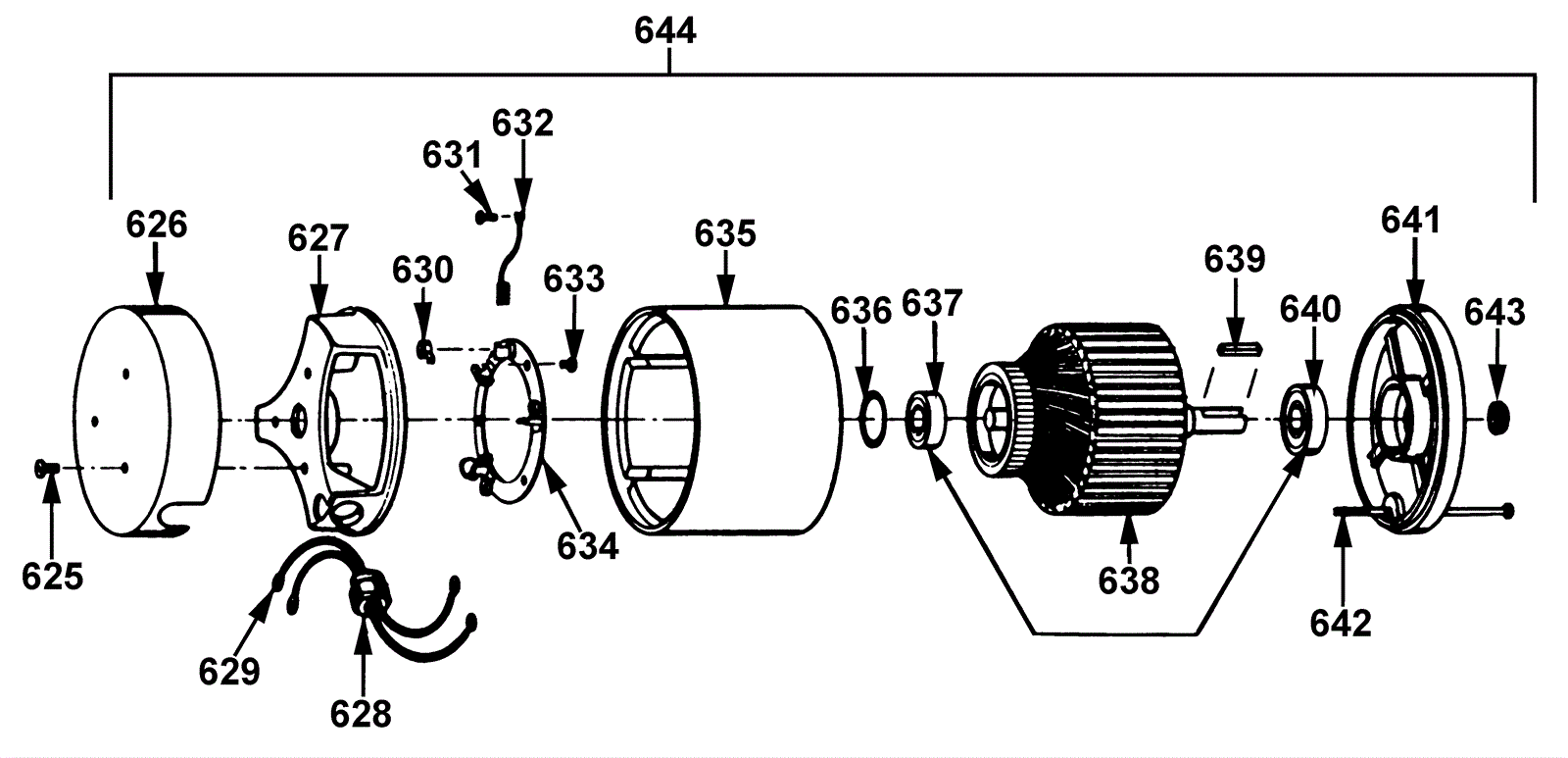

| # | Part | Description |
Req | Notes | Availability |
|---|
625 |
999-0175
|
Screw 1/4-20 x 3/8 pan head slotted zinc plated |
3 |
|
|
626 |
164-0320
|
Top cover |
1 |
|
|
627 |
N/A
|
Not available |
1 |
(Top end bell with brush board assembly) |
|
628 |
N/A
|
Not available |
1 |
(Heyco strain relief) |
|
629 |
164-0323
|
Lead assembly (1 wire with terminals) |
2 |
|
|
630 |
264-0314
|
Carbon brush spring |
4 |
|
|
631 |
999-0174
|
Screw 10-32 x 3/8 pan head slotted brass |
4 |
|
|
632 |
164-0325
|
Carbon brush with lead and terminal (sold individually) |
4 |
|
|
633 |
999-0545
|
Screw 10-24 x 1/2 pan head phillips self-tapping |
3 |
|
|
634 |
164-0326
|
Brush ring assembly with springs and carbon brush |
1 |
|
|
635 |
164-0327
|
Stator frame assembly with magnets |
1 |
|
|
636 |
164-0328
|
Washer 1 7/8 wave |
1 |
|
|
637 |
164-0329
|
Top rotor bearing |
1 |
(commutator end) |
|
638 |
164-0330
|
Armature assembly with bearings |
1 |
|
|
639 |
164-0132
|
Square keyway 1/4 x 1/4 |
1 |
|
|
640 |
164-0332
|
Bearing (shaft end) |
1 |
|
|
641 |
164-0333
|
Bottom end bell |
1 |
|
|
642 |
N/A
|
Not available |
2 |
(Thru bolt) |
|
643 |
164-0335
|
Shaft seal |
1 |
|
|
644a |
164-0172
|
36V drive motor |
1 |
(includes 625-643) (OEM) |
|
644b |
991-5114
|
36V drive motor |
1 |
(includes 625-643) (NON-OEM) |
|
