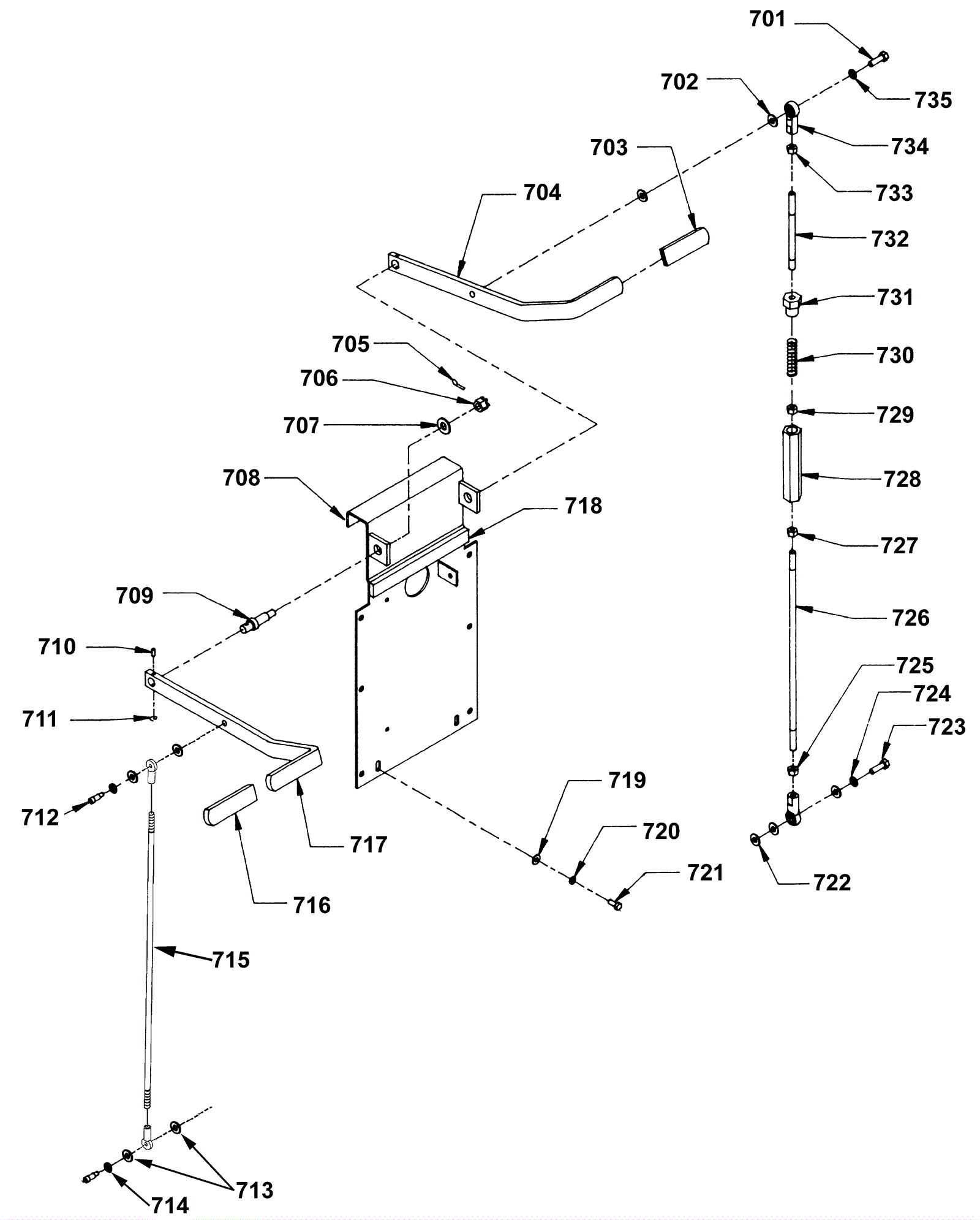

Lifting Lever Assembly

#PartDescription ReqNotesAvailability
701 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 1
702 999-0120 Washer 3/8 SAE flat 2
703 164-0261 Handle grip 1
704 164-0262 Brush lift handle 1
705 164-0263 Cotter pin 1
706 999-0647 Nut 1/2-13 slotted hex plain finish 2
707 999-0114 Washer 1/2 SAE flat 2
708 164-0265 Lifting arm plate 1
709 164-0266 Pivot stud 2
710 164-0267 Clevis pin 2
711 164-0268 Cotter ring 2
712 999-0646 Screw 5/16-18 x 3/8 socket head shoulder 2
713 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
714 999-0028 Washer 5/16 split lock plain finish 2
715a 164-0269 Lifting rod kit 1 (early scrubbers came with a squeegee lift cable which is no longer available. This is a direct replacement) (includes rod and hardware)
715b 164-2644 Squeegee lift rod 1
716 164-0261 Handle grip 1
717 164-0271 Squeegee lift handle 1
718 164-0272 Gasket 1 x 1/4 neoprene (sold by the foot) 1 ft
719 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
720 999-0028 Washer 5/16 split lock plain finish 2
721 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 2
722 999-0120 Washer 3/8 SAE flat 3
723 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated 1
724 999-0034 Washer 3/8 split lock plain finish 1
725 999-0169 Nut 3/8-24 hex jam plain finish 1
726 164-0273 Lifting rod 1
727 999-0170 Nut 3/8-16 hex plain finish 1
728 164-0274 Spring housing 1
729 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
730 164-0056 Pressure spring 1
731 164-0275 Spring housing retainer 1
732 164-0276 Short lifting rod 1
733 999-0169 Nut 3/8-24 hex jam plain finish 2
734 164-0277 Ball joint 2
735 999-0034 Washer 3/8 split lock plain finish 1
