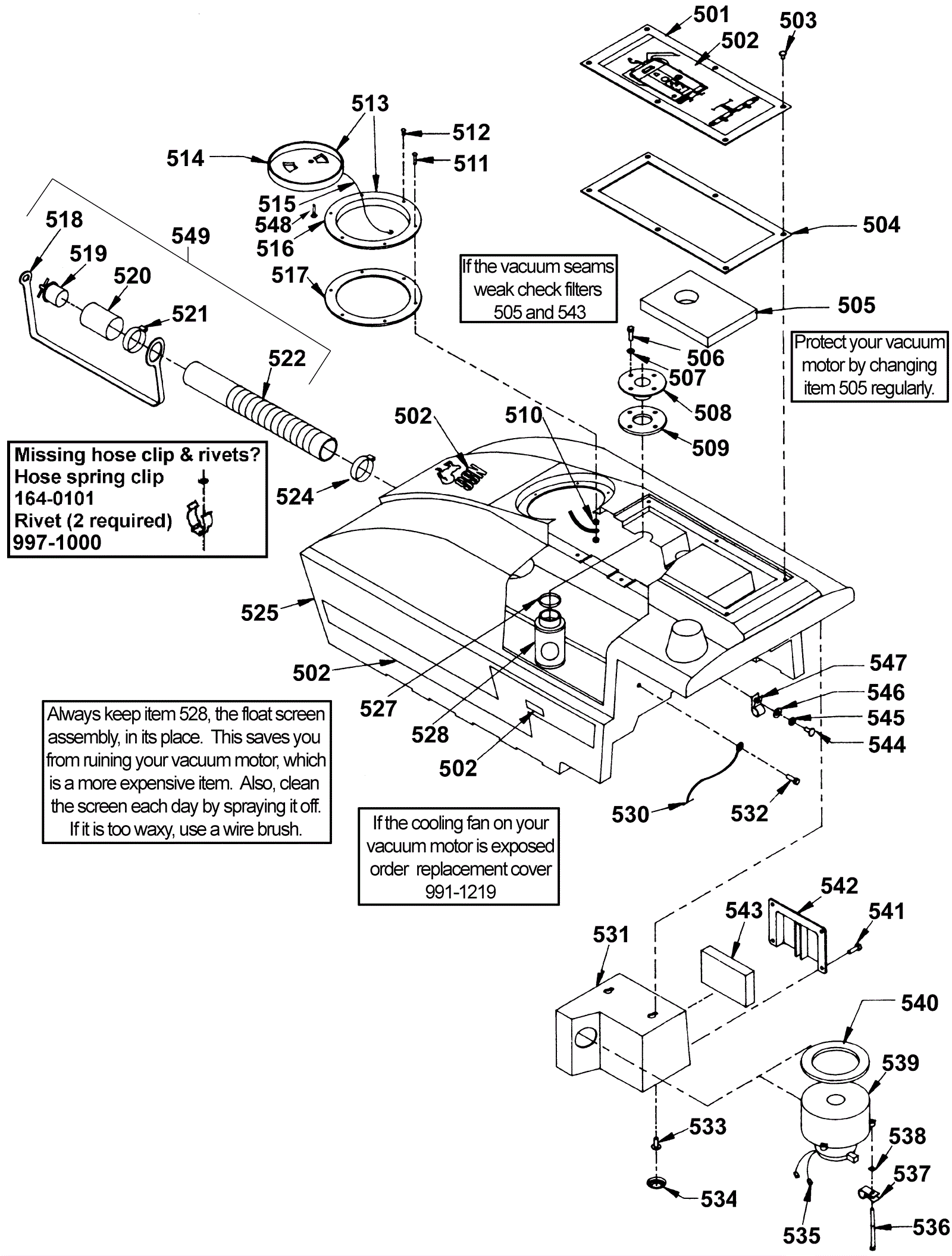

WRANGLER 27 F/B Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
501 164-0196 Recovery tank cover plate (OBSOLETE) $47.03 1 usually ships 8-23 days
502 N/A Not available Call for price 1 (Color decal kit) usually ships 3-26 days
503 999-0135 Screw 1/4-20 x 3/8 truss head slotted zinc $0.99 6 ships same day
504 164-0198 Cover plate gasket $25.25 1 usually ships 8-23 days
505 164-0199 Vacuum motor intake filter $12.82 1 ships same day
506 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
507 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
508 164-0200 Float plate (OBSOLETE) $33.22 1 usually ships 8-23 days
509 164-0201 Float plate gasket $4.75 1 usually ships 8-23 days
510 999-0004 Nut 10-24 k-lock zinc plated $0.99 2 ships same day
511 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 5 ships same day
512 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 5 ships same day
513 164-0202 Tank lid assembly $86.30 1 (includes 514 - 516) usually ships 7-10 days
514a 164-0044 Tank lid (clear) $62.22 1 ships same day
514b 991-1928 Tank lid (clear) (OBSOLETE) $137.84 1 (NON-OEM) usually ships 5-16 days
515 164-0204 Recovery tank lid chain $5.83 1 usually ships 5-16 days
516 164-0205 Tank lid ring (black) $34.98 1 ships same day
517 164-0206 Gasket $8.31 1 usually ships 8-23 days
518 164-0207 Plug strap $17.60 1 ships same day
519a 164-0043 Drain plug $43.32 1 (OEM) ships same day
519b 991-5113 Drain plug $20.98 1 (NON-OEM) ships same day
520 164-0208 Tube $31.13 1 ships same day
521 997-2000 Hose clamp $2.37 1 ships same day
522 164-0210 Recovery tank drain hose $86.98 1 ships same day
524 997-2003 Hose clamp $2.66 1 ships same day
525 164-0213 Recovery tank $794.75 1 usually ships 8-23 days
527 164-0218 Nylon hose clamp $3.69 1 usually ships 8-23 days
528 164-0046 Float screen assembly $106.17 1 ships same day
530 164-0220 Recovery tank strap $23.53 1 usually ships 8-23 days
531 N/A Not available Call for price 1 Vacuum exhaust muffler usually ships 3-26 days
532 999-0135 Screw 1/4-20 x 3/8 truss head slotted zinc $0.99 1 ships same day
533 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 2 ships same day
534 164-0222 Plug $4.73 2 usually ships 8-23 days
535 998-0001 1/4 spade male terminal 10-12 gauge $0.99 2 ships same day
536 999-0165 Bolt 1/4-20 x 4 hex head grade 5 zinc plated $1.39 3 ships same day
537 164-9118 P clamp $11.99 1 usually ships 11-24 days
538 164-0225 Locking tab $2.71 3 usually ships 1-5 days
539a 164-7977 36V vacuum motor $583.56 1 (NSS) usually ships 8-23 days
539b 991-1202 36V 3 stage vacuum motor tangential $109.34 1 (NON-OEM) ships same day
539c 991-1221 Carbon brush without plastic cover (pkg of 2) $14.52 2 usually ships 5-16 days
540a 164-0881 Vacuum motor gasket $13.42 1 ships same day
540b 991-3029 Vacuum motor gasket $2.36 1 (NON-OEM) ships same day
541 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 4 ships same day
542 164-0230 Muffler cover $36.63 2 usually ships 8-23 days
543 164-0231 Muffler filter $6.16 1 ships same day
544 999-0166 Screw 10-24 x 5/8 truss head slotted zinc plated $5.50 1 ships same day
545 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
546 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
547 164-0232 P clamp $2.57 1 usually ships 8-23 days
548 999-0680 Screw 6 x 1/2 pan head phillips T-A sheet metal $0.99 1 (holds chain to lid) ships same day
549 164-0863 Drain hose assembly $184.23 1 (includes 518-522) ships same day
