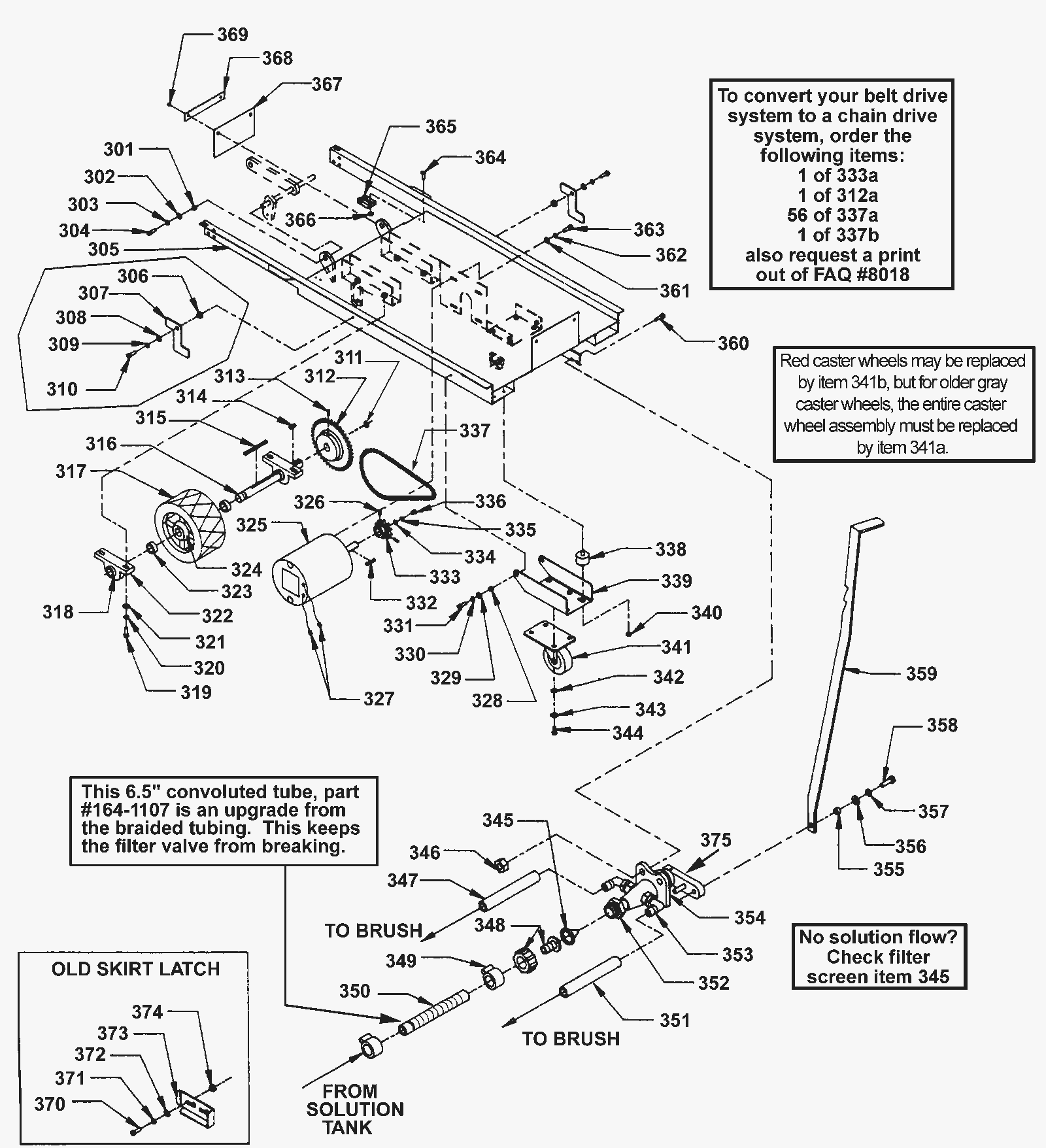

| # | Part | Description |
Req | Notes | Availability |
|---|
301 |
164-0130
|
Bushing |
2 |
|
|
302 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
303 |
999-0126
|
Washer 1/2 split lock |
2 |
|
|
304 |
999-0116
|
Bolt 1/2-13 x 1 1/2 hex head grade 5 |
2 |
|
|
305 |
164-0160
|
Main frame (OBSOLETE) |
1 |
|
|
306 |
164-0161
|
Skirt latch pin |
2 |
|
|
307 |
164-0162
|
Skirt latch |
2 |
|
|
308 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
309 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
310 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
311 |
164-1021
|
External retaining ring |
1 |
|
|
312a |
164-0164
|
Driven sprocket 34 tooth with set screw |
1 |
(chain driven) |
|
313 |
999-0157
|
Screw 5/16-18 x 3/8 cup point socket set alloy plain finish |
1 |
|
|
314 |
164-0166
|
Square keyway |
1 |
|
|
315 |
164-0167
|
Square keyway |
1 |
(drive wheel) |
|
316 |
164-0168
|
Drive wheel axle (OBSOLETE) |
1 |
|
|
317 |
164-0169
|
Drive wheel 4 x 8 inch |
1 |
|
|
318 |
999-0667
|
Screw 1/4-28 x 3/16 knurled point socket set plain finish |
2 |
|
|
319 |
999-0039
|
Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
|
320 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
321 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
322 |
164-1018
|
Bearing |
2 |
|
|
323 |
164-0171
|
Drive wheel spacer |
2 |
|
|
324 |
999-0157
|
Screw 5/16-18 x 3/8 cup point socket set alloy plain finish |
2 |
|
|
325a |
164-0172
|
36V drive motor |
1 |
(OEM) |
|
325b |
991-5114
|
36V drive motor |
1 |
(NON-OEM) |
|
326 |
999-0155
|
Screw 1/4-20 x 5/16 knurled point socket set plain finish |
2 |
|
|
327 |
998-0001
|
1/4 spade male terminal 10-12 gauge |
2 |
|
|
328 |
164-0151
|
Spacer |
4 |
|
|
329 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
330 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
331 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
|
332 |
164-0132
|
Square keyway 1/4 x 1/4 |
1 |
|
|
333a |
164-0176
|
10 toothed sprocket with set screw |
1 |
(chain driven) |
|
333b |
164-0177
|
Drive pulley (OBSOLETE) |
1 |
(belt driven) |
|
334 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
335 |
999-0028
|
Washer 5/16 split lock plain finish |
1 |
|
|
336 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
1 |
|
|
337a |
991-0101
|
Chain (sold by the link) |
56 |
(chain driven) |
|
337b |
991-0103
|
Master link |
1 |
(chain driven) |
|
337c |
164-0007
|
Drive belt |
1 |
(belt driven) (OEM) |
|
337d |
991-5112
|
Drive belt (OBSOLETE) |
1 |
(belt driven) (NON-OEM) |
|
338 |
164-0178
|
Vibration mount |
4 |
|
|
339 |
164-0179
|
Caster wheel bracket |
2 |
|
|
340 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
8 |
|
|
341a |
991-2006
|
Caster wheel assembly (red) |
2 |
(includes 341b) |
|
341b |
991-2008
|
4 inch caster wheel with bearings (red) |
2 |
|
|
342 |
999-0120
|
Washer 3/8 SAE flat |
8 |
|
|
343 |
999-0034
|
Washer 3/8 split lock plain finish |
8 |
|
|
344 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
8 |
|
|
345a |
164-0045
|
Filter fitting assembly |
1 |
(includes 345b, 348-350 and 352) |
|
345b |
164-0065
|
Filter screen |
1 |
|
|
346 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
347 |
991-1401
|
Clear vinyl tubing (sold by the inch) |
62 in |
|
|
348 |
164-0182
|
Hose barb and collar |
1 |
|
|
349 |
997-2002
|
Hose clamp #6 |
2 |
|
|
350 |
164-1107
|
6 1/2 inch convoluted tubing |
1 |
|
|
351 |
991-1401
|
Clear vinyl tubing (sold by the inch) |
52 in |
|
|
352 |
164-0083
|
Valve filter fitting |
1 |
|
|
353 |
164-0187
|
90 degree elbow barb |
2 |
|
|
354a |
164-0077
|
Solution valve assembly with fittings and lever |
1 |
(includes 345a, 348-350, 352, 353, 354b and 375) |
|
354b |
164-0618
|
Solution valve |
1 |
|
|
355 |
164-0136
|
Bushing |
1 |
|
|
356 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
357 |
999-0060
|
Washer 1/4 split lock plain finish |
1 |
|
|
358 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
1 |
|
|
359a |
164-0190
|
Solution valve lever |
1 |
(includes 359b) |
|
359b |
164-0285
|
Valve lever grip |
1 |
|
|
360 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
361 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
362 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
363 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
364 |
999-0656
|
Screw #6-32 x 7/8 pan head phillips zinc plated |
4 |
|
|
365 |
991-2105
|
SB50 50amp charger plug with pins (gray) |
2 |
|
|
366 |
999-0144
|
Nut 6-32 k-lock zinc plated |
4 |
|
|
367 |
164-0191
|
Splash guard wiper |
1 |
|
|
368 |
164-0192
|
Splash guard strap (OBSOLETE) |
1 |
|
|
370 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
4 |
(old style) |
|
371 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
(old style) |
|
372 |
999-0160
|
Washer 1/4 x 1 1/4 fender zinc plated |
4 |
(old style) |
|
373a |
164-0193
|
Left skirt latch (OBSOLETE) |
1 |
(old style) |
|
373b |
164-0194
|
Right skirt latch (OBSOLETE) |
1 |
(old style) |
|
374 |
164-0161
|
Skirt latch pin |
4 |
|
|
375a |
164-0619
|
Valve lever |
1 |
(includes 375b and 375c) |
|
375b |
999-0731
|
Spring pin 3/16 x 1 steel |
1 |
(this roll pin is the larger of the two on the valve lever.) |
|
375c |
999-0732
|
Spring pin 3/32 x 5/8 steel |
1 |
(this is the smaller of the two roll pins on the valve lever. It is used to hold the valve lever to the valve shaft.) |
|
