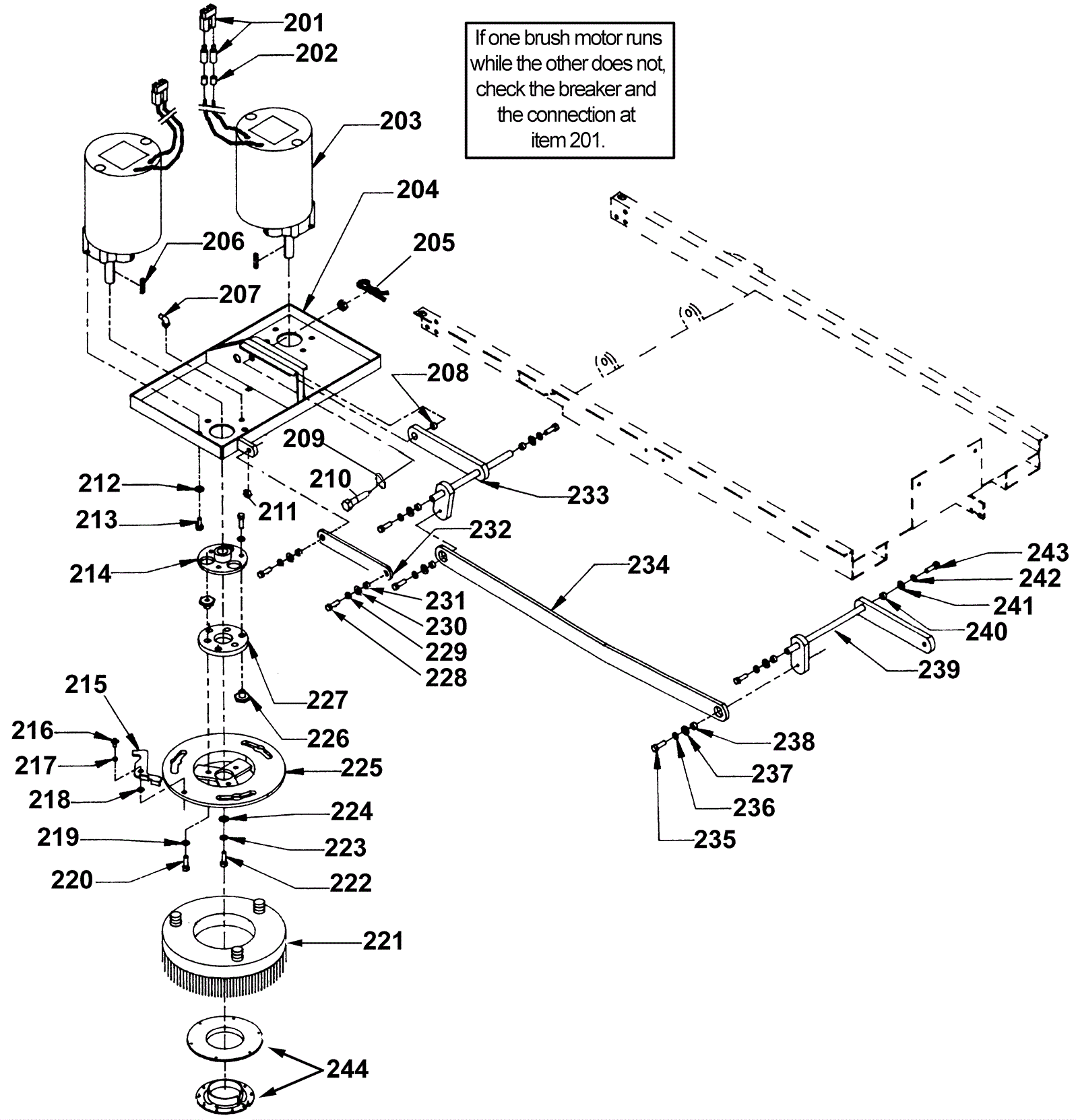

WRANGLER 33 F/B Brush and Lift Arm Assembly

#PartDescriptionPriceReqNotesAvailability
201 991-2105 SB50 50amp charger plug with pins (gray) $6.72 2 (You do not need to order item 202 pins if you order this item) ships same day
202 164-1140 50amp contact pins $5.41 4 (Pins only) ships same day
203a 164-0125 36V brush gear motor assembly $1,564.09 2 (OEM) usually ships 8-23 days
203b 991-2122 36V .75HP brush motor assembly with gear box $1,099.40 2 (NON-OEM) (you will also need to order 999-0130) ships same day
204a 164-0127 Brush motor mount bracket for Wrangler 27 $409.66 2 usually ships 8-23 days
204b 164-0128 Brush motor mount bracket for Wrangler 33 (OBSOLETE) $163.90 1 usually ships 8-23 days
205 164-1165 Cotter pin (pkg of 5) $5.28 1 usually ships 1-5 days
206a 164-0132 Square keyway 1/4 x 1/4 $4.95 2 usually ships 1-5 days
206b 164-0130 Bushing $3.96 1 ships same day
207 164-0133 90 degree solution feed tube $34.49 2 usually ships 8-23 days
208 164-0130 Bushing $3.96 1 ships same day
209 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
210 164-1158 Clevis pin $12.27 1 usually ships 8-23 days
211 164-0131 Retaining ring $2.57 2 usually ships 8-23 days
212 999-0034 Washer 3/8 split lock plain finish $1.82 8 ships same day
213 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 8 ships same day
214 164-0134 Drive hub $177.29 2 usually ships 8-23 days
215 164-0135 Latch $12.82 2 usually ships 8-23 days
216 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 2 ships same day
217 164-0136 Bushing $2.75 2 ships same day
218 164-0137 Washer 3/8 spring $5.89 2 usually ships 8-23 days
219 999-0028 Washer 5/16 split lock plain finish $0.99 12 ships same day
220 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 12 ships same day
221 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 2 usually ships 3-26 days
222 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 1 ships same day
223 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
224 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
225a 164-0146 Drive casting $406.66 2 usually ships 8-23 days
225b 164-0147 Left drive casting assembly $747.46 1 (includes 214-220, 222-223 and 225-227) usually ships 8-23 days
225c 164-0148 Right drive casting assembly $697.13 1 (includes 214-220, 222-223 and 225-227) usually ships 8-23 days
226 996-1535 Tall metal drive lugs (pkg of 3) $22.88 6 (3 per brush) ships same day
227 164-0150 Rubber mount $40.27 2 ships same day
228 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 ships same day
229 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
230 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
231 164-0151 Spacer $3.70 2 ships same day
232 164-0152 Stabilizer bar $23.98 1 usually ships 8-23 days
233a 164-0153 Front brush lifting arm for Wrangler 27 $175.67 1 usually ships 1-5 days
233b 164-0154 Front brush lifting arm for Wrangler 33 $136.02 1 usually ships 1-5 days
234 164-0155 Lower brush lifting rod $53.13 1 usually ships 8-23 days
235 999-0115 Bolt 1/2-13 x 1 hex head grade 5 $1.43 2 ships same day
236 999-0126 Washer 1/2 split lock $1.28 2 ships same day
237 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
238 164-0234 Bushing $11.22 2 ships same day
239 N/A Not available Call for price 1 (Rear brush lift arm) usually ships 3-26 days
240 164-0130 Bushing $3.96 4 ships same day
241 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
242 999-0126 Washer 1/2 split lock $1.28 4 ships same day
243 999-0116 Bolt 1/2-13 x 1 1/2 hex head grade 5 $1.36 4 ships same day
244 991-2206 Center-Lok 3 pad holder $35.50 2 ships same day
