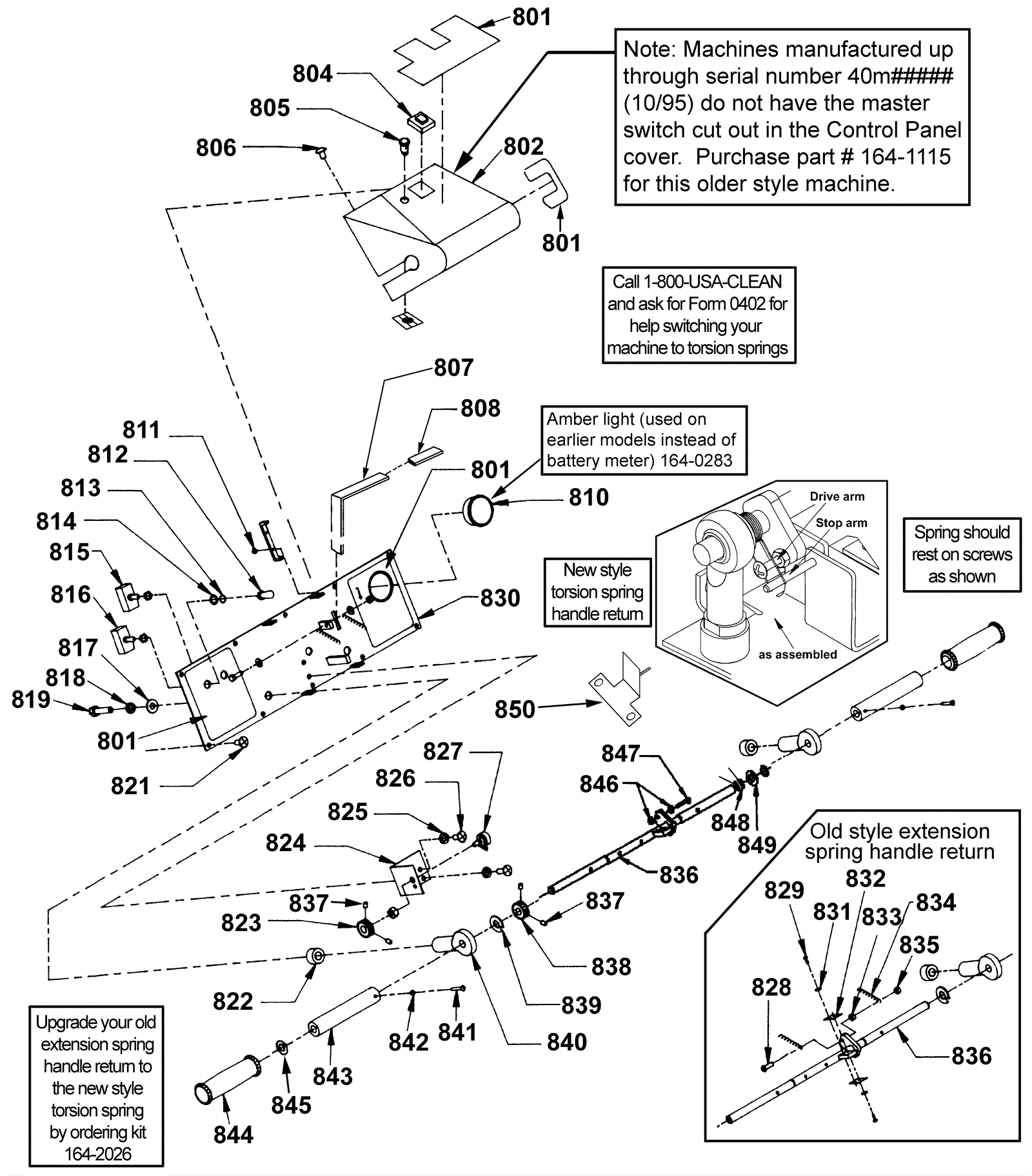

WRANGLER 27 F/B Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
801 164-9145 Decal kit $22.77 1 usually ships 8-23 days
802 164-0279 Control panel cover $124.58 1 usually ships 8-23 days
804a 164-0001 Master switch $24.24 1 (includes 804b) ships same day
804b 164-0281 Push button switch boot $33.28 1 usually ships 8-23 days
805a 164-0283 Indicator light with clip (green) $22.50 1 (Wrangler 27 and 33) usually ships 8-23 days
805b 164-0888 Indicator light with clip (green) $32.45 1 (Wrangler 26) usually ships 8-23 days
806 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 4 ships same day
807 164-0190 Solution valve lever $48.35 1 usually ships 8-23 days
808 164-0285 Valve lever grip $4.36 1 usually ships 8-23 days
810a 164-0022 Battery meter $120.95 1 (Wrangler 27 and 33) usually ships 1-5 days
810b 164-0889 Battery meter $126.28 1 (Wrangler 26) usually ships 8-23 days
811 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
812 164-0287 Rubber switch boot $10.34 2 ships same day
813 999-0260 Washer 1/2 internal starlock $0.99 2 ships same day
814 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
815a 164-0290 Toggle switch $14.63 1 (vacuum motor) (4 prong) ships same day
815b 164-0002 Rocker switch $12.05 1 (vacuum motor) (earlier models) (2 prong) usually ships 8-23 days
816a 164-0023 Toggle switch $19.97 1 (brush motor) (2 prong) ships same day
816b 164-0002 Rocker switch $12.05 1 (brush motor) (earlier models) (2 prong) usually ships 8-23 days
817 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
818 999-0126 Washer 1/2 split lock $1.28 2 ships same day
819 999-0145 Bolt 1/2-20 x 1 3/4 hex head grade 5 plain finish $1.65 2 ships same day
821 999-0135 Screw 1/4-20 x 3/8 truss head slotted zinc $0.99 10 ships same day
822 164-0292 Handle bar spacer $4.36 2 usually ships 1-5 days
823 164-0293 Drive gear $55.99 1 usually ships 8-23 days
824 164-2658 Potentiometer bracket $14.63 1 usually ships 8-23 days
825 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
826 999-0135 Screw 1/4-20 x 3/8 truss head slotted zinc $0.99 2 ships same day
827a 172-2039 5K potentiometer $61.41 1 (after SN #18N) ships same day
827b 164-1092 Potentiometer for Dart speed control $99.55 1 (before SN #18N) usually ships 8-23 days
828 999-0231 Screw 10-24 x 1/2 round head slotted zinc plated $0.99 2 (old style extension spring) ships same day
829 999-0147 Screw 6-32 x 3/8 round head slotted zinc plated $0.99 2 (old style extension spring) ships same day
830a 164-0296 Control plate $256.03 1 (Wrangler 27 and 33) usually ships 8-23 days
830b 164-0891 Control plate (OBSOLETE) $130.02 1 (Wrangler 26) usually ships 1-5 days
831 999-0148 Washer #6 external star lock zinc plated $0.99 2 (old style extension spring) ships same day
832 N/A Not available Call for price 2 (Stop plate for potentiometer rotation) (old style extension spring) usually ships 3-26 days
833 999-0004 Nut 10-24 k-lock zinc plated $0.99 2 (old style extension spring) ships same day
834 164-0078 Return spring $2.43 2 ships same day
835 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 (old style extension spring) ships same day
836 164-9144 Handle bar $144.65 1 usually ships 1-5 days
837 999-0650 Screw 8-32 x 3/16 knurled point socket set plain finish $0.99 4 ships same day
838 164-0300 Drive gear $55.99 1 usually ships 8-23 days
839 164-0106 Retaining ring $2.96 2 ships same day
840 164-0238 Ball joint $50.71 2 ships same day
841 999-0080 Screw 8-32 x 7/8 round head slotted zinc plated $0.99 2 ships same day
842 999-0150 Washer #8 medium split lock $0.99 2 ships same day
843 164-0303 Handle grip base $27.06 2 usually ships 8-23 days
844a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
844b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
845 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
846 999-0004 Nut 10-24 k-lock zinc plated $0.99 2 ships same day
847 999-0223 Screw 10-24 x 1 1/4 round head slotted zinc plated $0.99 1 ships same day
848 164-1329 Torsion spring $5.50 1 usually ships 8-23 days
849 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
850 164-0078 Return spring $2.43 1 ships same day
