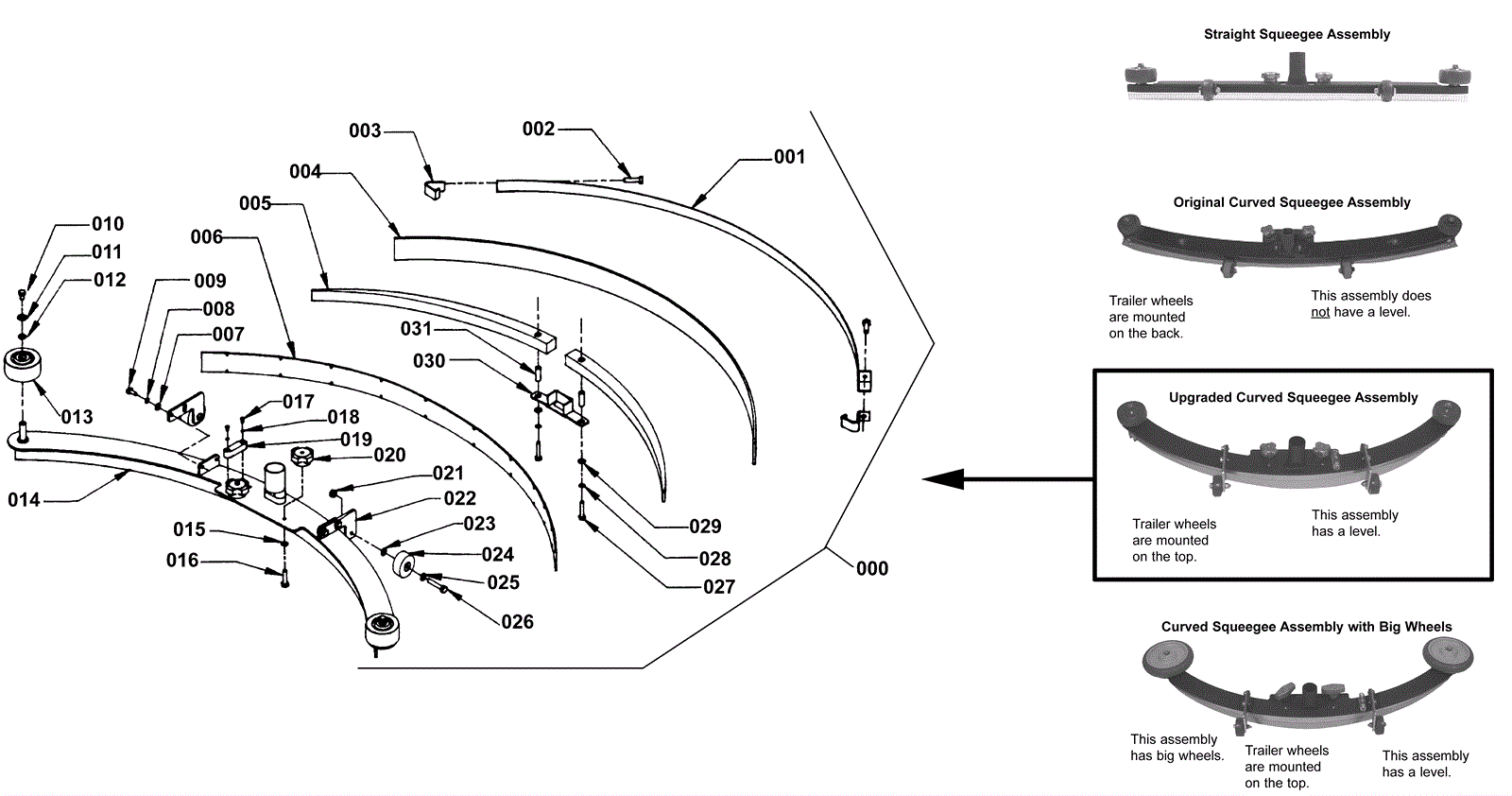

| # | Part | Description |
Req | Notes | Availability |
|---|
000a |
164-1122
|
Squeegee assembly curved |
1 |
(Wrangler 26 and 2625) (includes 001-031) |
|
000b |
164-1445
|
Squeegee assembly curved |
1 |
(Wrangler 27) (includes 001-031) |
|
000c |
164-1445
|
Squeegee assembly curved |
1 |
(Wrangler 33) (includes 001-031) |
|
001a |
164-1117
|
Rear securing strap for Wrangler 26 and 2625 |
1 |
|
|
001b |
164-1123
|
Rear securing strap Wrangler 27 |
1 |
|
|
001c |
164-1124
|
Rear securing strap |
1 |
|
|
002 |
999-0639
|
Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated |
2 |
|
|
003 |
164-1125
|
End hook |
2 |
|
|
004a |
164-1118
|
Squeegee blade 39 inch gum rubber rear (tan) |
1 |
(Wrangler 26 and 2625) (OEM) |
|
004b |
164-1118
|
Squeegee blade 39 inch gum rubber rear (tan) |
1 |
(Wrangler 26 and 2625) (NON-OEM) |
|
004c |
164-1126
|
Squeegee blade 43 inch curved gum rubber rear (tan) |
1 |
(Wrangler 27) (OEM) |
|
004d |
994-0007
|
Squeegee blade 43 inch curved gum rubber rear (tan) |
1 |
(Wrangler 27) (NON-OEM) |
|
004e |
164-1127
|
Squeegee blade 46 inch curved gum rubber rear (tan) |
1 |
(Wrangler 33) (OEM) |
|
004f |
164-1127
|
Squeegee blade 46 inch curved gum rubber rear (tan) |
1 |
(Wrangler 33) (NON-OEM) |
|
005a |
164-1119
|
Center wedge for Wrangler 26 and 2625 |
2 |
|
|
005b |
164-1128
|
End wedge Wranger 27 |
2 |
|
|
005c |
164-1129
|
Wedge |
2 |
|
|
006a |
164-1120
|
Squeegee blade 37 inch neoprene front (black) |
1 |
(Wrangler 26 and 2625) (OEM) |
|
006b |
994-0006
|
Squeegee blade 37 inch neoprene front (black) |
1 |
(Wrangler 26 and 2625) (NON-OEM) |
|
006c |
164-1130
|
Squeegee blade 40 5/8 inch curved gum rubber front (black) |
1 |
(Wrangler 27) (OEM) |
|
006d |
994-0009
|
Squeegee blade 40 inch curved gum rubber front (black) |
1 |
(Wrangler 27) (NON-OEM) |
|
006e |
164-1131
|
Squeegee blade 44 1/2 inch curved neoprene front (black) |
1 |
(Wrangler 33) (OEM) |
|
006f |
994-0010
|
Squeegee blade 44 3/8 inch curved neoprene front (black) |
1 |
(Wrangler 33) (NON-OEM) |
|
007 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
008 |
999-0060
|
Washer 1/4 split lock plain finish |
4 |
|
|
009 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
4 |
|
|
010 |
999-0029
|
Bolt 5/16-18 x 1/2 hex head plain finish |
2 |
|
|
011 |
999-0105
|
Washer 5/16 external star lock zinc plated |
2 |
|
|
012 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
013 |
991-2009
|
3 inch bumper wheel |
2 |
|
|
014a |
164-1121
|
Squeegee weldment |
1 |
(Wrangler 26 and 2625) |
|
014b |
164-1132
|
Squeegee weldment (OBSOLETE) |
1 |
(Wrangler 27) |
|
014c |
164-1446
|
Squeegee weldment |
1 |
(Wrangler 33) |
|
015 |
999-0028
|
Washer 5/16 split lock plain finish |
2 |
|
|
016 |
999-0639
|
Bolt 5/16-18 x 1 1/4 hex hd full thread grade 5 zinc plated |
2 |
|
|
017a |
999-0245
|
Screw 6-32 x 3/4 round head phillips zinc plated |
2 |
(Wrangler 26) |
|
017b |
999-0147
|
Screw 6-32 x 3/8 round head slotted zinc plated |
2 |
(Wrangler 2625) |
|
018 |
999-0051
|
Washer #6 medium split lock |
2 |
|
|
019a |
164-1136
|
Squeegee level |
1 |
(Wrangler 26) |
|
019b |
164-1139
|
Spacer |
1 |
(Wrangler 2625) |
|
020 |
164-1565
|
Knob |
2 |
|
|
021 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
022 |
164-1137
|
Dolly wheel mounting bracket |
2 |
|
|
023 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
024 |
991-2005
|
Small roller wheel (gray) |
2 |
|
|
025 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
026 |
999-0108
|
Bolt 5/16-18 x 1 3/4 hex head grade 5 zinc plated |
2 |
|
|
027 |
999-0344
|
Bolt 1/4-20 x 1 1/2 hex head plain finish |
2 |
|
|
028 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
029 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
030 |
164-1138
|
Wedge bracket |
1 |
|
|
031 |
164-1139
|
Spacer |
2 |
|
|
