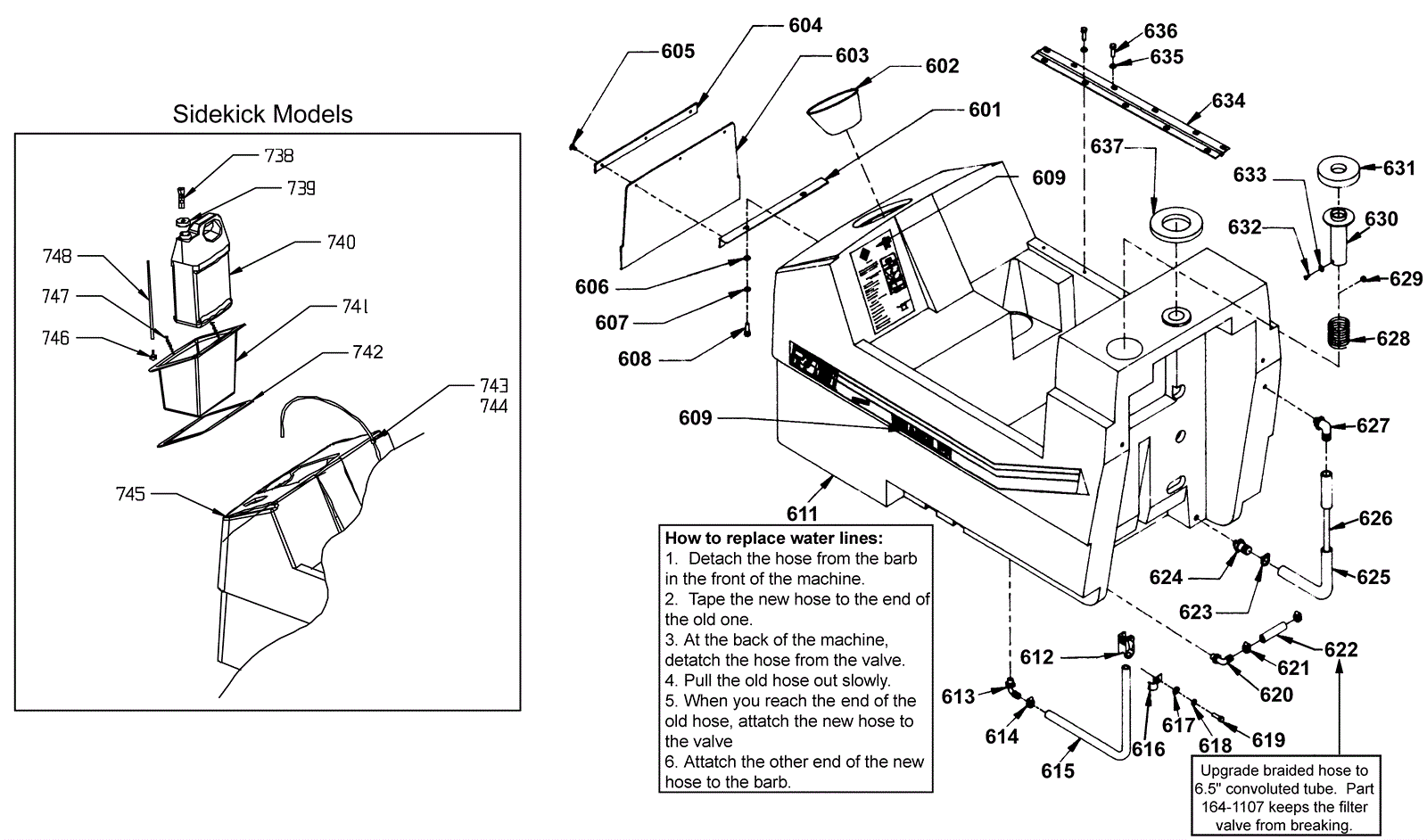

| # | Part | Description |
Req | Notes | Availability |
|---|
601 |
164-0868
|
Front cover bracket |
1 |
|
|
602a |
164-0869
|
Solution tank filter assembly |
1 |
(includes 602b and 602c) |
|
602b |
164-2564
|
Filter bag screen |
1 |
|
|
602c |
164-2565
|
Filter bag frame |
1 |
|
|
603 |
164-0870
|
Front cover |
1 |
|
|
604 |
164-0871
|
Front cover retainer |
1 |
|
|
605 |
999-0643
|
Screw 10-24 x 5/8 flat head phillips stainless steel |
3 |
|
|
606 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
607 |
999-0060
|
Washer 1/4 split lock plain finish |
2 |
|
|
608 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
|
609a |
164-1175
|
Wrangler 26 color decal kit (OBSOLETE) |
1 |
|
|
609b |
164-9140
|
Wrangler 2625 color decal kit |
1 |
|
|
611 |
164-0874
|
Solution tank |
1 |
|
|
612 |
164-0398
|
Control valve (white clamp) |
1 |
|
|
613 |
164-0402
|
Hose barb |
1 |
|
|
614 |
997-2001
|
Hose clamp |
1 |
|
|
615 |
991-1401
|
Clear vinyl tubing (sold by the inch) |
44 in |
|
|
616 |
164-0401
|
Hose clip |
1 |
|
|
617 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
618 |
999-0060
|
Washer 1/4 split lock plain finish |
1 |
|
|
619 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
|
620 |
164-1163
|
90 degree hose barb |
1 |
|
|
621 |
997-2002
|
Hose clamp #6 |
2 |
|
|
622 |
164-1107
|
6 1/2 inch convoluted tubing |
1 |
|
|
623 |
997-2005
|
Hose clamp |
1 |
|
|
624 |
164-0399
|
Solution tank drain hose fitting |
1 |
|
|
625a |
164-0405
|
22 inch solution drain hose |
1 |
This hose holds the solution level gauge and drains the solution tank |
|
625b |
164-2566
|
3/4ID x 21 inch Vnyl hse, soltn drn |
1 |
26VS |
|
626 |
164-0406
|
Solution hose drain gauge decal |
1 |
|
|
627 |
164-0407
|
90 degree hose barb |
1 |
|
|
628 |
164-0408
|
Spring |
1 |
|
|
629 |
999-0004
|
Nut 10-24 k-lock zinc plated |
1 |
|
|
630 |
164-0409
|
Tube adaptor |
1 |
|
|
631 |
164-0410
|
Tube adaptor gasket |
1 |
|
|
632 |
999-0645
|
Screw 10-24 x 3/8 round head phillips stainless steel |
1 |
|
|
633 |
999-0053
|
Washer #10 split lock plain finish |
1 |
|
|
634 |
164-0877
|
Recovery tank hinge |
1 |
|
|
635 |
999-0060
|
Washer 1/4 split lock plain finish |
11 |
|
|
636 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
11 |
|
|
637a |
164-1174
|
Vacuum tube gasket |
1 |
(Wrangler 26) |
|
637b |
164-2659
|
Vacuum tube gasket |
1 |
(Wrangler 2625) |
|
738 |
164-8140
|
Bulkhead fitting |
1 |
|
|
739 |
164-8141
|
Bottle cap with hole |
1 |
|
|
740 |
164-8142
|
F-style bottle |
|
|
|
741 |
164-8143
|
Bottle holder insert |
1 |
|
|
742 |
164-8144
|
Bottle holder gasket |
1 |
|
|
743 |
164-1240
|
Nylon cable clamp |
1 |
|
|
744a |
164-8130
|
25 foot nylon tubing |
1 |
|
|
744b |
999-0569
|
Screw 10 x 1/2 pan head phillips sheet metal |
1 |
|
|
745 |
164-8146
|
Solution tank |
1 |
|
|
746 |
164-8147
|
Bottle strainer |
1 |
|
|
747 |
164-8148
|
Screw 10 x 2 inch pan head phillips |
2 |
|
|
748 |
164-8130
|
25 foot nylon tubing |
1 |
|
|
