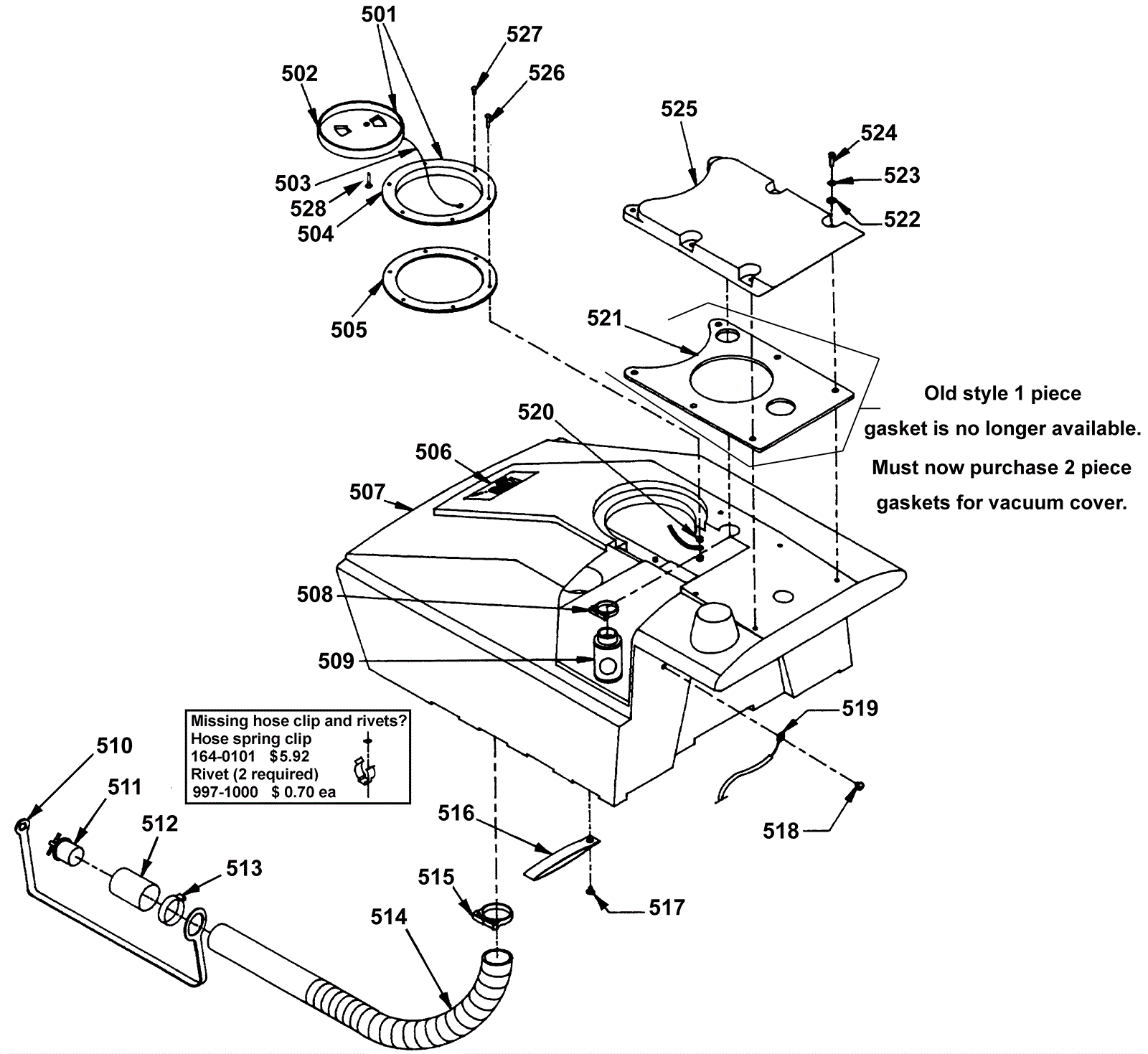

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
501a 164-0860 Recovery tank lid and gasket assembly 1 (includes 502-505)
501b 164-0202 Tank lid assembly 1 (includes 502-504)
502a 164-0044 Tank lid (clear) 1
502b 991-1928 Tank lid (clear) (OBSOLETE) 1 (NON-OEM)
503 164-0204 Recovery tank lid chain 1
504 164-0205 Tank lid ring (clear) 1
505 164-0206 Gasket 1
506a 164-1175 Wrangler 26 color decal kit (OBSOLETE) 1
506b 164-9140 Wrangler 2625 color decal kit 1
507 164-0874 Solution tank 1
508 164-0218 Nylon hose clamp 1
509 164-0046 Float screen assembly 1
510 164-0207 Plug strap 1
511a 164-0043 Drain plug 1 (OEM)
511b 991-5113 Drain plug 1 (NON-OEM)
512 164-0208 Tube 1
513 997-2000 Hose clamp 1
514a 164-0210 Recovery tank drain hose 1 (Wrangler 26)
514b 164-0863 Drain hose assembly 1 (Wrangler 2625) (includes 510-514)
515 997-2003 Hose clamp 1
516 164-0865 Tank support strap 1
517a 999-0113 Screw 1/4-20 x 1/2 truss head slotted 1 (Wrangler 26)
517b 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 1 (Wrangler 2625)
518 999-0135 Screw 1/4-20 x 3/8 truss head slotted zinc 2
519 164-0220 Recovery tank strap 1
520 999-0004 Nut 10-24 k-lock zinc plated 2
521a 164-0866 Gasket retro kit 1 (This kit includes both gaskets needed)
521b 164-8027 Vacuum cover motor gasket 1
521c 164-8028 Vacuum cover tank gasket 1
522 999-0123 Washer 1/4 SAE flat zinc plated 6
523 999-0060 Washer 1/4 split lock plain finish 6
524 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 6
525 164-0867 Top vacuum box 1
526 999-0642 Screw 10-24 x 1 3/4 round head phillips stainless steel 1
527 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 5
528 999-0680 Screw 6 x 1/2 pan head phillips T-A sheet metal 1 (holds chain to lid)
N/S 997-1000 Pop rivet 1/8 x 5/8 2
N/S 164-0101 Hose holder 1
