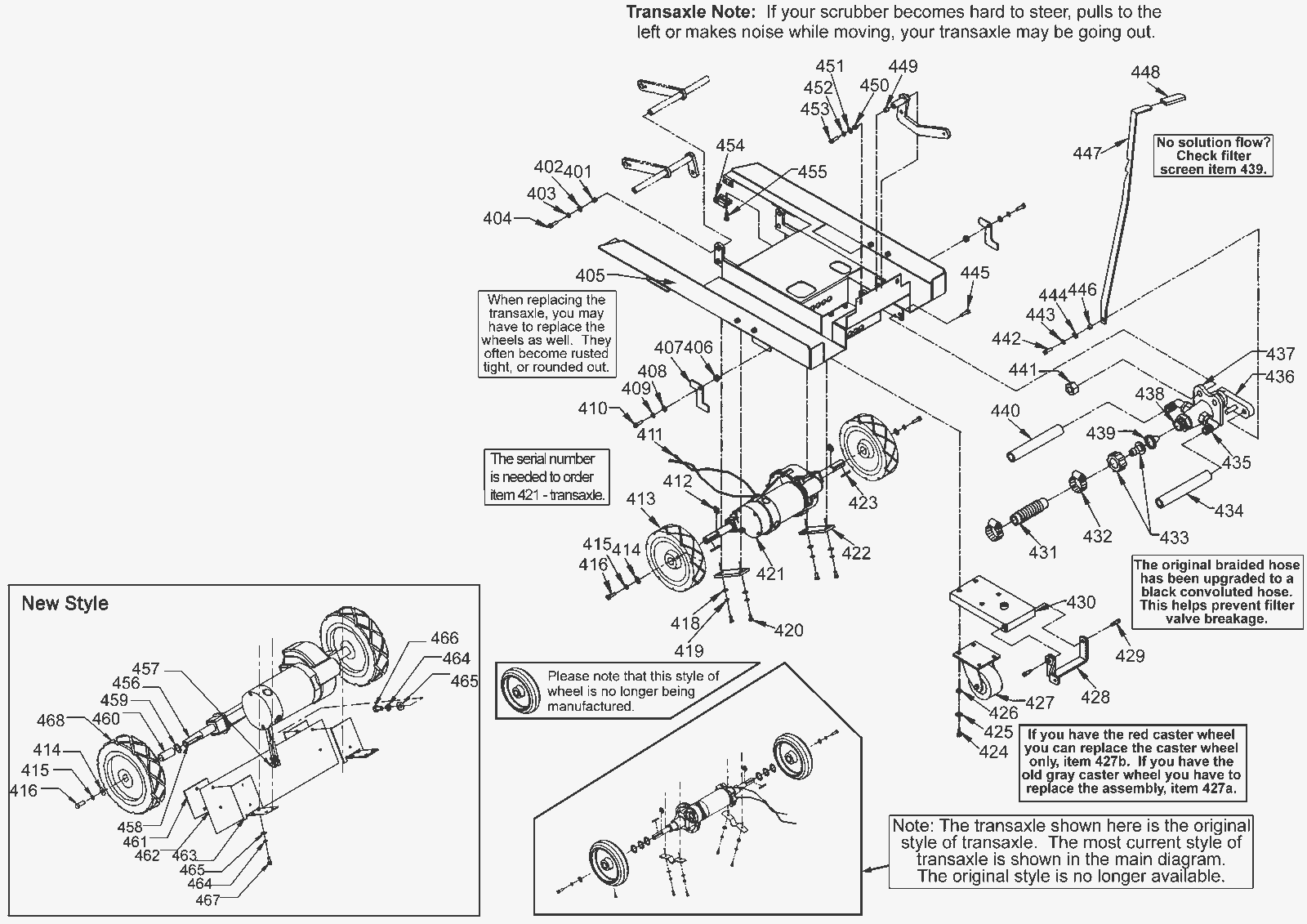

Transaxle and Frame Assembly

#PartDescription ReqNotesAvailability
401 164-0130 Bushing 4
402 999-0114 Washer 1/2 SAE flat 4
403 999-0126 Washer 1/2 split lock 4
404 999-0116 Bolt 1/2-13 x 1 1/2 hex head grade 5 4
405 164-0846 Frame assembly 1
406 164-0161 Skirt latch pin 2
407 164-0162 Skirt latch 2
408 999-0016 Washer 1/4 flat plain finish 2
409 999-0060 Washer 1/4 split lock plain finish 2
410 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
411 998-0001 1/4 spade male terminal 10-12 gauge 2
412 164-1007 Rubber handle grip (black) 2
413 164-0058 Drive wheel 2 This wheel is used if customer has not replaced their transaxle since 01/2012
414 999-0033 Washer 7/16 SAE flat 2
415 999-0034 Washer 3/8 split lock plain finish 2
416a 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 2 (Wrangler 26)
416b 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated 2 (Wrangler 2625)
418 999-0016 Washer 1/4 flat plain finish 4
419 999-0060 Washer 1/4 split lock plain finish 4
420 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 4
421a 164-0847 24 inch transaxle assembly (old style)(OBSOLETE) 1 (before 2.4.00) (includes 421c thru 421j)
421b 164-8120 Transaxle with wheels kit 1 (after 2.4.00) (includes 421c thru 421j)
421c 164-1523 Motor 1
421d 164-1524 Rubber grommet 2
421e 164-1007 Rubber handle grip (black) 2
421f N/A Not available 4 (Bevel gear)
421g N/A Not available 1 (Magnet and housing)
421h 164-1528 Carbon brush 4
421i 164-1529 Brush holder 4
421j 164-1530 Anti-seize lubricant 1 (for axles)
422 164-1188 Transaxle bracket 2 (new style)
423 164-0059 Square keyway 2
424 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
425 999-0034 Washer 3/8 split lock plain finish 4
426 999-0033 Washer 7/16 SAE flat 4
427a 991-2006 Caster wheel assembly (red) 1 (includes 427b)
427b 991-2008 4 inch caster wheel with bearings (red) 1
428 164-0852 Squeegee lifting bracket 1
429 999-0338 Screw 1/4-20 x 1/2 socket head shoulder 2
430 164-0853 Squeegee pivot bracket 1
431 164-1107 6 1/2 inch convoluted tubing 1
432 997-2002 Hose clamp #6 2
433 164-0182 Hose barb and collar 1
434 991-1401 Clear vinyl tubing (sold by the inch) 44 in
435 164-0187 90 degree elbow barb 2
436 164-0619 Valve lever 1
437a 164-0077 Solution valve assembly with fittings and lever 1 (includes 437b)
437b 164-0618 Solution valve 1
438 164-0083 Valve filter fitting 1
439 164-0065 Filter screen 1
440 991-1401 Clear vinyl tubing (sold by the inch) 49 in
441 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
442 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 2
443 999-0060 Washer 1/4 split lock plain finish 1
444 999-0016 Washer 1/4 flat plain finish 1
445 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 1
446 164-0136 Bushing 1
447 164-0190 Solution valve lever 1
448 164-0285 Valve lever grip 1
449 164-0841 Bushing 1
450 164-0130 Bushing 1
451 999-0114 Washer 1/2 SAE flat 1
452 999-0126 Washer 1/2 split lock 1
453 999-0116 Bolt 1/2-13 x 1 1/2 hex head grade 5 1
454 991-9284 50amp charger plug SB50 with pins (red) 2
455 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated 4
456a 164-8120 Transaxle with wheels kit 1 (new style) (includes rubber grommet, 456b-467, 414-415, and 416b)
456b 164-8169 Alloyaxles 1 (includes 457c-458)
456c 164-8170 Brush kit 1
457 998-0001 1/4 spade male terminal 10-12 gauge 1
458 164-8172 Square keyway 2
459 999-0863 Washer 3/4 x 14 gauge narrow bushing 2
460 164-9160 Axle sleeve 2
461 164-9161 Transaxle flap bracket 2
462 164-9162 Transaxle flap 1
463 164-9163 Transaxle bracket 2
464 999-0060 Washer 1/4 split lock plain finish 8
465 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
466 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 4
467 999-1103 Bolt 1/4-20 x 3/4 hex head with nylon patch 4
468 164-8173 Drive wheel 2 This wheel is only used if the customer has replaced their transaxle since 01/2012.
N/S 164-1184 Transaxle axle clamp 2
