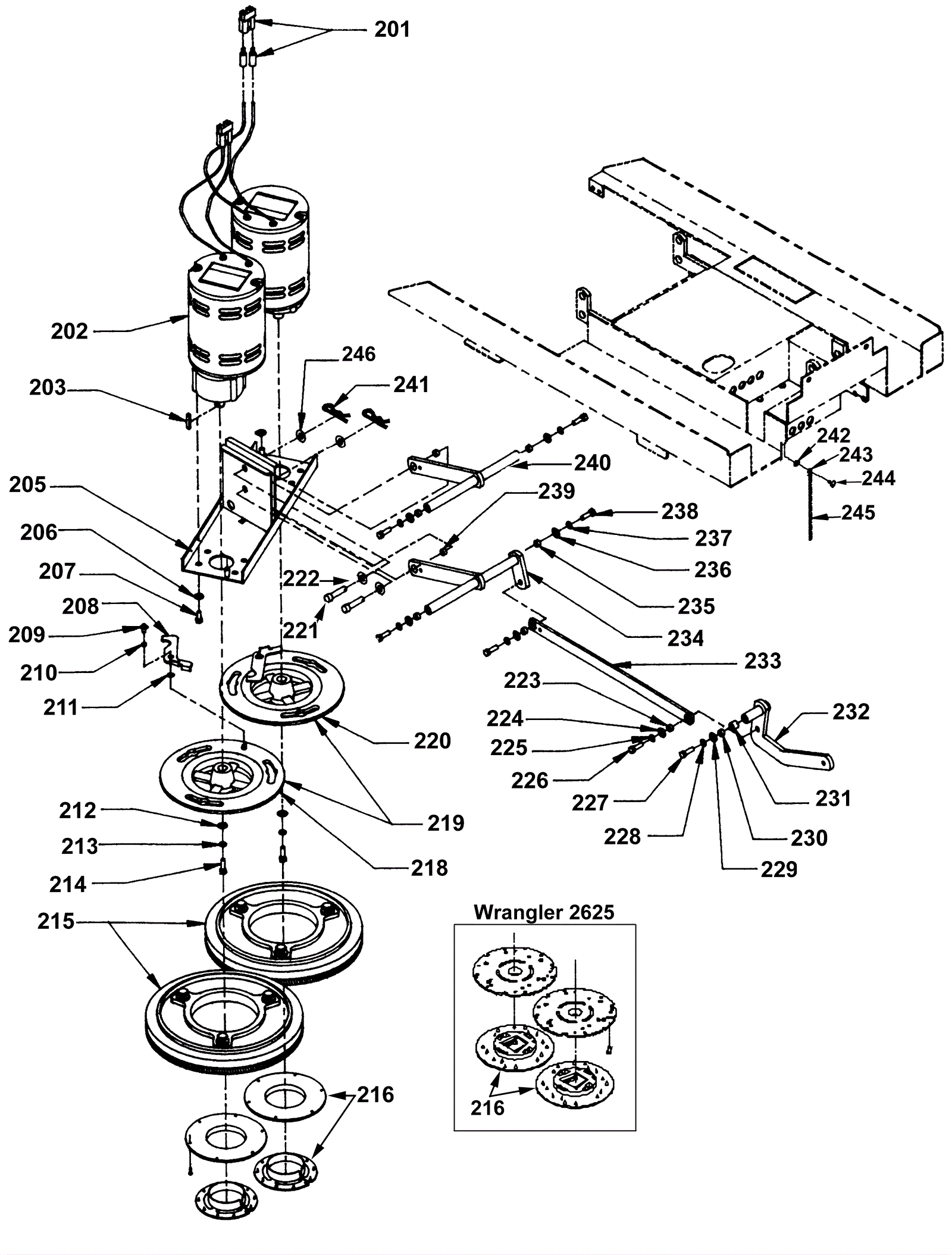

| # | Part | Description |
Req | Notes | Availability |
|---|
201 |
991-9284
|
50amp charger plug SB50 with pins (red) |
2 |
|
|
202a |
164-0835
|
24V brush gear motor assembly |
2 |
(OEM) (Wrangler 26) |
|
202b |
164-7932
|
24V brush gear motor assembly |
2 |
(OEM) (Wrangler 2625) |
|
202c |
991-2121
|
24V .75HP brush motor assembly with gear box |
1 |
(NON-OEM) (Wrangler 26 and 2625) |
|
203 |
164-0132
|
Square keyway 1/4 x 1/4 |
2 |
|
|
205 |
164-0837
|
Brush motor mount |
1 |
|
|
206 |
999-0034
|
Washer 3/8 split lock plain finish |
8 |
|
|
207 |
999-0119
|
Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated |
8 |
|
|
208 |
164-0135
|
Latch |
2 |
|
|
209 |
999-0557
|
Screw 1/4-20 x 1/2 truss head slotted stainless steel |
2 |
|
|
210 |
164-0136
|
Bushing |
2 |
|
|
211 |
164-0137
|
Washer 3/8 spring (pkg of 5) |
2 |
|
|
212 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
213 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
214 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
|
215a |
996-3064
|
12 inch value daily cleaning brush assembly (OBSOLETE) |
2 |
(Wrangler 26) |
|
215b |
996-1591
|
12 inch lite grit scrubbing brush - 500 grit |
2 |
(Wrangler 26) |
|
215c |
996-1593
|
12 inch medium grit scrubbing brush - 180 grit |
2 |
(Wrangler 26) |
|
215d |
996-1592
|
12 inch heavy grit stripping brush - 80 grit |
2 |
(Wrangler 26) |
|
215e |
996-0681
|
Nylo-grit brush |
2 |
(Wrangler 26) |
|
215f |
996-1595
|
12 inch Pad driver |
2 |
(Wrangler 26) |
|
216a |
991-2202
|
Big mouth pad holder set (blue) |
2 |
(Wrangler 26) |
|
216b |
991-2206
|
Center-Lok 3 pad holder |
2 |
(Wrangler 2625) |
|
216c |
999-0013
|
Screw 10 x 5/8 pan head phillips sheet metal |
3 |
(Wrangler 2625) |
|
216d |
991-2201
|
Center-Lok II pad holder - right hand thread (black) |
2 |
(NON-OEM) |
|
216e |
991-2205
|
Deep lock ring and pad grip ring |
2 |
(NON-OEM) |
|
216f |
991-2214
|
Center-Lok II pad holder - left hand thread (red) |
2 |
(NON-OEM) |
|
218 |
164-0494
|
Left brush drive assembly |
1 |
(includes 208-214, 219) |
|
219 |
164-0492
|
Drive plate |
2 |
|
|
220 |
164-0493
|
Right brush drive assembly |
1 |
(includes 208-214, 219) |
|
221 |
164-1158
|
Clevis pin |
2 |
|
|
222 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
223 |
164-0234
|
Bushing |
2 |
|
|
224 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
225 |
999-0560
|
Washer 1/2 lock stainless steel |
2 |
|
|
226 |
999-0561
|
Bolt 1/2-13 x 1 hex head stainless steel |
2 |
|
|
227 |
999-0558
|
Bolt 1/2-13 x 1 1/2 hex head stainless steel |
1 |
|
|
228 |
999-0560
|
Washer 1/2 lock stainless steel |
1 |
|
|
229 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
1 |
|
|
230 |
164-0130
|
Bushing |
1 |
|
|
231 |
164-0841
|
Bushing |
1 |
|
|
232 |
164-0842
|
Rear brush lift arm |
1 |
|
|
233 |
164-0843
|
Brush lift bar |
1 |
|
|
234 |
164-0844
|
Front brush lift arm |
1 |
|
|
235 |
164-0130
|
Bushing |
4 |
|
|
236 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
|
237 |
999-0560
|
Washer 1/2 lock stainless steel |
4 |
|
|
238 |
999-0558
|
Bolt 1/2-13 x 1 1/2 hex head stainless steel |
4 |
|
|
239 |
164-0130
|
Bushing |
2 |
|
|
240 |
164-0845
|
Brush lifting guide |
1 |
|
|
241 |
164-0263
|
Cotter pin |
2 |
|
|
242 |
999-0311
|
Washer #10 external star lock zinc plated |
1 |
(Wrangler 2625) |
|
243 |
164-1502
|
End coupling |
1 |
(Wrangler 2625) |
|
244 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
1 |
(Wrangler 2625) |
|
245 |
164-1503
|
8 inch round bead chain |
1 |
(Wrangler 2625) |
|
246 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
