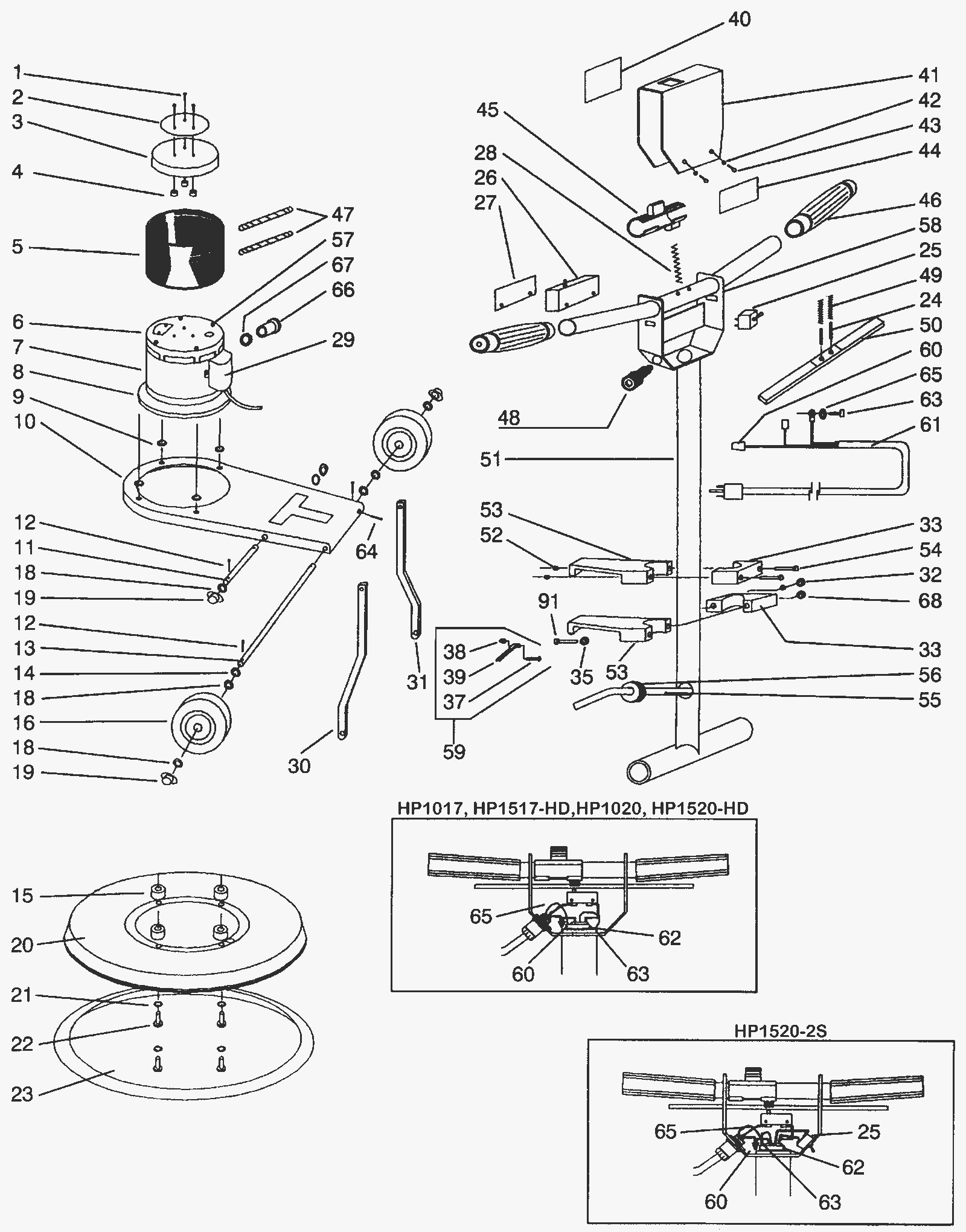

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0554
|
Screw 10-24 x 1/2 flat head slotted stainless steel |
3 |
|
|
2 |
163-0082
|
6 1/2 inch round decal |
1 |
|
|
3 |
163-0083
|
Drip motor cover |
1 |
|
|
4a |
163-0084
|
Drip cover spacer |
3 |
(HP1017, HP1020, HP1520-2S) |
|
4b |
163-0170
|
Drip cover spacer |
3 |
(HP1517HD, HP1520HD) |
|
5 |
163-0060
|
Motor cover screen |
1 |
(HPP1520-2S) |
|
6a |
163-0171
|
115V 1HP motor |
1 |
(HP1017, HP1020) |
|
6b |
163-0085
|
115V 60amp 1HP motor and gear assembly |
1 |
(HP1520-2S) |
|
6c |
163-0172
|
115V 60amp 1.5HP motor and gear assembly |
1 |
(HP1517HD, HP1520HD) |
|
7a |
163-0173
|
115V 60amp 1HP motor (black) |
1 |
(HP1017, HP1020) |
|
7b |
163-0174
|
115V 60amp 1.5HP motor (black) |
1 |
(HP1517HD, HP1520HD) |
|
8a |
163-0175
|
2 idler gear assembly (black) |
1 |
(HP1017, HP1020) |
|
8b |
163-0176
|
3 idler gear assembly (black) |
1 |
(HP1517HD, HP1520HD) |
|
9 |
999-0105
|
Washer 5/16 external star lock zinc plated |
4 |
|
|
10 |
163-0024
|
Frame |
1 |
|
|
11 |
163-0086
|
Handle shaft |
1 |
|
|
12 |
163-0050
|
Cotter pin |
4 |
|
|
13 |
163-0290
|
Wheel axle kit with hardware |
1 |
|
|
14 |
163-0051
|
Spring washer |
2 |
|
|
15 |
163-0087
|
Spacer |
4 |
|
|
16 |
163-0287
|
Wheel kit (2 wheels with hardware) |
2 |
(Includes (2) wheels, (1) 163-0080 cotter pin, (2) 163-0050 cotter pin, (2) 163-0027 push nuts, (4) 163-0050 spring washers, and (10) 163-0052 washers.) |
|
18 |
163-0052
|
Washer 7/8 steel (pkg of 5) |
12 |
|
|
19 |
163-0042
|
Cone seal (OBSOLETE) |
4 |
|
|
20a |
163-0851
|
17 inch brush cover kit (red) |
1 |
(HP1017, HP1517HD) |
|
20b |
163-0088
|
20 inch brush cover |
1 |
(HP1020, HP1520HD, HP1520-2S) |
|
21 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
4 |
|
|
22 |
163-0089
|
Screw 5/16 x 2 socket head |
4 |
|
|
23a |
163-0178
|
17 inch bumper (black) |
1 |
(HP1017, HP1517HD) |
|
23b |
163-0090
|
20 inch bumper (black) |
1 |
(HP1020, HP1520HD, HP1520-2S) |
|
24 |
163-0091
|
Roll pin (pkg of 6) |
2 |
|
|
25 |
163-0057
|
High/low switch |
1 |
(HP1520-2S) |
|
26 |
163-0054
|
On/off switch kit |
1 |
|
|
27 |
163-0092
|
Switch insulation |
1 |
|
|
28 |
163-0867
|
Extension spring (pkg of 6) |
1 |
|
|
29 |
163-0159
|
Start capacitor |
1 |
(HP1017, HP1020) |
|
30 |
163-0026
|
Connecting leg kit |
1 |
(includes 2 connecting legs, 4 spring washers, and 8 regular washers) |
|
31 |
163-0026
|
Connecting leg kit |
1 |
(includes 2 connecting legs, 4 spring washers, and 8 regular washers) |
|
32 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
|
33 |
163-0365
|
Handle locking clamp kit |
1 |
(No longer available alone, now must purchase this kit.) |
|
35 |
999-0032
|
Washer 3/8 USS flat plain finish |
3 |
|
|
37 |
163-0097
|
Rivet 5/16 x 1 1/4 long round head |
1 |
|
|
38 |
163-0098
|
Nut 5/16 push |
1 |
|
|
39 |
163-0077
|
Cam lock assembly |
1 |
|
|
40 |
163-0100
|
Switch box decal |
1 |
|
|
41 |
163-0101
|
Switch box cover assembly |
1 |
|
|
42 |
999-0053
|
Washer #10 split lock plain finish |
3 |
|
|
43 |
999-0554
|
Screw 10-24 x 1/2 flat head slotted stainless steel |
2 |
|
|
44 |
163-0102
|
Warning decal |
1 |
|
|
45 |
163-0065
|
Safety switch kit |
1 |
|
|
46 |
163-0066
|
Handle grip (black) (pkg of 2) |
2 |
|
|
47 |
163-0067
|
Clamp spring |
2 |
(HP1520-2S) |
|
48a |
163-0376
|
Strain relief assembly |
1 |
|
|
48b |
163-0069
|
Strain relief nut |
1 |
|
|
49 |
163-0070
|
Trigger spring |
2 |
|
|
50 |
163-0071
|
Trigger |
1 |
|
|
51 |
163-0072
|
Complete handle assembly |
1 |
|
|
52 |
999-0635
|
Nut 3/8-16 hex stainless steel |
2 |
|
|
53 |
163-0365
|
Handle locking clamp kit |
1 |
(No longer available alone, now must purchase this kit.) |
|
54 |
999-0505
|
Screw 3/8-16 x 2 flat head socket zinc plated |
3 |
|
|
55 |
163-0074
|
Interconnect cord |
1 |
(HP1520-2S) |
|
56 |
163-0075
|
Grommet |
1 |
|
|
57 |
N/A
|
Not available |
4 |
(Screw) (HP1017, HP1017HD, 1HP1020, HP1520HD) |
|
58 |
163-0076
|
Handle assembly |
1 |
|
|
59 |
163-0077
|
Cam lock assembly |
1 |
(includes 37, 38, 39) |
|
60 |
163-0078
|
Wire nut |
1 |
|
|
61a |
163-0055
|
12/3 power cord 50 foot w/ pigtail |
1 |
(OEM) |
|
61b |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
|
62a |
163-0180
|
Power cord clamp |
1 |
(HP1017, HP1517HD, HP1020, HP1520HD) |
|
62b |
163-0079
|
Power cord clamp |
1 |
(HP1520-2S) |
|
62c |
991-5001
|
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
63 |
999-0554
|
Screw 10-24 x 1/2 flat head slotted stainless steel |
2 |
|
|
64 |
163-0080
|
Cotter pin |
1 |
|
|
65 |
999-0053
|
Washer #10 split lock plain finish |
1 |
|
|
66 |
163-0081
|
Strain relief |
1 |
(HP1520-2S) |
|
67 |
163-0069
|
Strain relief nut |
1 |
(HP1520-2S) |
|
68 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
|
91 |
999-0041
|
Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated |
1 |
|
|
N/S |
163-0095
|
Washer hardened slotted (pkg of 5) |
1 |
|
|
N/S |
163-0096
|
Clamp stud (pkg of 5) |
1 |
|
|
N/S |
163-0328
|
Solution tank assembly |
1 |
|
|
