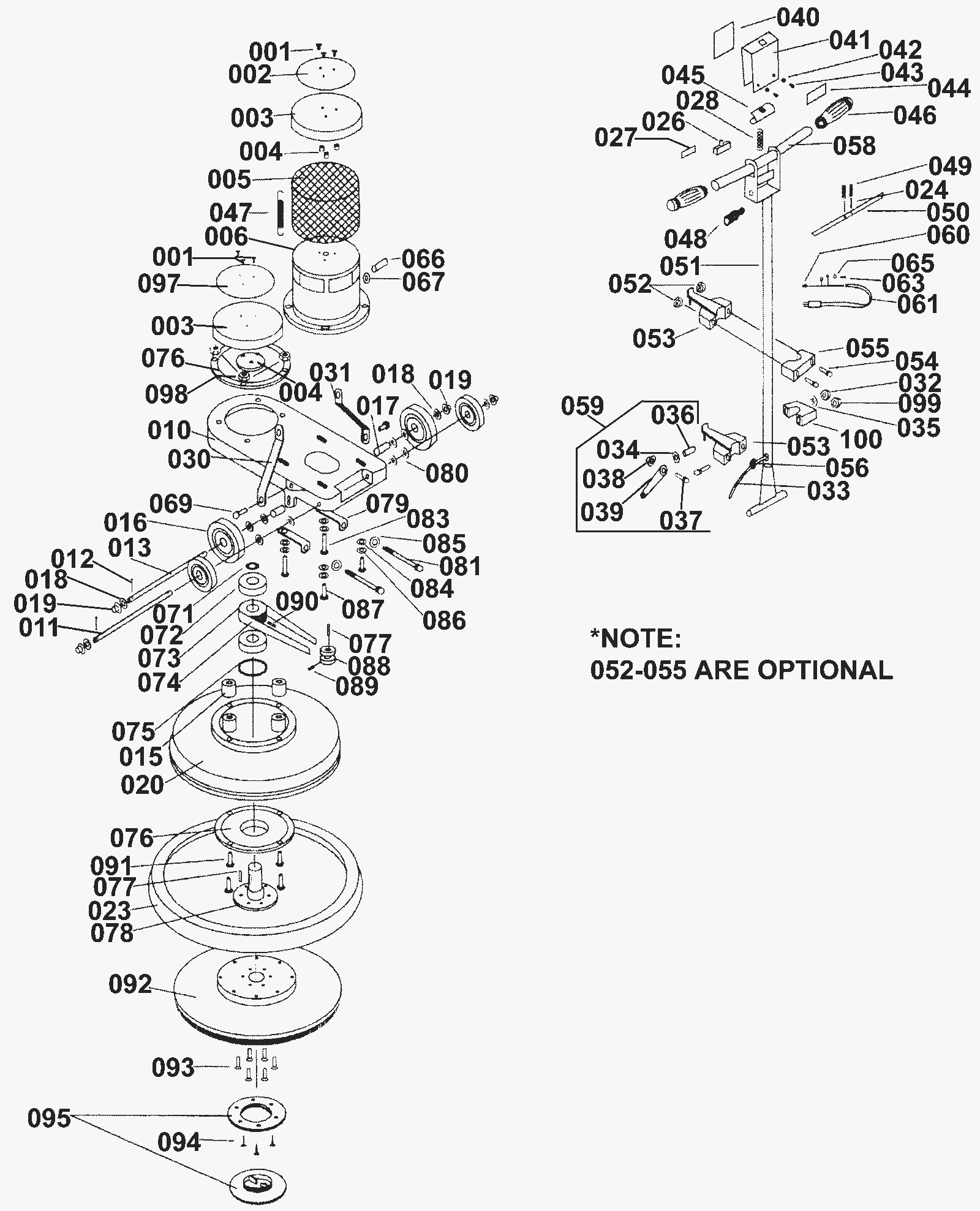

Entire Assembly

#PartDescription ReqNotesAvailability
001 999-0554 Screw 10-24 x 1/2 flat head slotted stainless steel 3
002 163-0082 6 1/2 inch round decal 1
003 163-0083 Drip motor cover 1
004 163-0084 Drip cover spacer 3
005 163-0060 Motor cover screen 1
006a 163-0059 1.5HP motor kit 1 (Includes 006b)
006b 163-0405 Carbon brush (pkg of 4) 1
010 163-0368 Frame 1
011 163-0369 Handle shaft 1
012 163-0050 Cotter pin 4
013 163-0369 Handle shaft 1
015 163-0087 Spacer 4
016a 163-0388 Operating wheel and axle kit (pkg of 2) 1
016b 163-0389 Transport wheel and axle kit 1
017 163-0182 Spacer 2
018 163-0052 Washer 7/8 steel (pkg of 5) 12
019 163-0027 Push nut 4
020 163-0088 20 inch brush cover 1
023 163-0090 20 inch bumper (black) 1
024 163-0091 Roll pin (pkg of 6) 2
026 163-0054 On/off switch kit 1
027 163-0092 Switch insulation 1
028 163-0867 Extension spring (pkg of 6) 1
030 163-0286 Connecting leg kit with hardware (kit now includes both sides) (left)
031 163-0286 Connecting leg kit with hardware (kit now includes both sides) (right)
033 163-0184 Interconnect cord 1
034 163-0095 Washer hardened slotted (pkg of 5) 1
035 999-0032 Washer 3/8 USS flat plain finish 3
036 163-0096 Clamp stud (pkg of 5) 1
037 163-0097 Rivet 5/16 x 1 1/4 long round head 1
038 163-0098 Nut 5/16 push 1
039 163-0077 Cam lock assembly 1
040 163-0100 Switch box decal 1
041 163-0101 Switch box cover assembly 1
042 999-0053 Washer #10 split lock plain finish 3
043 999-0554 Screw 10-24 x 1/2 flat head slotted stainless steel 2
044 163-0102 Warning decal 1
045 163-0065 Safety switch kit 1
046 163-0066 Handle grip (black) (pkg of 2) 2
047 163-0067 Clamp spring 2
048 163-0376 Strain relief assembly 1
049 163-0070 Trigger spring 2
050 163-0071 Trigger 1
051 163-0072 Complete handle assembly 1
052 999-0635 Nut 3/8-16 hex stainless steel 2
053 163-0365 Handle locking clamp kit 1
055 163-0184 Interconnect cord 1
056 163-0075 Grommet 1
058 163-0076 Handle assembly 1
059 163-0077 Cam lock assembly 1
060 163-0078 Wire nut 1
061a 163-0055 12/3 power cord 50 foot w/ pigtail 1
061b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
062 163-0180 Power cord clamp 1
063 999-0554 Screw 10-24 x 1/2 flat head slotted stainless steel 2
064 163-0080 Cotter pin 1
065 999-0053 Washer #10 split lock plain finish 1
066 163-0081 Strain relief 1
067 163-0069 Strain relief nut 1
068 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 4
072 163-0364 Bearing, pulley housing and shaft kit 1
076 163-0189 Bearing housing 2
078 163-0191 Drive shaft 1
079 163-0192 Belt adjustment bracket 2
080 163-0052 Washer 7/8 steel (pkg of 5) 8
081 163-0115 Bolt 1/4-20 x 3 inch 2
082 999-0347 Screw 1/4-20 x 1/2 cup point socket set plain finish 2
083 163-0194 Bolt 3/8-16 x 7/8 2
084 163-0370 Lock washer (pkg of 5) 4
085 999-0060 Washer 1/4 split lock plain finish 2
086 163-0167 Flat washer 4
087 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
088 163-0185 Pulley 1 (only on HP1520-HSB)
089 163-0197 Screw 5/16-18 x 3/8 set 2
090 999-0347 Screw 1/4-20 x 1/2 cup point socket set plain finish 1
091 999-0041 Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated 4
092 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 4
093 163-0198 Flexible pad driver 1
094 163-0200 Screw #8 x 3/4 pan head sheet metal (pkg of 5) 3
095 991-2206 Center-Lok 3 pad holder 1
100 163-0365 Handle locking clamp kit (No longer available alone, now must purchase this kit.)
N/S 163-0324 Rectifier
N/S 991-5001 14/3 extension cord 50 foot (yellow) (NON-OEM)
N/S 991-5005 14/3 replacement power cord 50 foot (yellow) (NON-OEM)
