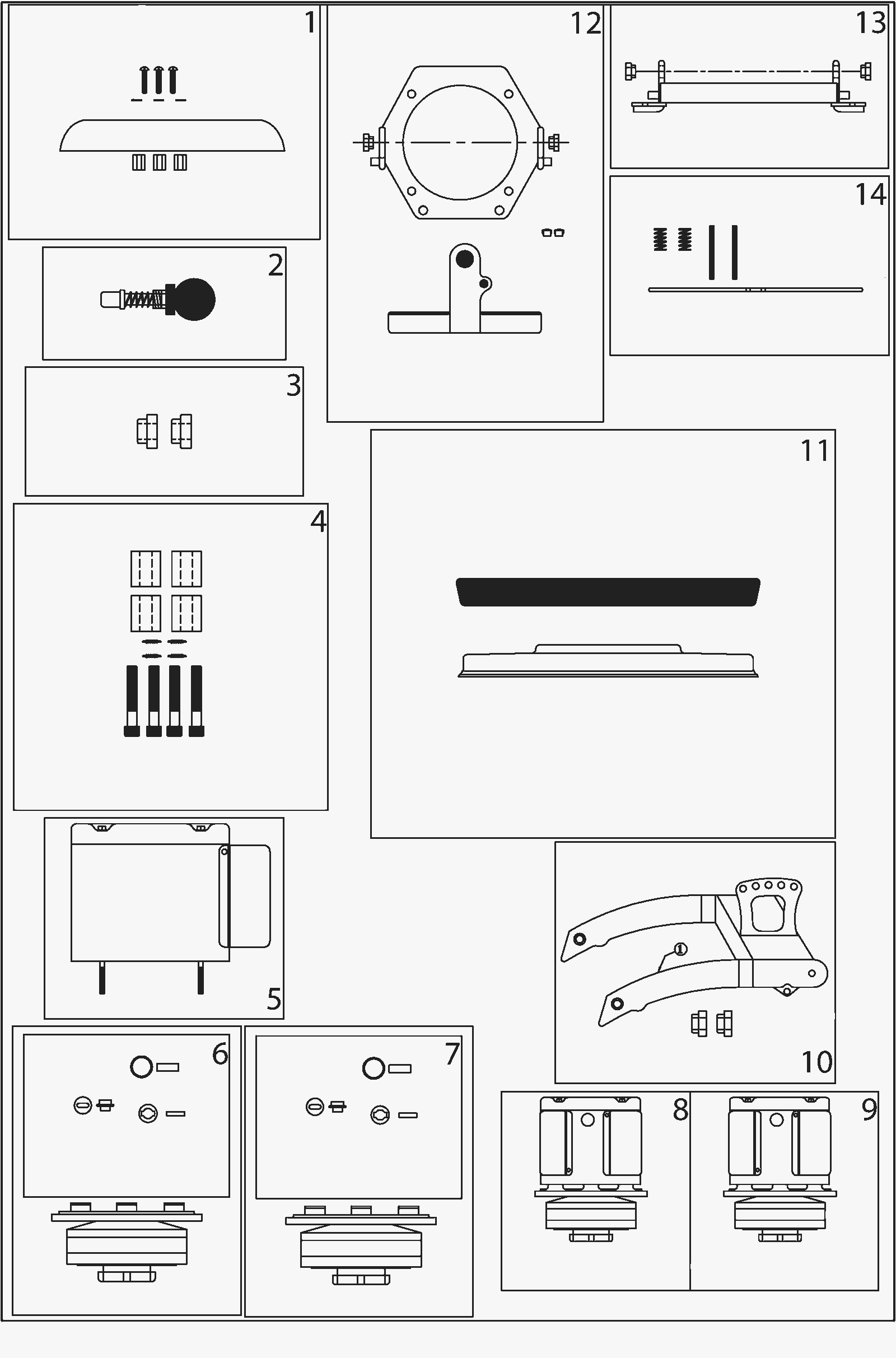

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
163-0407
|
Motor cover |
|
|
|
1b |
163-0764
|
Motor cover (black) |
|
|
|
1c |
163-0765
|
Motor cover (red) (OBSOLETE) |
|
|
|
1d |
163-0766
|
Motor cover (cream) (OBSOLETE) |
|
|
|
1e |
163-0767
|
Motor cover (garnet) (OBSOLETE) |
|
|
|
1f |
163-0768
|
Motor cover (green) (OBSOLETE) |
|
|
|
1g |
163-0769
|
Motor cover (silver) (OBSOLETE) |
|
|
|
1h |
163-0770
|
Motor cover (light blue) (OBSOLETE) |
|
|
|
1i |
163-0771
|
Motor cover (orange) (OBSOLETE) |
|
|
|
1j |
163-0772
|
Motor cover (royal blue) (OBSOLETE) |
|
|
|
1k |
163-0773
|
Motor cover (teal) (OBSOLETE) |
|
|
|
1l |
163-0774
|
Motor cover (yellow) (OBSOLETE) |
|
|
|
2 |
163-0775
|
Spring knob assembly |
|
|
|
3 |
163-0776
|
Bushing kit (pkg of 2) |
|
(wheels down units) |
|
4 |
163-0777
|
Brush cover mounting kit |
|
(standard unit) |
|
5 |
163-0778
|
1.5hp motor assembly |
|
|
|
6a |
163-0779
|
Coupler kit |
|
(xhd gearbox) |
|
6b |
163-0780
|
3 idler Xhd gearbox and flange |
|
|
|
7a |
163-0781
|
Coupler kit |
|
(standard gearbox) |
|
7b |
163-0782
|
3 idler gear box and flange |
|
|
|
8 |
163-0783
|
Motor and xhd gear box |
|
(xhd gearbox) |
|
9 |
163-0784
|
Motor and gear box |
|
(standard gearbox) |
|
10 |
163-0785
|
Carriage frame (black) |
|
|
|
11a |
163-0786
|
Brush cover with bumper |
|
|
|
11b |
163-0787
|
Brush cover with bumper (black) |
|
(17 inch) |
|
11d |
163-0789
|
Brush cover with bumper (cream) |
|
(17 inch) |
|
11e |
163-0790
|
Brush cover with bumper (garnet) |
|
(17 inch) |
|
11f |
163-0791
|
Brush cover with bumper (green) |
|
(17 inch) |
|
11g |
163-0792
|
Brush cover with bumper (silver) |
|
(17 inch) |
|
11h |
163-0793
|
Brush cover with bumper (light blue) |
|
(17 inch) |
|
11i |
163-0794
|
Brush cover with bumper (orange) |
|
(17 inch) |
|
11j |
163-0795
|
Brush cover with bumper (royal blue) |
|
(17 inch) |
|
11k |
163-0796
|
Brush cover with bumper (teal) |
|
(17 inch) |
|
11l |
163-0797
|
Brush cover with bumper (yellow) |
|
(17 inch) |
|
11m |
163-0415
|
Brush cover (black) |
|
(20 inch) |
|
11n |
163-0421
|
Brush cover (red) |
|
(20 inch) |
|
11o |
163-0681
|
Brush cover (cream) |
|
(20 inch) |
|
11p |
163-0696
|
Brush cover (garnet) |
|
(20 inch) |
|
11q |
163-0682
|
Brush cover (green) |
|
(20 inch) |
|
11r |
163-0697
|
Brush cover (silver) |
|
(20 inch) |
|
11s |
163-0698
|
Brush cover (light blue) |
|
(20 inch) |
|
11t |
163-0683
|
Brush cover (orange) |
|
(20 inch) |
|
11u |
163-0701
|
Brush cover (royal blue) |
|
(20 inch) |
|
11v |
163-0700
|
Brush cover (teal) |
|
(20 inch) |
|
11w |
163-0702
|
Brush cover (yellow) |
|
(20 inch) |
|
11x |
163-0798
|
Bumper only |
|
(17 inch) |
|
12 |
163-0800
|
Motor mounting frame |
|
|
|
13 |
163-0801
|
Secondary isolator bracket |
|
|
|
14a |
163-0695
|
Trigger kit |
|
|
|
14b |
163-0071
|
Trigger |
|
|
|
14c |
163-0814
|
14 inch trigger replacement kit (silver) |
|
|
|
14d |
163-0815
|
14 inch trigger replacement kit (red) |
|
|
|
N/S |
996-1846
|
19 inch mighty-lok pad driver |
|
|
|
